Browning® 2BK110X 1 7/16 2BK110X 1 7/16

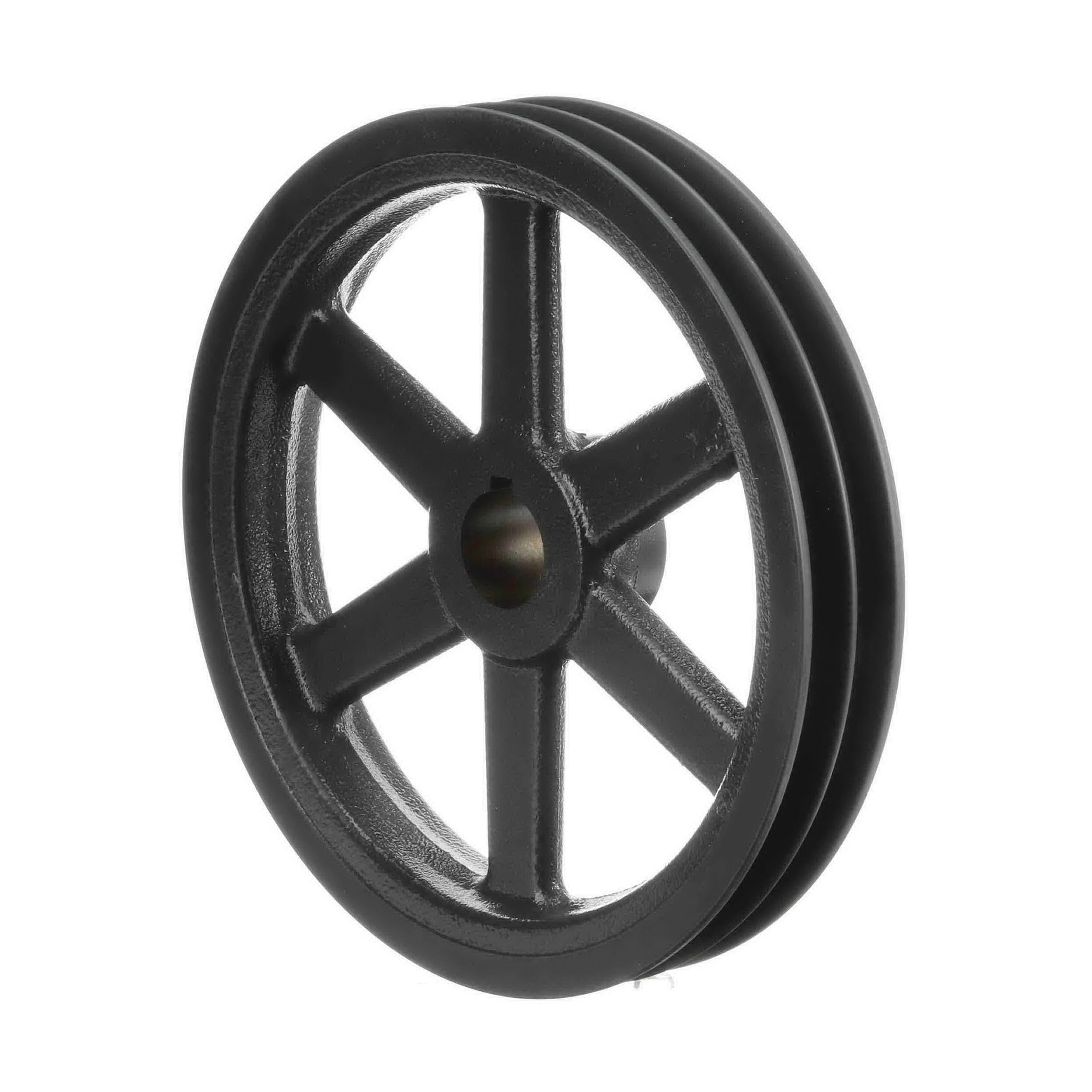

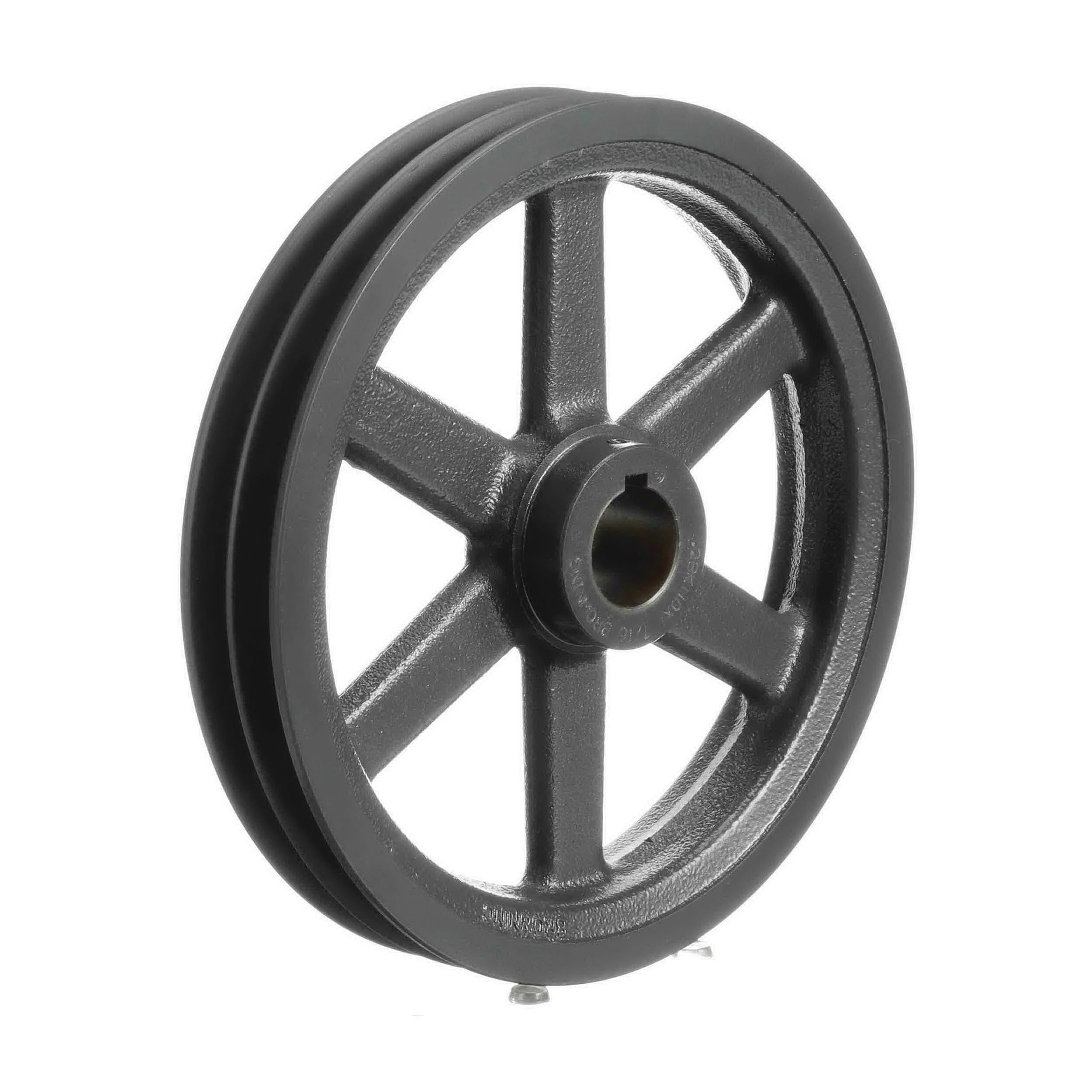

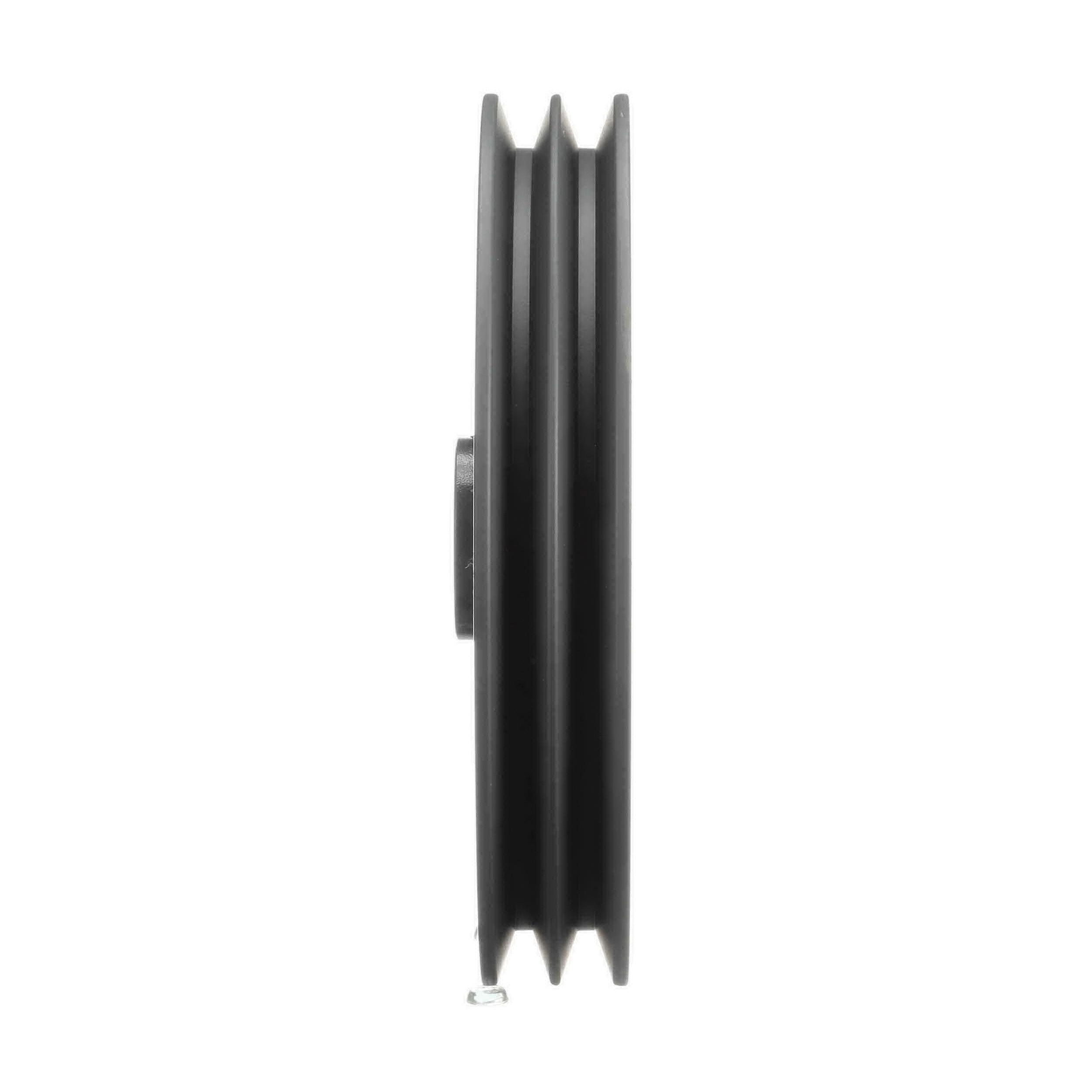

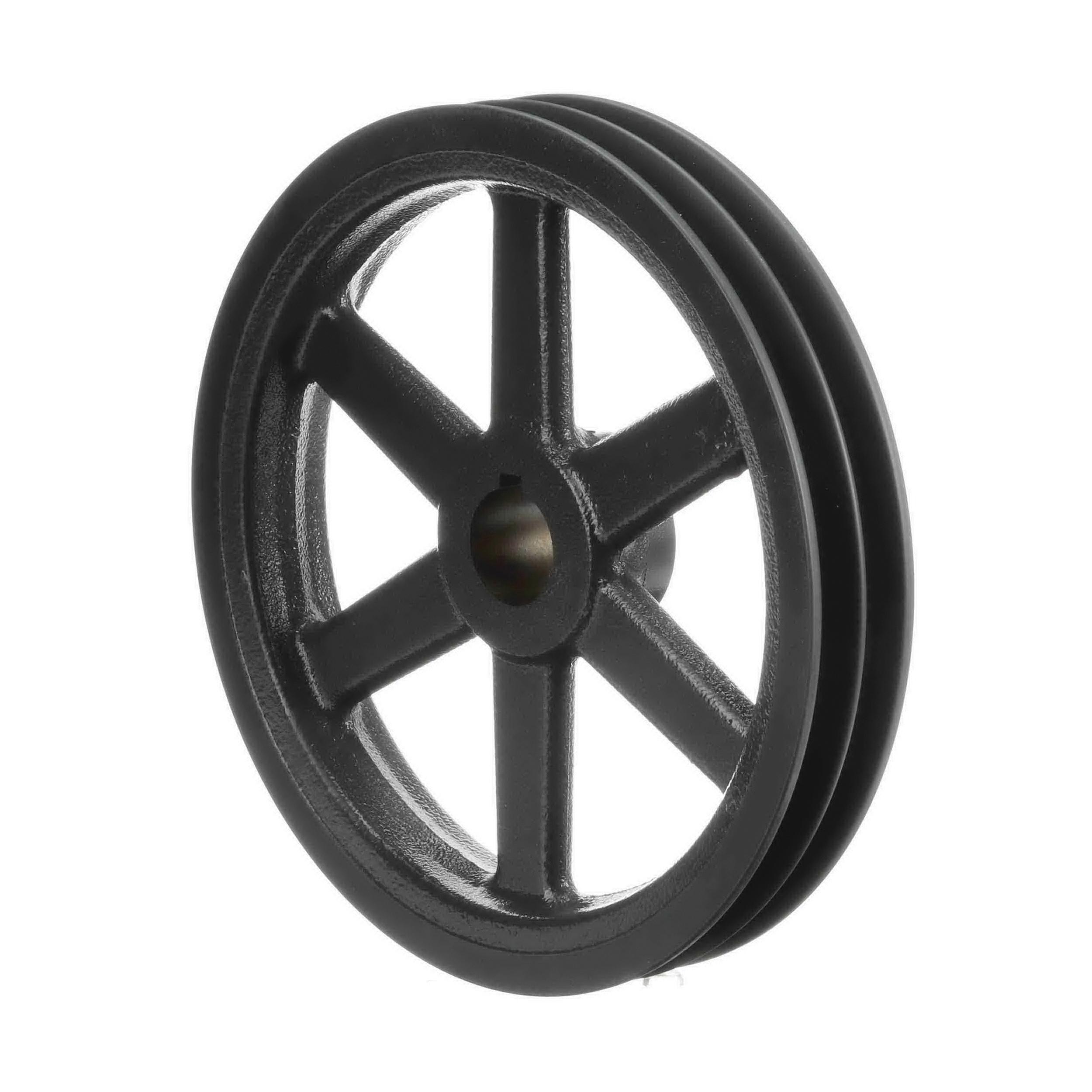

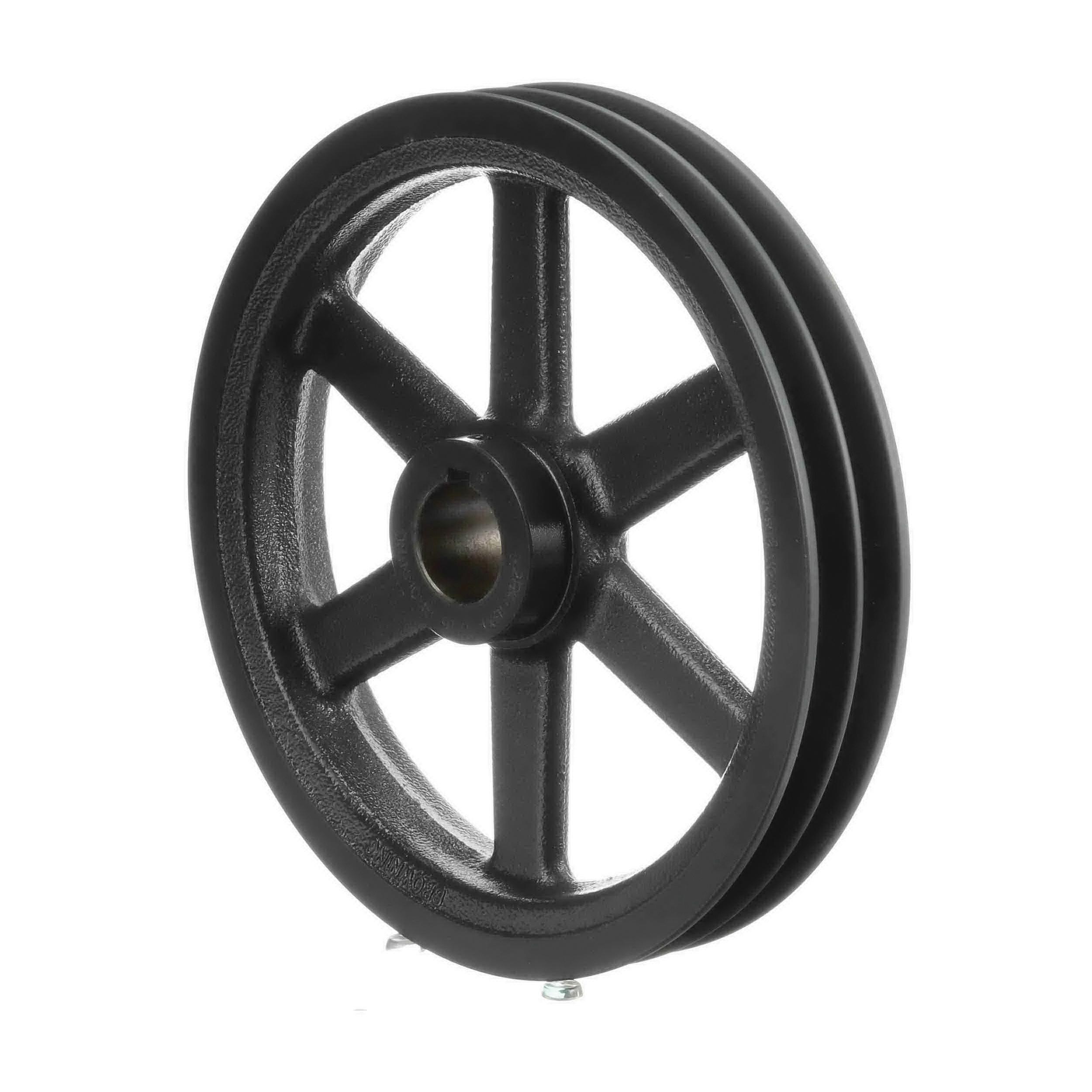

Browning 2BK110X 1 7/16 V-Belt Sheave, 1-7/16 in Dia Bore, Finished Bore, 10-3/4 in OD, 2-Groove, 1-3/4 in W Face

Browning® 2BK110X 1 7/16 V-Belt Sheave, 1-7/16 in Dia Bore, Finished Bore, 10-3/4 in OD, 2 -Groove, 10.7 in Dia Pitch

Browning® 2BK110X 1 7/16 V-Belt Sheave, 1-7/16 in Dia Bore, Finished Bore, 10-3/4 in OD, 2 -Groove, 10.7 in Dia Pitch 2BK110X 1 7/16

Browning® V-Belt Sheave, Finished Bore, 1-7/16 in Bore Diameter, 10-3/4 in OD, 10.7 in Pitch Diameter, 2 Number of Grooves, 1-3/4 in Face Width, 2-3/32 in Overall Length, Iron, For Use With: 4L, 5L, A and B Cross Section Belts

Bore Diameter      :      1-7/16 in
Bore Type      :      Finished
Face Width      :      1-3/4 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      10-3/4 in
Overall Length      :      2-3/32 in
Pitch Diameter      :      10.7 in
Suitable For Use With      :      4L, 5L, A and B Cross Section Belts
  • Largest selection of H bushed sheaves of any other manufacturer, Browning® offers bushed sheaves in both A and B Combination (A/B) configuration
  • Combination groove, all Browning® BK H sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
