Browning® 1046093 1046093

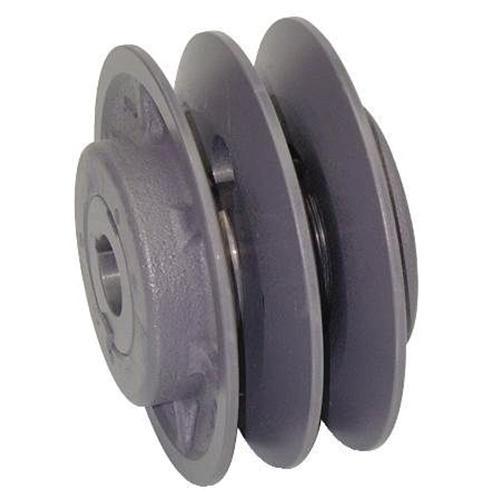

Browning 2VP 1046093 Sheave With Keyway Bore, Finished with Keyway Bore, 1-3/8 in Dia Bore, 1-5/8-2-3/8 in W Face

Browning® 2VP Series 1046093 Sheave With Keyway Bore, Finished with Keyway Bore, 1-3/8 in Dia Bore

Browning® 2VP Series 1046093 Sheave With Keyway Bore, Finished with Keyway Bore, 1-3/8 in Dia Bore 1046093

Browning® Sheave, Series: 2VP Series, Finished with Keyway Bore, 1-3/8 in Bore Diameter, 4L, 5L, 5V, A, B Belt Section Size, 2 Number of Grooves, 4.4 to 5.4 in Pitch Diameter, 3-1/4 in Length Through Bore, 1-5/8 to 2-3/8 in Face Width, 5/16 x 5/32 in Keyway Size, Iron, 5.95 in OD x 3.25 in L

Belt Section Size      :      4L, 5L, 5V, A, B
Bore Diameter      :      1-3/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      5.95 in OD x 3.25 in L
Face Width      :      1-5/8 to 2-3/8 in
Keyway Size      :      5/16 x 5/32 in
Length Through Bore      :      3-1/4 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      4.4 to 5.4 in
Series      :      2VP Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_3001344_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045947_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045541_Manual.pdf
