LS 6121002400 SV0185IS7-4NO

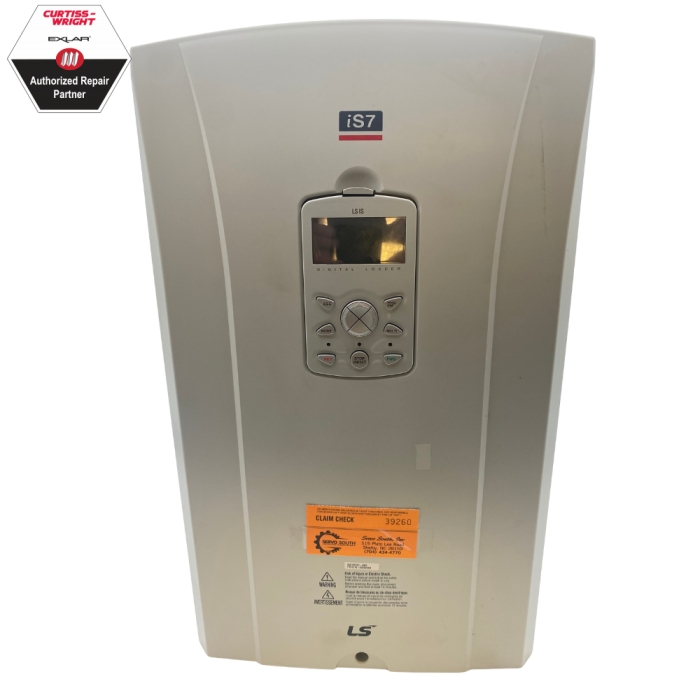

Refurbished LS ELECTRIC SV0185iS7-4NO Variable Frequency Drive

Refurbished LS ELECTRIC iS7 Series 6121002400 Model SV0185iS7-4NO Variable Frequency Drive, 25 HP/18.5 kW Motor Output, 380-480 VAC Input/Output, 35.6A/39A Rated Current, 29.7 kVA Output Capacity

Refurbished LS ELECTRIC iS7 Series 6121002400 Model SV0185iS7-4NO Variable Frequency Drive, 25 HP/18.5 kW Motor Output, 380-480 VAC Input/Output, 35.6A/39A Rated Current, 29.7 kVA Output Capacity 6121002400

LS ELECTRIC iS7 Series Variable Speed Drive

The LS ELECTRIC iS7 sets the world standard for drives (VFDs) because of its features that meet all of your needs in AC drives. The iS7 offers high performance, reliability, precise control, scaleable flexibility through diverse options, and a more convenient user-friendly interface.


LS ELECTRIC's iS7 generates powerful performance through its superior V/F control, V/F PG, slip compensation, and sensorless vector control. The iS7 focuses on a user-friendly interface and environment-friendly features including a wide graphic LCD keypad, user & macro group support, electro-thermal functions for motor protection, and protection for input/output phase loss.

Precision Repairs. Proven Reliability. Industry Expertise.

At Industrial Service Solutions (Servo South), we specialize in keeping your critical automation and control systems running at peak performance. From servo motors to complex electronics, our repair services go beyond OEM standards to deliver long-lasting reliability and value.


Increased productivity demands and constrained supply chains highlight the challenges of maintaining automated manufacturing systems. Ensuring uptime depends on quality components performing to factory specifications. Servo motor repair and industrial electronics service, and rotary actuator repair, are both rapid and cost-effective means of maximizing system performance.


Industrial Service Solutions (Servo South) operates some of the most advanced servo motor repair facilities in North America. Shop and field services include servo motor repair, circuit board repair, AC/DC motor repair, and hydraulics repair for CNC machines and other industrial automation systems. Man-machine interfaces, also known as teach pendants, are also serviced. We are also a factory-authorized Curtiss-Wright Exlar Actuator service and repair provider.

Condition      :      Refurbished/Remanufactured
Enclosure Rating      :      IP20
Input Current (Constant Torque)      :      35.6 Amps
Input Current (Variable Torque)      :      41.1 Amps
Input Frequency      :      50/60 Hz
Input Terminal      :      8 Points
Input Voltage      :      380-480 VAC
Model      :      SV0185IS7-4NO
Motor Output (Constant Torque)      :      25 HP (18.5 kW)
Motor Output (Variable Torque)      :      30 HP (22 kW)
Output Capacity      :      29.7 kVA
Output Current (Constant Torque)      :      39 Amps
Output Current (Variable Torque)      :      45 Amps
Output Frequency      :      0-400 Hz
Output Terminal      :      2 Points (Relay), 1 Point (Open Collector)
Output Voltage      :      380-480 VAC
Phase      :      3-Phase
Series      :      iS7 Series
  • Constant Torque (Heavy Duty) and Variable Torque (Normal Duty) dual rating
  • Selectable V/F, V/F PG, sensorless vector, sensored vector
  • High performances and functions
  • Easy to control: Easy Start Mode, User and Macro group, Multi Function Key
  • Available IP54 enclosure as built-in option
  • Built-in RS485 (LS Bus / Modbus RTU) communication
  • Wide graphic LCD keypad (6 different languages)
  • pdfProduct Data Sheet https://www.eindustrialsolutions.com//ASSETS/DOCUMENTS/ITEMS/EN/LS_SV0185iS7-4NO_Datasheet.pdf
