Acme Cryogenics 540-123-15 Integral Flange Fixed End Assembly With Tongue

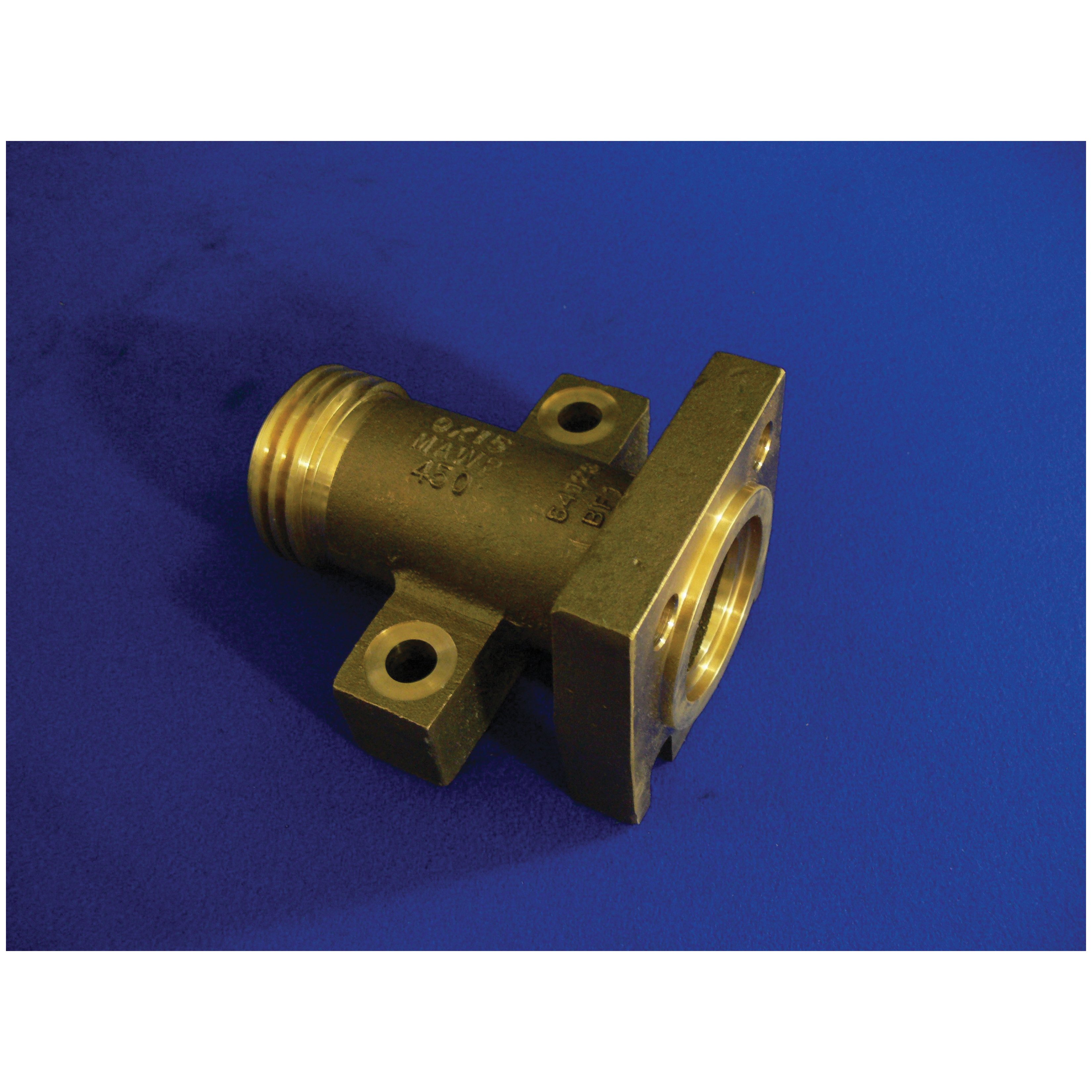

ACME CRYOGENICS® 540-123-15 Integral Flange Fixed End Assembly With Tongue, 1-1/2 in, CGA x 4-Bolt Flange Connection

ACME CRYOGENICS® 540-123-15 Integral Flange Fixed End Assembly With Tongue, 1-1/2 in, CGA x 4-Bolt Flange Connection 540-123-15

Acme offers a wide array of cryogenic liquid transfer connections for LIN/LOX/LAR, CO2, Nitrous Oxide and LNG which are designed for safe and reliable cryogenic liquid transfer, fully compliant with CGA V6. Acme carries the world's largest inventory of liquid transfer fittings.
ACME CRYOGENICS® Integral Flange Fixed End Assembly, Fixed End Assembly Fitting, 1-1/2 in Fitting, CGA x 4-Bolt Flange Connection, Cast Method of Manufacture, Bronze, 2-1/2 in ID, 6-1/8 in W Dimensions, Oxygen Service, 2-1/2-4 Stub Thread Size

Additional Information      :      2-1/2-4 Stub Thread Size
Connection Type      :      CGA x 4-Bolt Flange
Dimensions      :      6-1/8 in W
Fitting Size      :      1-1/2 in
Fitting Type      :      Fixed End
Inside Diameter      :      2-1/2 in
Liquid Service      :      Oxygen Service
Material      :      Bronze
Method of Manufacture      :      Cast
  • Designed for safe and reliable cryogenic liquid transfer
  • Easier and quicker for operators and drivers to connect and disconnect
