ACME CRYOGENICS® ASK-40-0148S ASK-40-0148S

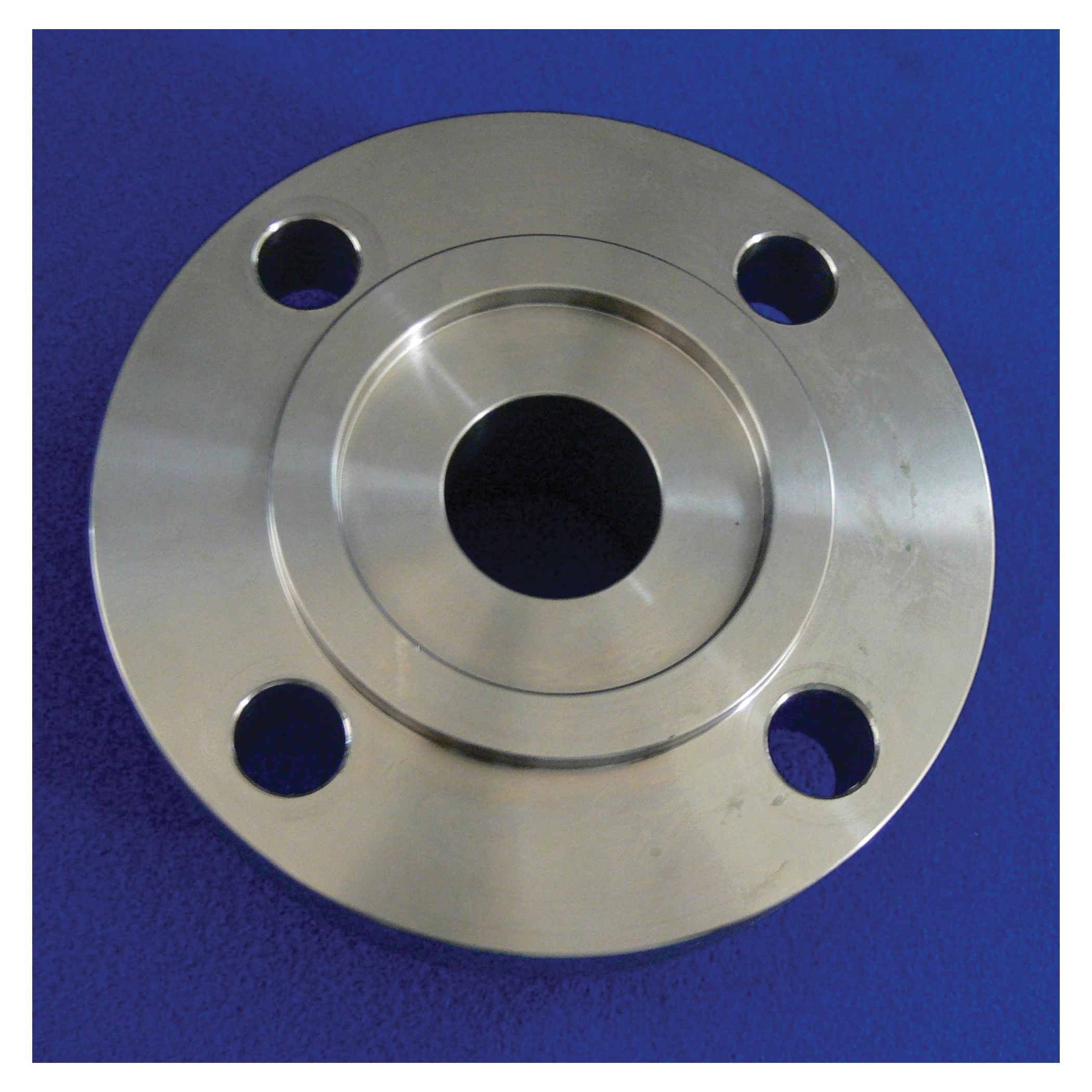

Acme Cryogenics ASK-40-0148S 4-Bolt Flange With 2-3/4 x 2-7/64 in Dia Tongue

ACME CRYOGENICS® ASK-40-0148S 4-Bolt Flange With 2-3/4 x 2-7/64 in Dia Tongue, 1 in, Pipe Socket Connection

ACME CRYOGENICS® ASK-40-0148S 4-Bolt Flange With 2-3/4 x 2-7/64 in Dia Tongue, 1 in, Pipe Socket Connection ASK-40-0148S

Acme offers a wide array of cryogenic liquid transfer connections for LIN/LOX/LAR, CO2, Nitrous Oxide and LNG which are designed for safe and reliable cryogenic liquid transfer, fully compliant with CGA V6. Acme carries the world's largest inventory of liquid transfer fittings.
ACME CRYOGENICS® 4-Bolt Flange, Flange Fitting, 1 in Fitting, Pipe Socket Connection, 450 psig Pressure, 304 Stainless Steel, ASTM B283, CA 377 Material Standard, -320 to 150 deg F, 1-3/4 in W Dimensions, 17/32 in Dia Bolt Hole

Additional Information      :      17/32 in Dia Bolt Hole
Connection Type      :      Pipe Socket
Dimensions      :      1-3/4 in W
Fitting Size      :      1 in
Fitting Type      :      Flange
Material Standard      :      ASTM B283, CA 377
Material      :      304 Stainless Steel
Pressure Rating      :      450 psig
Temperature Rating      :      -320 to 150 deg F
  • Designed for safe and reliable cryogenic liquid transfer
  • Easier and quicker for operators and drivers to connect and disconnect
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/ACME_CRYOGENICS_ASK400016_Catalog.pdf
