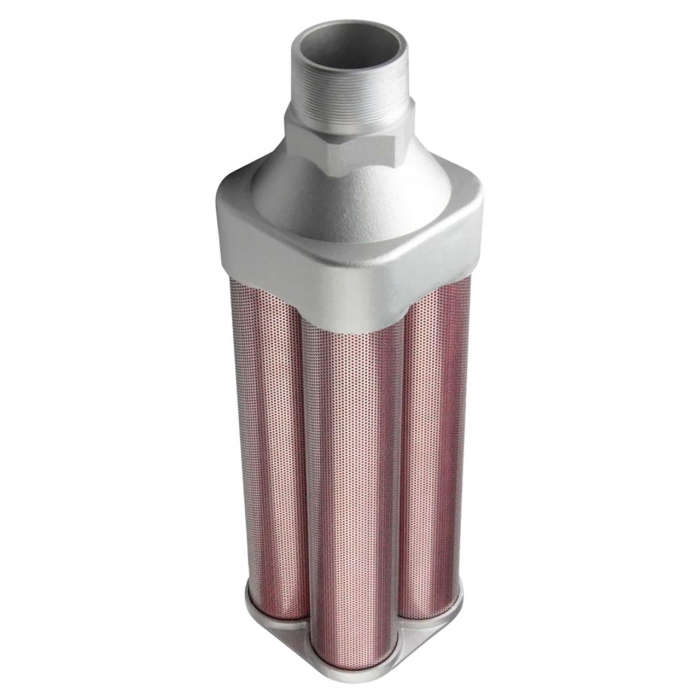

Alwitco S30 Atomuffler Steam Exhaust Muffler, 3" Male NPT
Genuine Alwitco ATOMUFFLER® Series 0114030 Model S30 Steam Exhaust Muffler, 3 in Male NPT Connection, 6640 SCFM Flow Rate, 125 PSI Pressure Rating, Multi-Chamber
Genuine Alwitco ATOMUFFLER® Series 0114030 Model S30 Steam Exhaust Muffler, 3 in Male NPT Connection, 6640 SCFM Flow Rate, 125 PSI Pressure Rating, Multi-Chamber 0114030- Brand Name: Alwitco
- Part Number: 0114030
- Check Stock
-
$458.00
Add To Favorites ListBoiler Start-Ups And Food Processing
The Atomuffler® Steam Exhaust Muffler provides a lower cost alternative and effectively silences objectionable noise created by steam exhaust outlets during boiler start-ups and testing stages only.
Constructed of corrosion-resistant materials, the end caps are also treated with a special epoxy coating for additional resistance to conditions where alkalis are a problem. This also makes the Steam Exhaust Muffler well-suited for low-pressure food processing and similar applications.
The Steam Exhaust Muffler is not designed for permanent installation on boilers or where pressures exceed 125 PSI
| Connection Size | : | 3 Inch |
| Connection Type | : | Male NPT |
| Diameter | : | 7.00 Inch |
| Flow Rate | : | 6640 SCFM |
| Length | : | 22.93 Inch |
| Maximum Operating Pressure | : | 125 PSI |
| Model | : | S30 |
| Operating Temperature | : | 50 to 120 Deg F |
| Replacement Element | : | 0951030 |
| Series | : | Atomuffler® |
- Provides a lower cost alternative to silencing objectionable noise created by steam exhaust outlets during boiler start-ups and testing stages only
- Replacement elements available to make the muffler ready for the next start-up or tuning job
- Constructed of corrosion-resistant materials
- End caps treated with a special epoxy coating for additional resistance in high-alkali conditions
- Well-suited for low-pressure food processing and similar applications
- Not designed for permanent installation on boilers or where pressures exceed 125 psi
