apg™ VB90025 VB90025

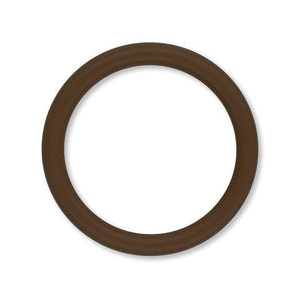

APG VB90025 O-Ring, 1-3/16 Inch ID, 1-5/16 Inch OD, 1/16 Inch Thick, FKM, 90 Durometer

apg™ VB90025 O-ring, 1-3/16 in ID, 1-5/16 in OD, 1/16 in Thick, FKM, 90 Durometer

apg™ VB90025 O-ring, 1-3/16 in ID, 1-5/16 in OD, 1/16 in Thick, FKM, 90 Durometer VB90025

Excellent mechanical and physical properties. Good resistance to petroleum products, low compression set and high-temperature resistance. Wide spectrum of chemical compatibility. Good for vacuum service and low gas permeability. Temperature range -15 to 400 deg F (limited exposures to higher temperatures). apg™ stocks the Type "A" Grade FKM.
apg™ O-Ring, 025 Dash, 1-3/16 in Inside Diameter, 1-5/16 in Outside Diameter, 1/16 in Thickness, 90 Durometer, Round Cross Section, FKM, Brown, -15 to 400 deg F

Color      :      Brown
Cross Section Shape      :      Round
Dash Size      :      025
Durometer      :      90
Inside Diameter      :      1-3/16 in
Material      :      FKM
Outside Diameter      :      1-5/16 in
Temperature Rating      :      -15 to 400 deg F
Thickness      :      1/16 in
