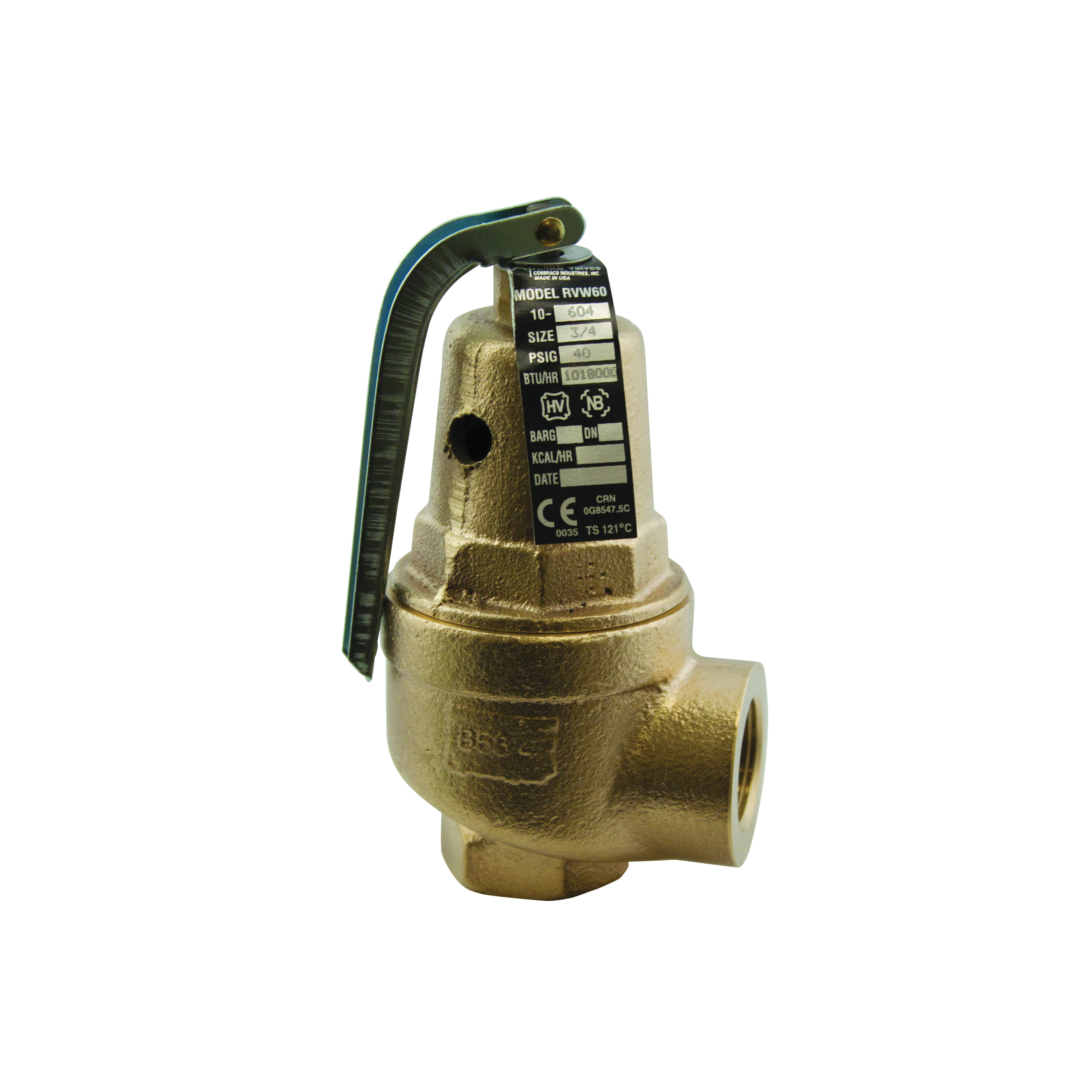

Apollo Valves 10-604-05 Safety Relief Valve
Apollo® Valves RVW60 10-604-05 Safety Relief Valve, 3/4 in Nominal, FNPT Connection, 30 psi Pressure, 250 deg F
Apollo® Valves RVW60 10-604-05 Safety Relief Valve, 3/4 in Nominal, FNPT Connection, 30 psi Pressure, 250 deg F 10-604-05- Brand Name: Apollo® Valves
- Part Number: 10-604-05
- Check Stock
-
$251.00
Add To Favorites ListApollo® Valves Safety Relief Valve, Series: RVW60, 3/4 in Nominal, FNPT, 30 psi, Bronze Body, Silicone Seat, Brass Disc, 250 deg F, 3.2 in W x 5.3 in H
| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| Dimensions | : | 3.2 in W x 5.3 in H |
| Disc Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 30 psi |
| Seat Material | : | Silicone |
| Series | : | RVW60 |
| Temperature Rating | : | 250 deg F |
- Corrosion-resistant construction
- It can be pre-set to any pressure ranging from 15 to 160 psi at 250 deg F maximum
- Diaphragm isolated spring chamber
- Extremely high capacity
- Steel-plated alloy spring
- Standard outlet
- Fabric reinforced molded diaphragm isolates spring from water at all times
- Spring cage
- Protects against excessive water pressure due to failure of controls to regulate Btu input
- High-capacity heating system valves with female inlet and standard or expanded female outlet
- Entire pressure range is National Board capacity certified
- Elevated seat for drainage of water away from seat area
