Apollo® Valves 1041709 1041709

Apollo Valves 1041709 Safety Relief Valve

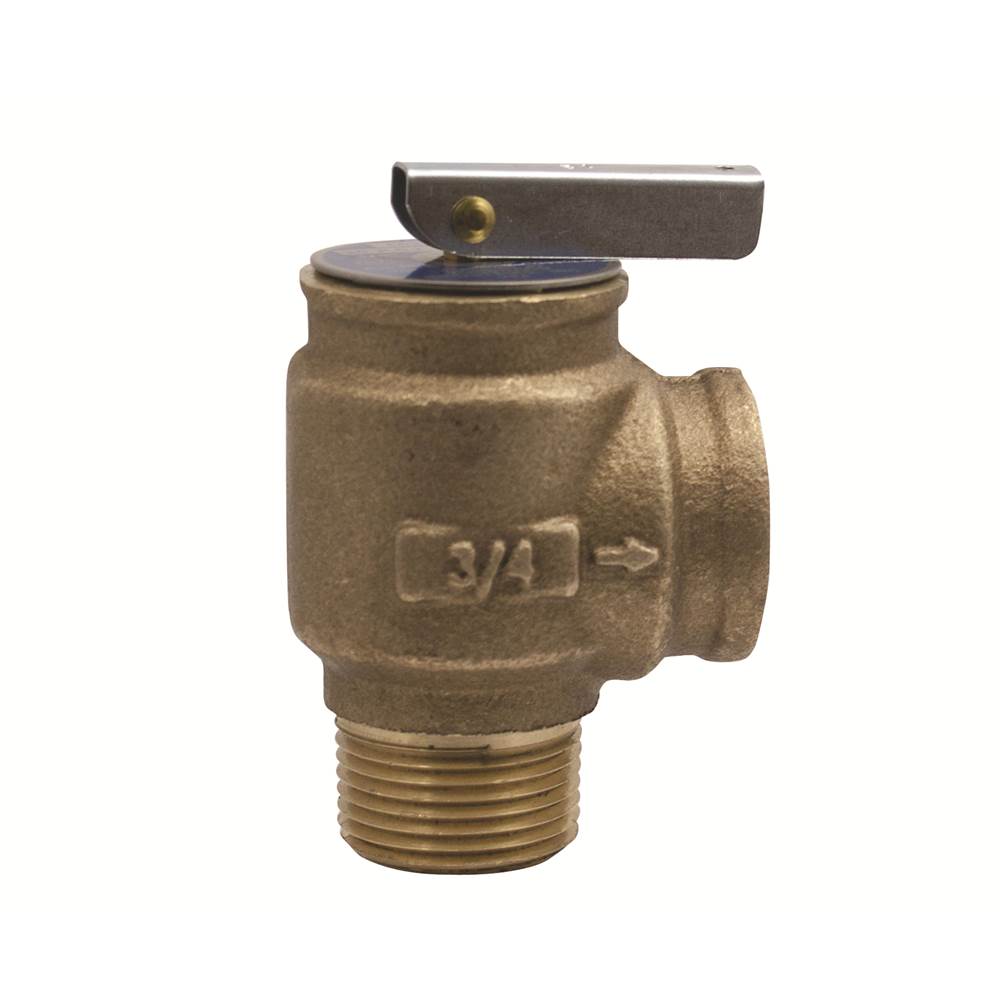

Apollo® Valves 10-400 Series 1041709 Safety Relief Valve, 3/4 in, MNPT x FNPT, 20 to 80 psi, Bronze

Apollo® Valves 10-400 Series 1041709 Safety Relief Valve, 3/4 in, MNPT x FNPT, 20 to 80 psi, Bronze 1041709

ASME Section IV capacity certified bronze safety relief valve for protection of hot water heating boilers, systems and similar equipment. It can be pre-set to any pressure ranging between 20 to 80 psig (1.4 to 5.5 bar) at 250 deg F (121 deg C) max.
Apollo® Valves Safety Relief Valve, Series: 10-400 Series, 3/4 in Nominal, MNPT x FNPT Connection, 20 to 80 psi, Bronze Body, 32 to 250 deg F, 3 in Length, 3 in Height, 2 in Width, Domestic/Import: Domestic

Additional Information      :      120 Family Group, 879 Item Category, 10 Item Class
Body Material      :      Bronze
Connection Type      :      MNPT x FNPT
Domestic/Import      :      Domestic
Height      :      3 in
Length      :      3 in
Nominal Size      :      3/4 in
Pressure Rating      :      20 to 80 psi
Series      :      10-400 Series
Temperature Rating      :      32 to 250 deg F
Width      :      2 in
  • Corrosion-resistant construction
