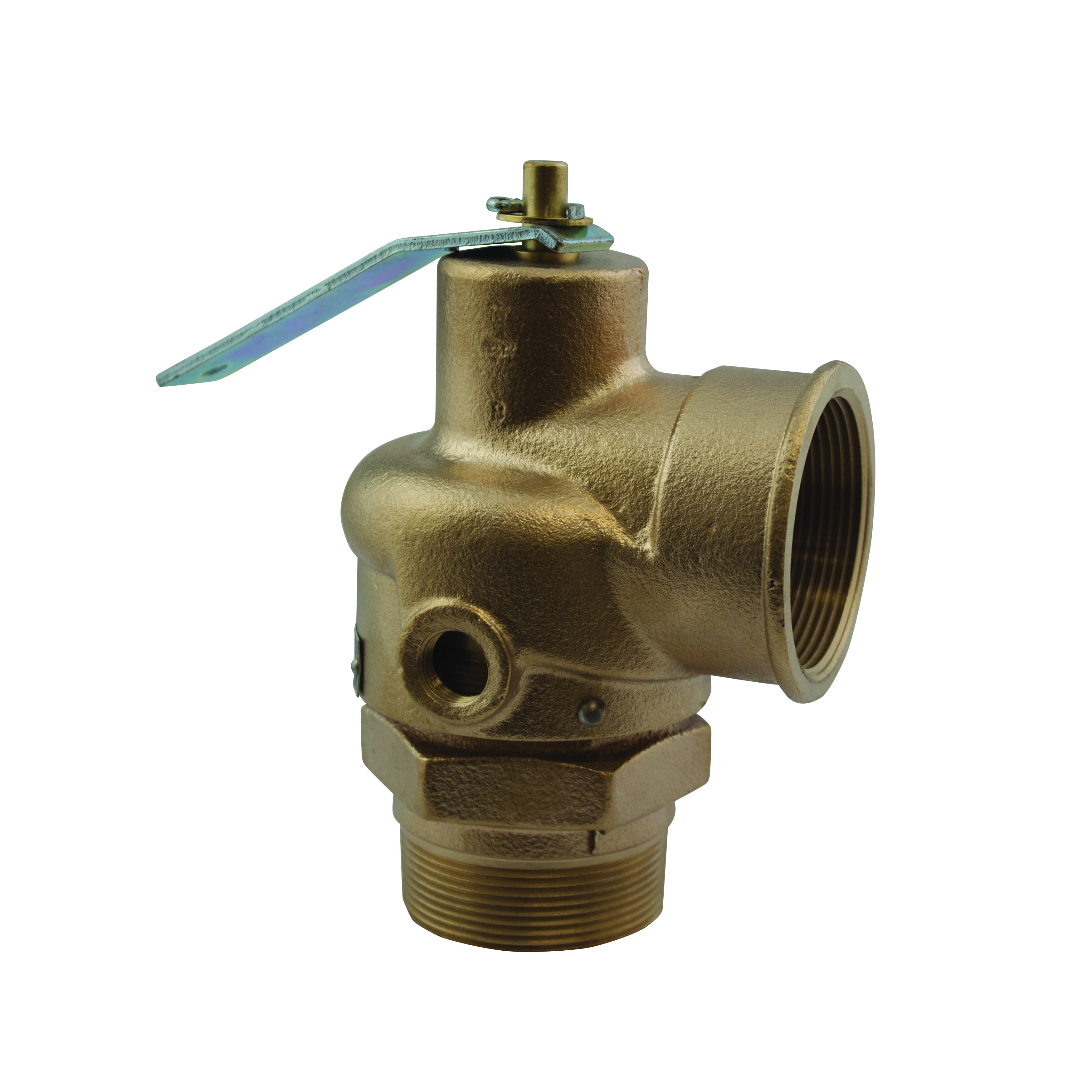

Apollo Valves 12-205-08 Safety Relief Valve
Apollo® Valves 12-205-08 Safety Relief Valve, 2 in Nominal, MNPT x FNPT Connection, 15 psi Pressure, Bronze Body
Apollo® Valves 12-205-08 Safety Relief Valve, 2 in Nominal, MNPT x FNPT Connection, 15 psi Pressure, Bronze Body 12-205-08- Brand Name: Apollo® Valves
- Part Number: 12-205-08
- Check Stock
-
$649.00
Add To Favorites ListApollo® Valves Safety Relief Valve, 2 in Nominal, MNPT x FNPT, 15 psi, Bronze Body, PTFE Seat, Brass Stem, PTFE Coated EPDM Seal, Brass Disc, 6 in H
| Body Material | : | Bronze |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 6 in H |
| Disc Material | : | Brass |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 15 psi |
| Seal Material | : | PTFE Coated EPDM |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
- Top guided, high capacity design
- Rust-proofed steel spring
- 3/8 in NPT side tapping for drain connection
- Bronze nozzle
- Chrome-plated steel AISI 1010 drive screw and spring washer
- Aluminum name plate
- Steel-plated handle assembly
- Stainless steel spring
- Brass stem nut, retainer ring, guide
- Apollo valves medium capacity safety valves protect ASME Section IV low pressure steam heating boilers
- Cast bronze, full nozzle design features PTFE faced elastomeric soft seating for dependable operation
- 2500 lb/hr nominal capacity
