Apollo® Valves 12-208-08 12-208-08

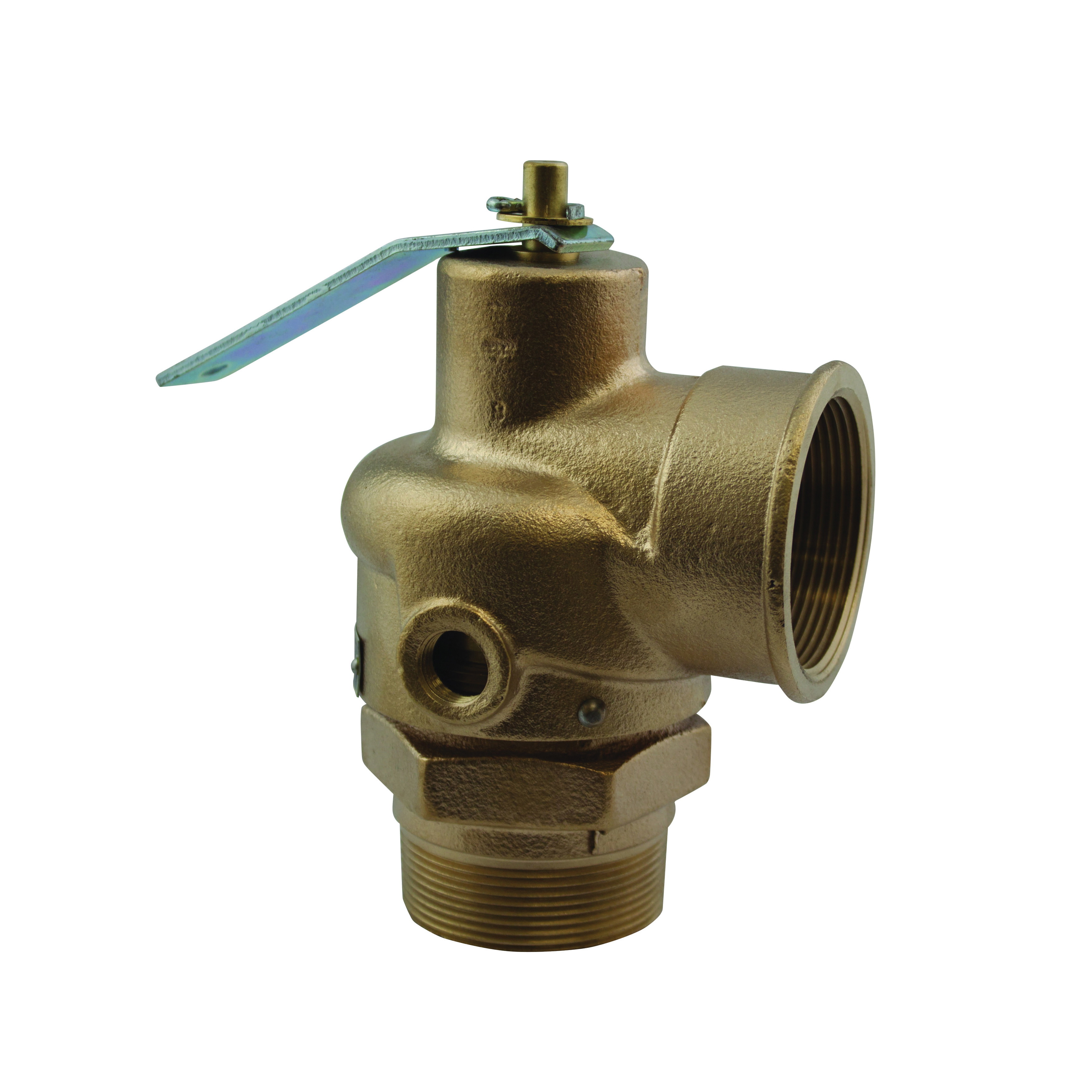

Apollo Valves 12-208-08 Low Pressure Steam Safety Valve

Apollo® Valves 12-208-08 Low Pressure Steam Safety Valve, 3 in Nominal, FNPT x MNPT Connection, 15 psig Pressure

Apollo® Valves 12-208-08 Low Pressure Steam Safety Valve, 3 in Nominal, FNPT x MNPT Connection, 15 psig Pressure 12-208-08

Medium capacity safety valves protect ASME section IV low pressure steam heating boilers. Cast bronze, full nozzle design features PTFE faced elastomer soft seating for dependable operation.
Apollo® Valves Low Pressure Steam Safety Valve, 3 in Nominal, Connection Type: FNPT x MNPT, 15 psig, Lever Handle Actuator, Bronze Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Disc, Brass Trim, Steel Handle

Actuator Type      :      Lever Handle
Body Material      :      Bronze
Connection Type      :      FNPT x MNPT
Disc Material      :      Brass
Handle Material      :      Steel
Nominal Size      :      3 in
Pressure Rating      :      15 psig
Seal Material      :      PTFE
Seat Material      :      PTFE
Series      :      12-200
Stem Material      :      Brass
Trim Material      :      Brass
  • 3/8 in NPT side tapping for drain
  • Rust-proofed steel spring
  • Top guided, high capacity design
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_12_208_08_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_12_206_08_Specification_Sheet.pdf
