Apollo® Valves 13-213-03 13-213-03

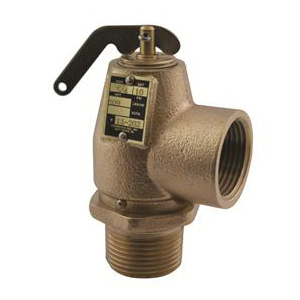

Apollo Valves 13-213-03 Safety Valve

Apollo® Valves 13-200 Series 13-213-03 Safety Valve, 1-1/4 x 1-1/2 in Nominal, MNPT x FNPT Connection, 250 deg F

Apollo® Valves 13-200 Series 13-213-03 Safety Valve, 1-1/4 x 1-1/2 in Nominal, MNPT x FNPT Connection, 250 deg F 13-213-03

The Apollo® 13 Series bronze low pressure steam safety valve is designed to meet ASME Section IV code requirements for protection of steam heating boilers, systems and similar equipment.
Apollo® Valves Safety Valve, Series: 13-200 Series, 1-1/4 x 1-1/2 in Nominal, MNPT x FNPT Connection, 5 to 15 psig, Steam Media, Bronze Body, TFE Seat, 250 deg F, Domestic/Import: Domestic, Additional Information: 1200 lb/hr Capacity, 3.82 in H Installation

Additional Information      :      1200 lb/hr Capacity, 3.82 in H Installation
Body Material      :      Bronze
Connection Type      :      MNPT x FNPT
Domestic/Import      :      Domestic
Media      :      Steam
Nominal Size      :      1-1/4 x 1-1/2 in
Pressure Rating      :      5 to 15 psig
Seat Material      :      TFE
Series      :      13-200 Series
Temperature Rating      :      250 deg F
  • Corrosion-resistant construction
  • Made in the USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_13_213_03_Specification_Sheet.pdf
