Apollo® Valves 16-503-01 16-503-01

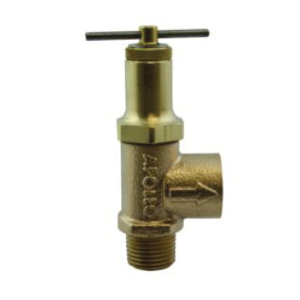

Apollo Valves 16-503-01 General Purpose Pressure Relief Valve

Apollo® Valves 16-501 Series 16-503-01 General Purpose Pressure Relief Valve, 1/2 in Nominal, Male x Female Connection

Apollo® Valves 16-501 Series 16-503-01 General Purpose Pressure Relief Valve, 1/2 in Nominal, Male x Female Connection 16-503-01

Adjustable relief valves protect equipment by providing low volume liquid relief or bypass control. Excess volume may be discharged back to the low pressure source. Ideal for agricultural sprayers and simple commercial or industrial pressurized systems.
Apollo® Valves General Purpose Pressure Relief Valve, Series: 16-501 Series, 1/2 in Nominal, Male x Female Connection, 50 to 250 psi, Liquid Media, 4.12 in Inlet to Outlet Length, 1.29 in Top to Inlet Center, Cast Bronze Body, Nitrile Seat, FKM Stem, FKM Seal, Polypropylene Softgoods, 200 deg F, Domestic/Import: Domestic

Body Material      :      Cast Bronze
Connection Type      :      Male x Female
Domestic/Import      :      Domestic
Inlet to Outlet Length      :      4.12 in
Media      :      Liquid
Nominal Size      :      1/2 in
Pressure Rating      :      50 to 250 psi
Seal Material      :      FKM
Seat Material      :      Nitrile
Series      :      16-501 Series
Softgoods Material      :      Polypropylene
Stem Material      :      FKM
Temperature Rating      :      200 deg F
Top to Inlet Center      :      1.29 in
  • Adjustable relief settings, in two ranges to 600 psi
  • Cast bronze body, stainless steel springs
  • Knurled locknut locks pressure adjustment
  • FKM stem seal, polypropylene body gasket
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_16_501_60_Specification_Sheet.pdf
