Apollo® Valves 16-504-01 16-504-01

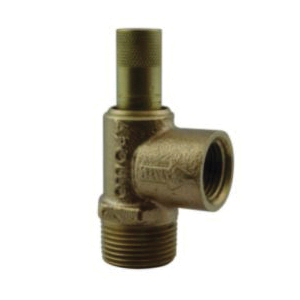

Apollo Valves 16-504-01 General Purpose Pressure Relief Valve

Apollo® Valves 16-501 Series 16-504-01 General Purpose Pressure Relief Valve, 3/4 x 1/2 in Nominal, 200 deg F

Apollo® Valves 16-501 Series 16-504-01 General Purpose Pressure Relief Valve, 3/4 x 1/2 in Nominal, 200 deg F 16-504-01

Calibrated pressure relief valve allows for inline pressure adjustments without the need for a pressure gauge. Provides static overpressure protection for liquid filled.
Apollo® Valves General Purpose Pressure Relief Valve, Series: 16-501 Series, 3/4 x 1/2 in Nominal, Male x Female Connection, 50 to 175 psi, Liquid Media, 3.44 in Inlet to Outlet Length, 1.31 in Top to Inlet Center, Cast Bronze Body, Silicone Seat, EPDM Seal, Polypropylene Softgoods, 200 deg F, Domestic/Import: Domestic

Body Material      :      Cast Bronze
Connection Type      :      Male x Female
Domestic/Import      :      Domestic
Inlet to Outlet Length      :      3.44 in
Media      :      Liquid
Nominal Size      :      3/4 x 1/2 in
Pressure Rating      :      50 to 175 psi
Seal Material      :      EPDM
Seat Material      :      Silicone
Series      :      16-501 Series
Softgoods Material      :      Polypropylene
Temperature Rating      :      200 deg F
Top to Inlet Center      :      1.31 in
  • Factory preset at 100 psi
  • Pressure range 50 to 175 psi, calibrated in 25 psi increments
  • Cast bronze body, stainless steel springs
  • Silicone soft seat, EPDM cap seal
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_16_501_60_Specification_Sheet.pdf
