Apollo® Valves 34ALF-213-BS 34ALF-213-BS

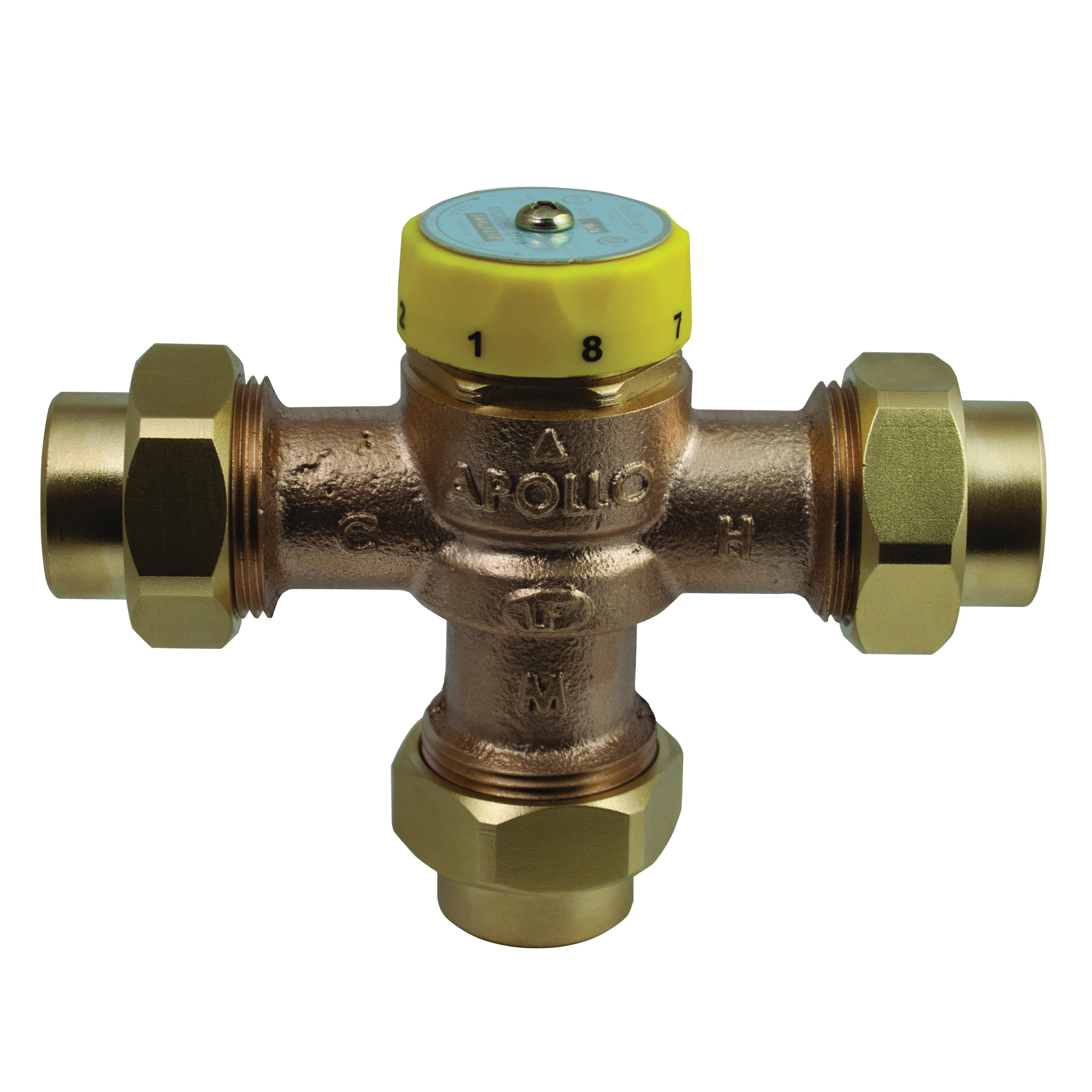

Apollo Valves 34ALF-213-BS Thermostatic Master Mixing Valve

Apollo® Valves Thermostatic Master Mixing Valve, 1/2 in Nominal, Solder Connection, 0.5 gpm, 150 psig Pressure

Apollo® Valves Thermostatic Master Mixing Valve, 1/2 in Nominal, Solder Connection, 0.5 gpm, 150 psig Pressure 34ALF-213-BS

The Apollo® 34ALF Series thermostatic master mixing valves are designed for ASSE 1017 "point of source" approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using lead-free materials and are available with a variety of options and end connections.
Apollo® Valves Thermostatic Master Mixing Valve, Series: 34ALF Series, 1/2 in Nominal, Solder Connection, 150 psig, 0.5 gpm Flow Rate, Water Media, Bronze Body, EPDM Seal, 120 deg F, Domestic/Import: Domestic

Body Material      :      Bronze
Connection Type      :      Solder
Domestic/Import      :      Domestic
Flow Rate      :      0.5 gpm
Media      :      Water
Nominal Size      :      1/2 in
Pressure Rating      :      150 psig
Seal Material      :      EPDM
Series      :      34ALF Series
Temperature Rating      :      120 deg F
  • Superior thermostatic element technology for optimal performance, reliability and accuracy
  • Integral inlet strainers and check valves are standard to protect against cross flow and foreign particles in the piping system
  • Thermostat over-temperature control
  • Maximum temperature limit option
  • Fingertip temperature control
  • Cold or hot water supply failure shut-off protection
  • Multiple connection options to fit your specific needs
  • High temperature version for hydronic/radiant heating applications
  • Lead-free construction certified 0.25% lead max
  • Made in USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_34ALF_213_BS_Specification_Sheet.pdf
