Apollo® Valves 34HL10501 34HL10501

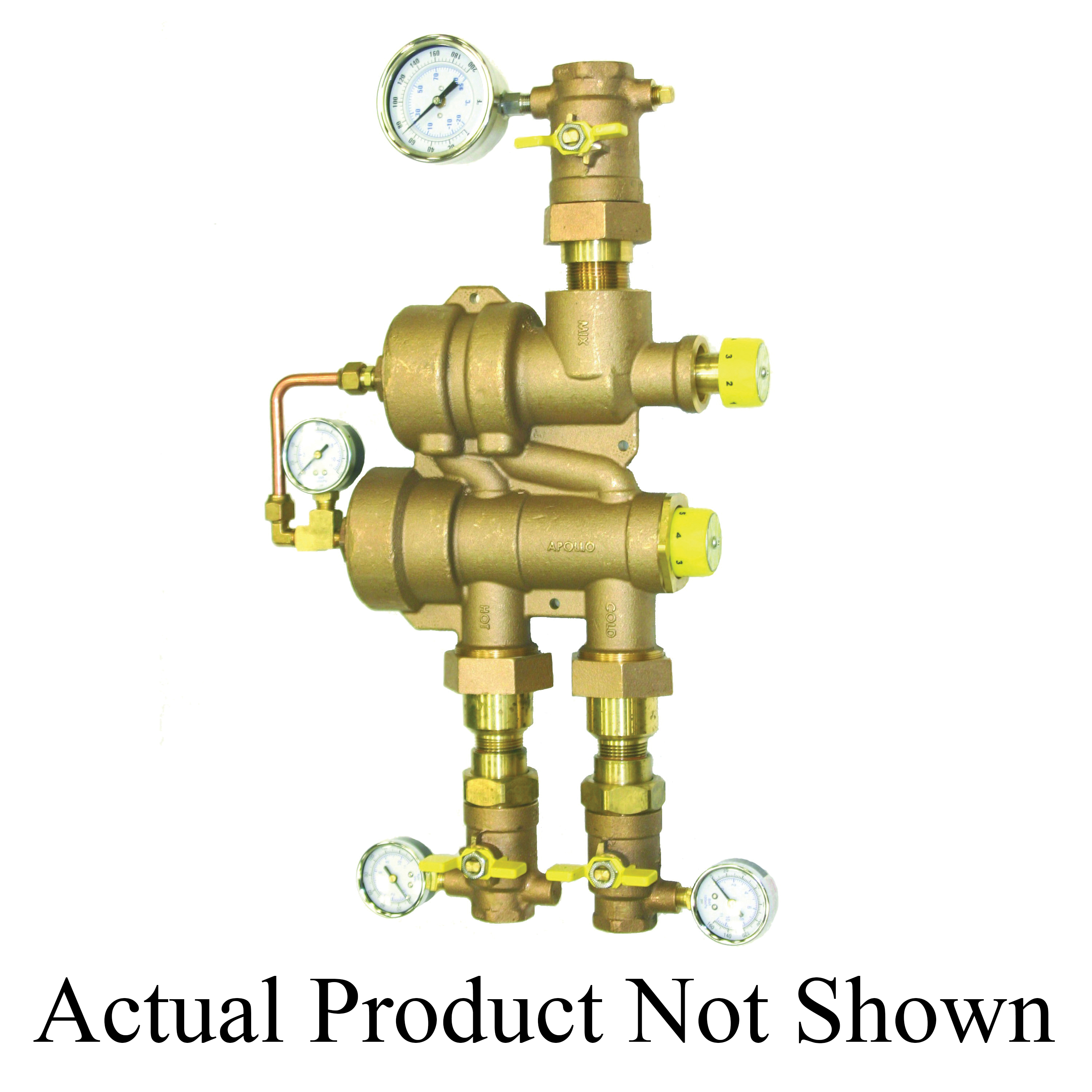

Apollo Valves 34HL10501 Automatic Temperature Controller Mixing Valve

Apollo® Valves 34HL Series 34HL10501 Automatic Temperature Controller Mixing Valve, 1 x 1-1/4 in Nominal, NPT Connection

Apollo® Valves 34HL Series 34HL10501 Automatic Temperature Controller Mixing Valve, 1 x 1-1/4 in Nominal, NPT Connection 34HL10501

The Apollo® 34HL Series automatic temperature controller/HI-LO meets the new ASSE 1069 standard for multiple shower applications and the ASSE 1017 standard for point of source distribution applications. The device provides consistent temperature control to flow as low as 0.5 gpm. The MVHL is capable of low flow control without need for recirculation pumps and higher flow with parallel installation. Integral strainers and check valves are supplied at the valve inlets for added protection and long term performance.
Apollo® Valves Automatic Temperature Controller Mixing Valve, Series: 34HL Series, 1 x 1-1/4 in Nominal, NPT Connection, 1.5 gpm Flow Rate, 150 psi, Bronze, ASTM A313 Material Standard, Hot/Cold and Water Media, 200 deg F, 14.86 in H x 21.16 in W x 4.32 in D, Domestic/Import: Domestic

Connection Type      :      NPT
Dimensions      :      14.86 in H x 21.16 in W x 4.32 in D
Domestic/Import      :      Domestic
Flow Rate      :      1.5 gpm
Material Standard      :      ASTM A313
Material      :      Bronze
Media      :      Hot/Cold and Water
Nominal Size      :      1 x 1-1/4 in
Pressure Rating      :      150 psi
Series      :      34HL Series
Temperature Rating      :      200 deg F
  • Union isolation ball valve connections
  • Corrosion-resistant bronze construction
  • Integral/replaceable inline check valves
  • Integral/replaceable inline strainers
  • High low flow calibration valve
  • Cold and hot water protection failure
  • Independent low and high flow temp control
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_34C107H1_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_34HL10501_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_34HL10501_Specification_Sheet.pdf
