Apollo® Valves 4A-108-A2 4A-108-A2

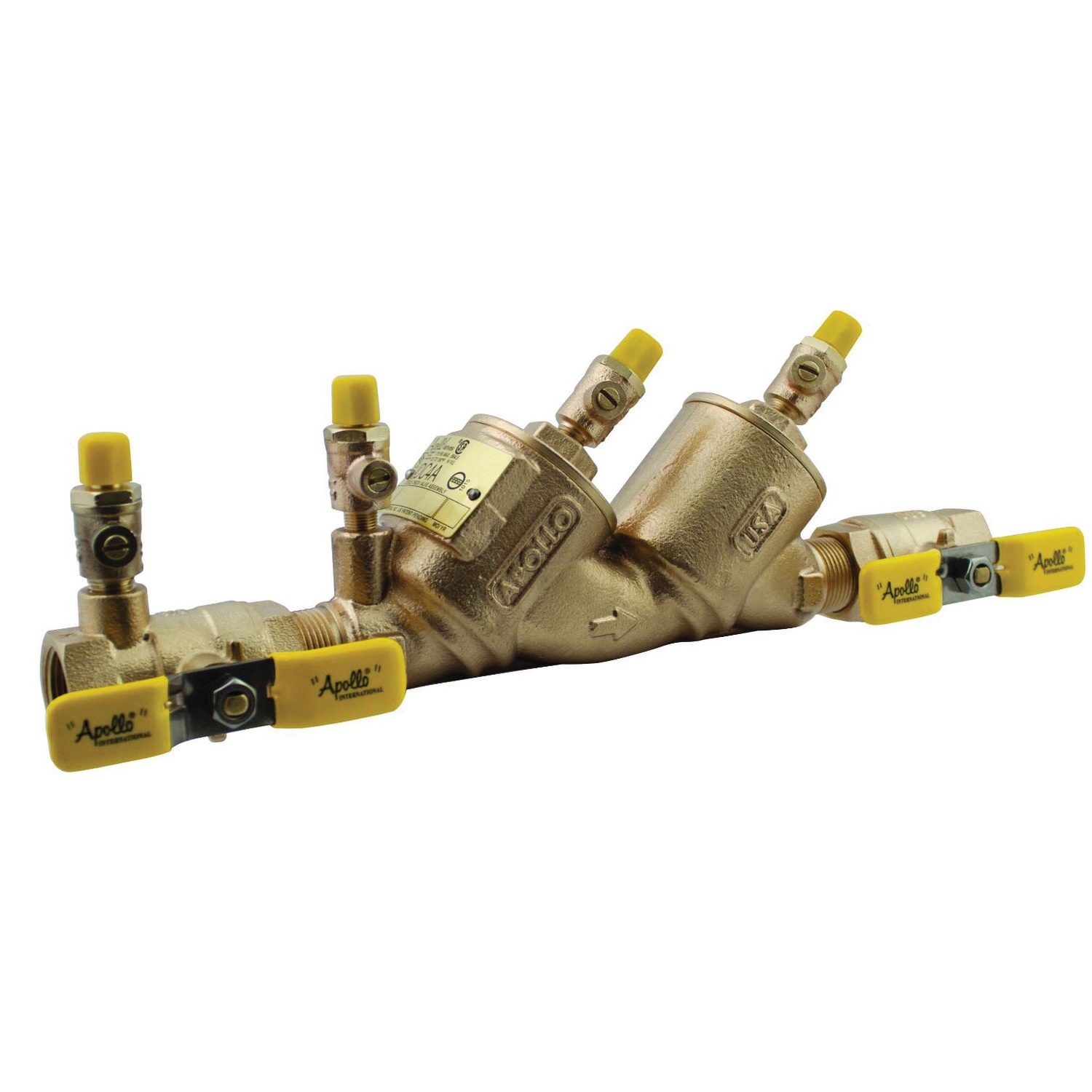

Apollo Valves 4A-108-A2 Double Check Valve With Ball Valves

Apollo® Valves 4A-108-A2 Double Check Valve With Ball Valves, 2 in, FNPT

Apollo® Valves 4A-108-A2 Double Check Valve With Ball Valves, 2 in, FNPT 4A-108-A2

The Apollo® model DC4A and DCLF4A Series lead-free and non-lead-free double check valves prevent contamination of the potable water supply due to back siphonage or back pressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This made in America assembly features ball valve shut-offs with stainless steel handles and nuts as standard and carries the 5 years Apollo® factory warranty.
Apollo® Valves Double Check Valve, 2 in Nominal, FNPT Connection, Standard, 175 psi, Water Media, 20-1/8 in Inlet to Outlet Length, 5 in Top to Inlet Center, Material Standard: ASTM B584-C84400, Bronze Body, 33 to 180 deg F, Domestic/Import: Domestic, Additional Information: Straight Shape

Additional Information      :      Straight Shape
Body Material      :      Bronze
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Inlet to Outlet Length      :      20-1/8 in
Material Standard      :      ASTM B584-C84400
Media      :      Water
Nominal Size      :      2 in
Pressure Rating      :      175 psi
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      5 in
  • Low pressure loss
  • Captured spring cartridge check valves
  • Compact, yet easy to maintain
  • Ball valve shut-offs with stainless steel handles and nuts standard
  • Top access for fast testing and maintenance
  • Threaded testcock protectors
  • Corrosion-resistant
  • No special tools required
  • Chloramine-resistant elastomers
  • Designed, cast, machined, assembled and tested in the USA
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_4A_107_A2_Submittal.pdf
