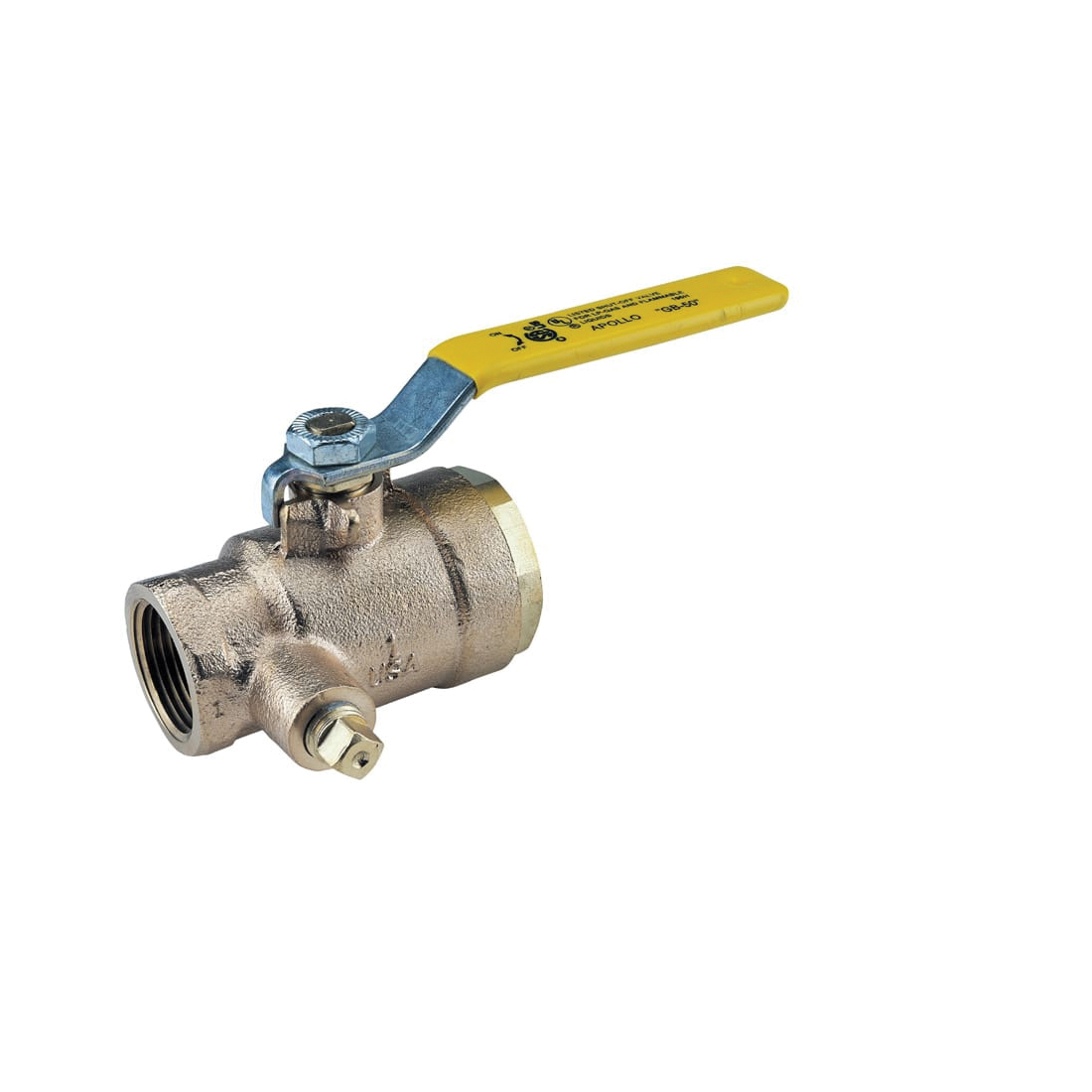

Apollo Valves 50GB-501 Gas Shut-Off Ball Valve With 1/8" Side Tap
Apollo® Valves 50GB501 Gas Shut-Off Ball Valve With 1/8 in Side Tap, 1 in Nominal, 1/2 to 5 psi Pressure, Bronze Body
Apollo® Valves 50GB501 Gas Shut-Off Ball Valve With 1/8 in Side Tap, 1 in Nominal, 1/2 to 5 psi Pressure, Bronze Body 50GB-501- Brand Name: Apollo® Valves
- Part Number: 50GB-501
- Check Stock
Add To Favorites ListThe Apollo GB-50 series bronze ball valves are designed with proven ASTM grade corrosion resistant materials for main burner applications, with cast-in single or dual pilot taps for faster, simpler installation. Options include a die-cast zinc wing or tee handle.
Apollo® Valves Gas Shut-Off Ball Valve, 1 in Nominal, 1/2 to 5 psi, 1 in Opening, Lever Operator, ASTM B-584, ASTM B-16 Material, Bronze Body, PTFE Seat, Brass Stem, Chrome-Plated Brass Trim, RPTFE Packing, Steel Handle, 3.42 in L
| Body Material | : | Bronze |
| Dimensions | : | 3.42 in L |
| Handle Material | : | Steel |
| Material Standard | : | ASTM B-584, ASTM B-16 |
| Nominal Size | : | 1 in |
| Opening Size | : | 1 in |
| Operator Type | : | Lever |
| Packing Material | : | RPTFE |
| Pressure Rating | : | 1/2 to 5 psi |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Trim Material | : | Chrome-Plated Brass |
- Full port design ensures maximum capacity
- Reversible steel lever handle
- 100% factory tested
- Brass retainer
- Steel, Zinc-plated, plastisol grip handle/nut
- Rated gas pressures of 1/2 and 5 psi
- 3144000 Btu/hr capacity
Instruction/Installation Manual
