Apollo® Valves 61-505-01 61-505-01

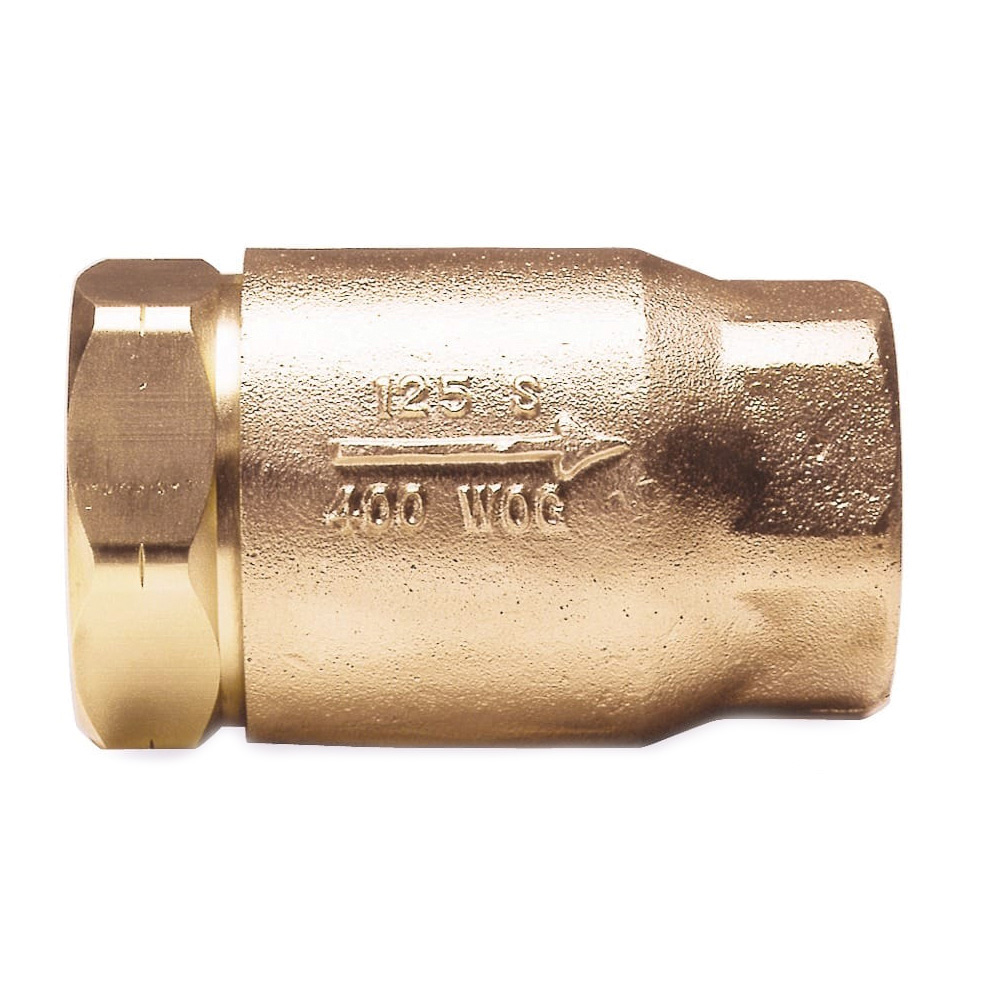

Apollo Valves 61-505-01 In-Line Check Valve

Apollo® Valves 61-505-01 In-Line Check Valve, 1 in Nominal, FNPT Connection, Bronze Body, Domestic

Apollo® Valves 61-505-01 In-Line Check Valve, 1 in Nominal, FNPT Connection, Bronze Body, Domestic 61-505-01

The Apollo 61 Series "Soft Seat" check valve offer reliable tight shut-off protection against reverse flow and corrosion-resistance using proven ASTM quality materials made in the USA. Ideally suited for hydronic heating and other low flow applications. Soft seat allows more resistance to vibration and may be installed in both horizontal and vertical upward flow applications.
Apollo® Valves In-Line Check Valve, Series: 61-500, 1 in Nominal, FNPT Connection, 400 psig, 100 deg F, 6 gpm Flow Rate, Gas Media, 3-1/2 in Inlet to Outlet Length, Bronze Body, EPDM Seat, EPDM Disc, Domestic/Import: Domestic

Body Material      :      Bronze
Connection Type      :      FNPT
Disc Material      :      EPDM
Domestic/Import      :      Domestic
Flow Rate      :      6 gpm
Inlet to Outlet Length      :      3-1/2 in
Media      :      Gas
Nominal Size      :      1 in
Pressure Rating      :      400 psig
Seat Material      :      EPDM
Series      :      61-500
Temperature Rating      :      100 deg F
  • Bubble-tight shut-off, ideally suited for gaseous service
  • Straight through flow minimizes pressure loss
  • 1/2 psi cracking pressure
  • Made in the USA
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Apollo_Valves_61_505_01_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Apollo_Valves_61_505_01_Specification_Sheet.pdf
