Apollo® Valves 70-104-HC 70-104-HC

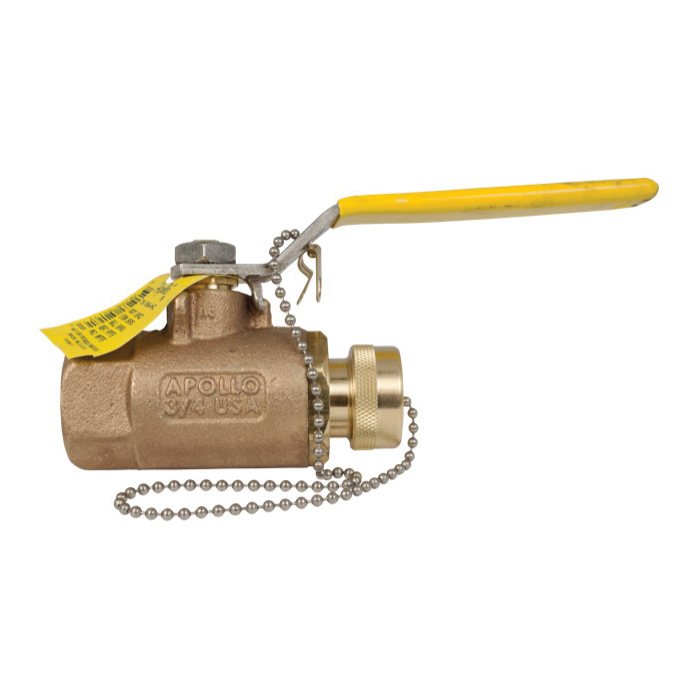

Apollo Valves 70-100-HC 70-104-HC Two-Piece Ball Valve with 3/4" Hose Connection

Apollo® Valves 70-100-HC 70-104-HC Two-Piece Ball Valve with 3/4 in Hose Connection, Protective Cap and Chain, 210 deg F

Apollo® Valves 70-100-HC 70-104-HC Two-Piece Ball Valve with 3/4 in Hose Connection, Protective Cap and Chain, 210 deg F 70-104-HC

The Apollo® 70-HC models are ideally suited for direct connection to hoses. Valves feature a heavy-duty machined hose thread cover with heavy-duty stainless steel chain to prevent loss. Standard lever and nut are stainless steel.
Apollo® Valves Two-Piece Ball Valve With 3/4 in Hose Connection, Protective Cap and Chain, Series: 70-100-HC, 3/4 x 3/4 in Nominal, NPT x Hose Connection, 600 psi, Lever Actuator, 3.41 in Inlet to Outlet Length, 2.32 in Top to Inlet Center, 0.68 in Opening, ANSI ASME B1.20.7, ASME B1.20.7, ASTM B16, ASTM B283, ASTM B584 Material Standard, C84400 Cast Bronze Body, RPTFE Seat, Brass Stem, Brass/Stainless Steel Trim, MPTFE Packing, Stainless Steel/Vinyl Handle, Chrome-Plated Brass Ball, RPTFE Softgoods, 210 deg F, Domestic/Import: Domestic

Actuator Type      :      Lever
Ball Material      :      Chrome-Plated Brass
Body Material      :      C84400 Cast Bronze
Connection Type      :      NPT x Hose
Domestic/Import      :      Domestic
Handle Material      :      Stainless Steel/Vinyl
Inlet to Outlet Length      :      3.41 in
Material Standard      :      ANSI ASME B1.20.7, ASME B1.20.7, ASTM B16, ASTM B283, ASTM B584
Nominal Size      :      3/4 x 3/4 in
Opening Size      :      0.68 in
Packing Material      :      MPTFE
Pressure Rating      :      600 psi
Seat Material      :      RPTFE
Series      :      70-100-HC
Softgoods Material      :      RPTFE
Stem Material      :      Brass
Temperature Rating      :      210 deg F
Top to Inlet Center      :      2.32 in
Trim Material      :      Brass/Stainless Steel
  • Full pressure-rated heavy brass hose cap
  • Blowoutproof stem design
  • Adjustable packing gland
  • 100% factory tested
  • RPTFE stem bearing
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/APV-70-100_SS1023.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_104_HC_Specification_Sheet.pdf
