Apollo® Valves 70-103-2741 70-103-27-41

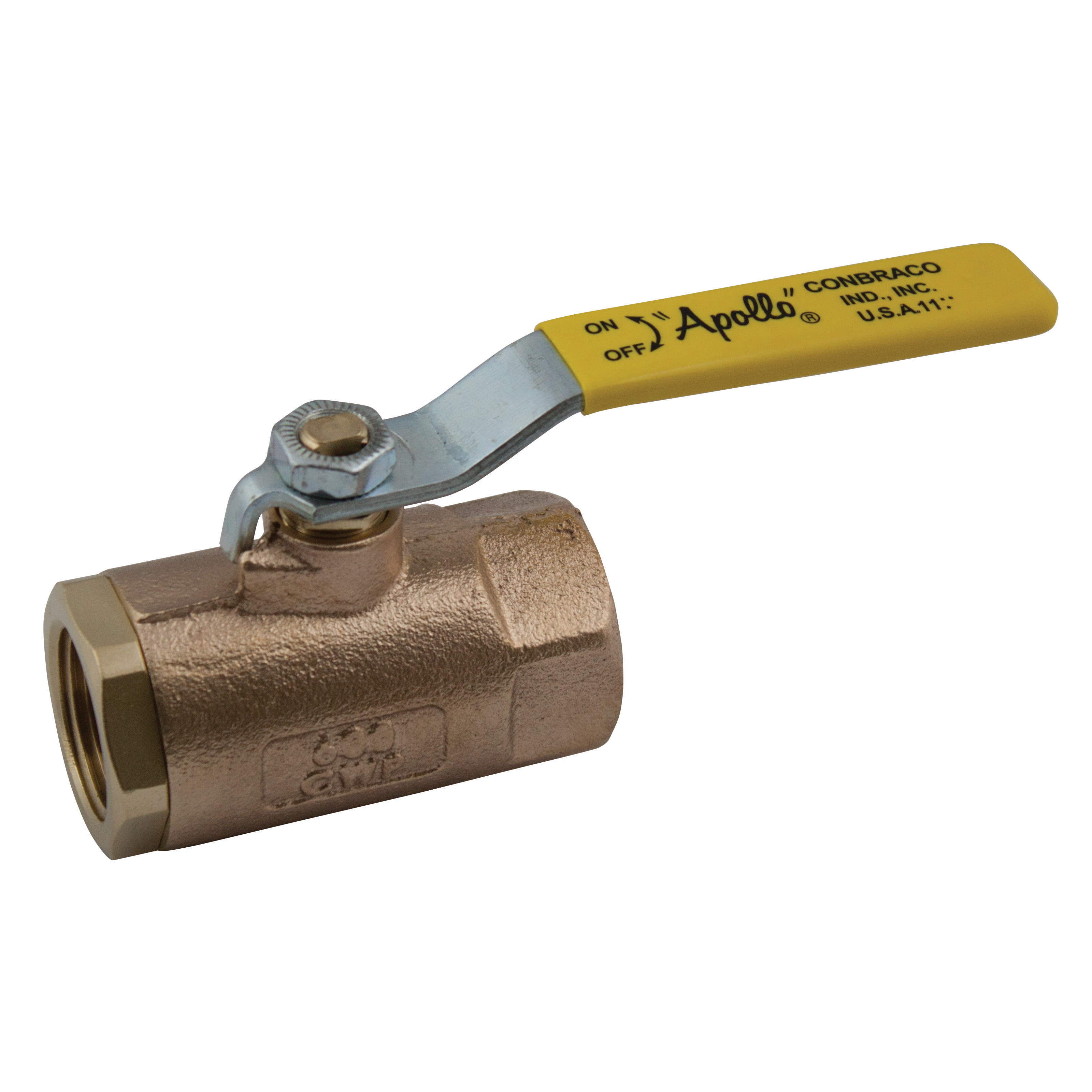

Apollo Valves 70-103-2741 Ball Valve

Apollo® Valves 701032741 Ball Valve, 1/2 in Nominal, FNPT Connection, 150 psi, 600 psi Pressure, 500 deg F

Apollo® Valves 701032741 Ball Valve, 1/2 in Nominal, FNPT Connection, 150 psi, 600 psi Pressure, 500 deg F 70-103-2741

The Apollo® 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo®'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® Valves Ball Valve, Series: 70-100, 1/2 in Nominal, FNPT Connection, Standard Port, 150 psi, 600 psi Pressure, Latch Lock Lever Actuator, 2-1/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Latch Lock Lever Operator, ASTM B584 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/RPTFE/Steel Trim, MPTFE Packing Material, Steel Handle, Brass Ball, PTFE Softgoods, Polished Chrome/Zinc, 500 deg F, Domestic

Actuator Type      :      Latch Lock Lever
Ball Material      :      Brass
Body Material      :      Bronze
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Finish      :      Polished Chrome/Zinc
Handle Material      :      Steel
Inlet to Outlet Length      :      2-1/4 in
Lead-Free/Contains Lead      :      Contains Lead
Material Standard      :      ASTM B584
Nominal Size      :      1/2 in
Operator Type      :      Latch Lock Lever
Packing Material      :      MPTFE
Port Type      :      Standard
Pressure Rating      :      150 psi, 600 psi
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      70-100
Softgoods Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      500 deg F
Top to Inlet Center      :      1-3/4 in
Trim Material      :      Brass/RPTFE/Steel
  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blowout-proof stem design
  • Chromium-plated ball
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/ApolloValves_701032741_Specification_Sheet.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_100_01_Specification_Sheet.pdf
