Apollo® Valves 70-209-01 70-209-01

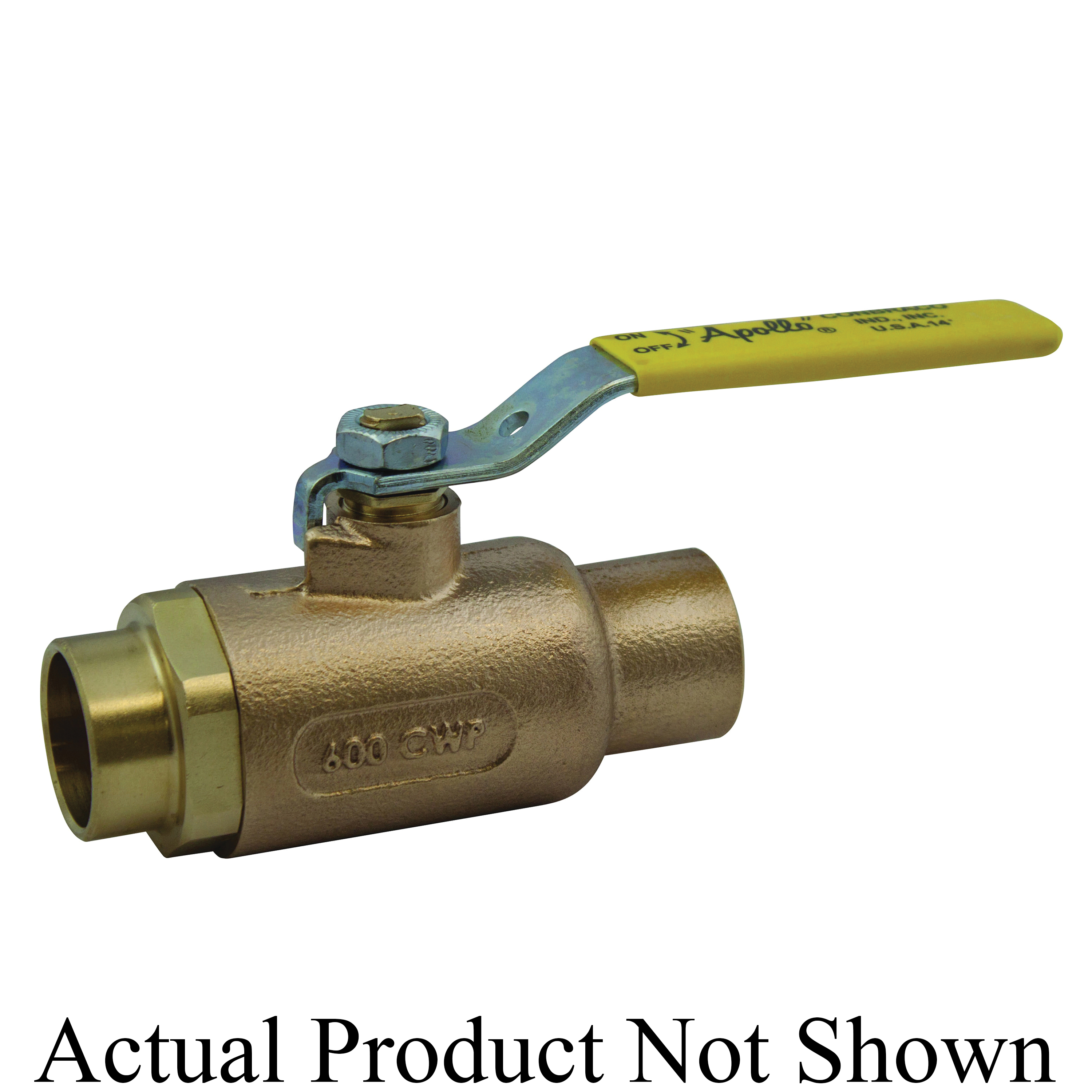

Apollo Valves 70-200 70-209-01 2-Piece Ball Valve

Apollo® Valves 70-200 70-209-01 2-Piece Ball Valve, 2-1/2 in Nominal, Solder Connection, 600 psi Pressure, 350 deg F

Apollo® Valves 70-200 70-209-01 2-Piece Ball Valve, 2-1/2 in Nominal, Solder Connection, 600 psi Pressure, 350 deg F 70-209-01

The Apollo® 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a two piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo® South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® Valves 2-Piece Ball Valve, Series: 70-200, Nominal Size: 2-1/2 in, Connection Type: Solder, Port Type: Standard, Pressure Rating: 600 psi, Actuator Type: Manual, Orifice Size: 2 in, Inlet to Outlet Length: 7.51 in, Top to Inlet Center: 3.72 in, Operator Type: Lever Handle, Flow Coefficient (Cv): 190 Cv, Material Standard: C84400, Body Material: Bronze, Seat Material: Reinforced PTFE, Stem Material: Brass, Seal Material: PTFE, Packing Material: Modified PTFE, Handle Material: Steel, Ball Material: Chrome Brass, Softgoods Material: Modified PTFE/Reinforced PTFE, Temperature Rating: 350 deg F, Domestic/Import: Domestic

Actuator Type      :      Manual
Ball Material      :      Chrome Brass
Body Material      :      Bronze
Connection Type      :      Solder
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      190 Cv
Handle Material      :      Steel
Inlet to Outlet Length      :      7.51 in
Material Standard      :      C84400
Nominal Size      :      2-1/2 in
Operator Type      :      Lever Handle
Orifice Size      :      2 in
Packing Material      :      Modified PTFE
Port Type      :      Standard
Pressure Rating      :      600 psi
Seal Material      :      PTFE
Seat Material      :      Reinforced PTFE
Series      :      70-200
Softgoods Material      :      Modified PTFE/Reinforced PTFE
Stem Material      :      Brass
Temperature Rating      :      350 deg F
Top to Inlet Center      :      3.72 in
  • Premium materials and heavy-duty construction
  • EZ-Solder™ bronze materials
  • Adjustable stem packing gland
  • Blowout-proof stem design
  • 100% factory tested
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_209_01_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_209_01_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70_209_01_Specification_Sheet.pdf
