Apollo® Valves 7010901 7010901

Apollo Valves 7010901 2-Piece Ball Valve

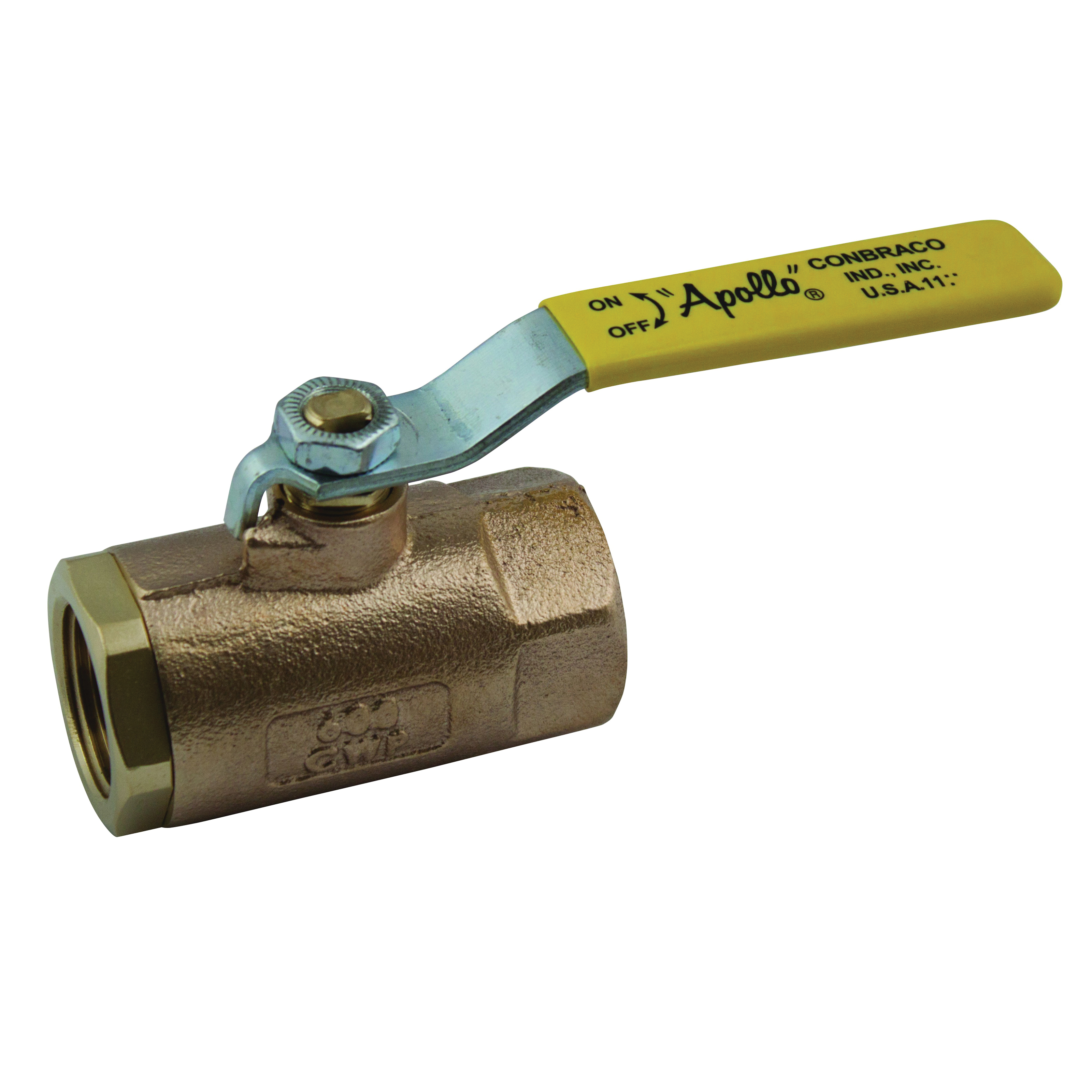

Apollo® Valves 70-100 Series 7010901 2-Piece Ball Valve, 2-1/2 in, FNPT, Bronze, 600 psi

Apollo® Valves 70-100 Series 7010901 2-Piece Ball Valve, 2-1/2 in, FNPT, Bronze, 600 psi 7010901

The Apollo® Valves 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo® Valves south carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® Valves 2-Piece Ball Valve, Series: 70-100 Series, 2-1/2 in Nominal, FNPT Connection, Standard Port, Standard, 600 psi, Steam, Vacuum Media, 6-1/4 in Inlet to Outlet Length, 3.72 in Top to Inlet Center, 2 in Opening, Lever Handle Operator, ASTM B584 Grade C84400 Material Standard, Bronze Body, RPTFE Seat, PTFE Seal, MPTFE Packing, Steel/Vinyl Handle, Bronze Ball, Bronze/Yellow, -20 to 500 deg F, Domestic/Import: Domestic

Ball Material      :      Bronze
Body Material      :      Bronze
Color      :      Bronze/Yellow
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Handle Material      :      Steel/Vinyl
Inlet to Outlet Length      :      6-1/4 in
Material Standard      :      ASTM B584 Grade C84400
Media      :      Steam, Vacuum
Nominal Size      :      2-1/2 in
Opening Size      :      2 in
Operator Type      :      Lever Handle
Packing Material      :      MPTFE
Port Type      :      Standard
Pressure Rating      :      600 psi
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      70-100 Series
Temperature Rating      :      -20 to 500 deg F
Top to Inlet Center      :      3.72 in
  • Premium materials and heavy-duty construction
  • Adjustable stem packing
  • Blowout-proof stem design
  • RPTFE seats and MPTFE stem packing rings
  • Chromium-plated ball
  • 100% factory tested
  • Manufactured in USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_701415064_Specification_Sheet.pdf
