Apollo® Valves 7080346 7080346

Apollo Valves 7080346 Ball Valve

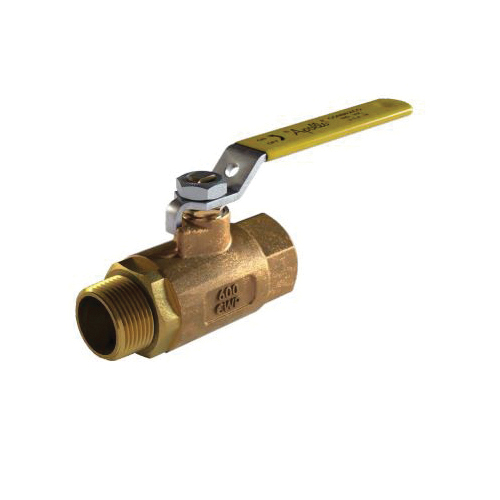

Apollo® Valves 70-800 Series 7080346 Ball Valve, 1/2 in, MNPT x FNPT, Bronze, 600 psi

Apollo® Valves 70-800 Series 7080346 Ball Valve, 1/2 in, MNPT x FNPT, Bronze, 600 psi 7080346

The Apollo® Valves 70-800 series is a standard port ball valve that eliminates the need for an extra nipple when connecting to female connections.
Apollo® Valves Ball Valve, Series: 70-800 Series, 1/2 in Nominal, MNPT x FNPT Connection, Full Port, Standard, 600 psi, Steam, Vacuum Media, 2.81 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, 1/2 in Opening, Latch Lock Lever Handle Operator, ASTM B584 Grade C84400, B16 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, RPTFE Packing, Steel/Vinyl Handle, Brass Ball, Domestic/Import: Domestic

Ball Material      :      Brass
Body Material      :      Bronze
Configuration      :      Standard
Connection Type      :      MNPT x FNPT
Domestic/Import      :      Domestic
Handle Material      :      Steel/Vinyl
Inlet to Outlet Length      :      2.81 in
Material Standard      :      ASTM B584 Grade C84400, B16
Media      :      Steam, Vacuum
Nominal Size      :      1/2 in
Opening Size      :      1/2 in
Operator Type      :      Latch Lock Lever Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      600 psi
Seat Material      :      RPTFE
Series      :      70-800 Series
Stem Material      :      Brass
Top to Inlet Center      :      1.81 in
  • Adjustable packing gland
  • Blowout-proof stem design
  • RPTFE seats and stuffing box ring
  • Designed, manufactured and 100% factory tested in the USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_7080346_Specification_Sheet.pdf
