Apollo® Valves 70LF-204-HC 70LF-204-HC

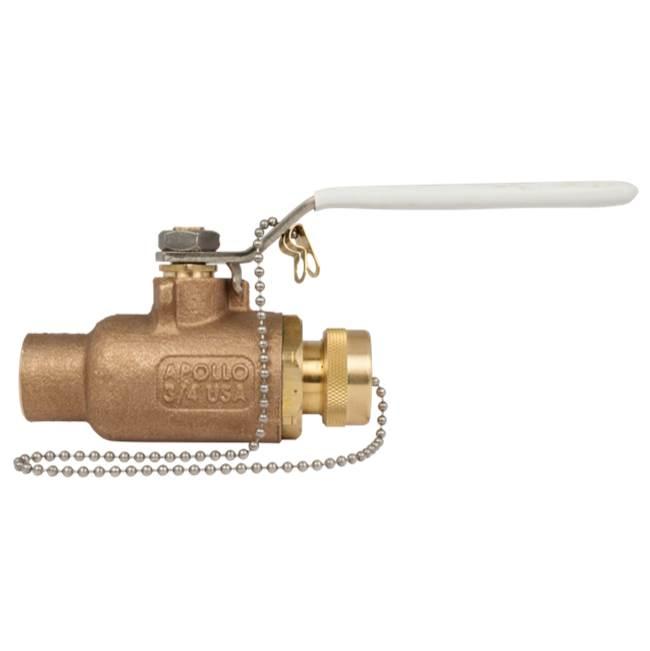

Apollo Valves 70LF-204-HC 2-Piece Ball Valve

Apollo® Valves 70LF-200 Series 70LF-204-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder Weld Connection, 350 deg F

Apollo® Valves 70LF-200 Series 70LF-204-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder Weld Connection, 350 deg F 70LF-204-HC

The Apollo® 70LF Series two-piece regular port ball valve as the same rugged features as the industry standard 70 Series valves with the added advantage of DZR lead-free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo® performance with a wide range of popular options.
Apollo® Valves 2-Piece Ball Valve, Series: 70LF-200 Series, 3/4 in Nominal, Solder Weld Connection, Regular Port, 150 psig, 600 psig, Gas, Water Media, Lever Actuator, 0.68 in Orifice, 3.87 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, 30 Cv Flow Coefficient (Cv), ASTM C89836, ASTM C27451, ASTM B16 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, RPTFE Packing, Steel Handle, Brass Ball, Lead-Free, 350 deg F, Domestic/Import: Domestic

Actuator Type      :      Lever
Ball Material      :      Brass
Body Material      :      Bronze
Connection Type      :      Solder Weld
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      30 Cv
Handle Material      :      Steel
Inlet to Outlet Length      :      3.87 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM C89836, ASTM C27451, ASTM B16
Media      :      Gas, Water
Nominal Size      :      3/4 in
Orifice Size      :      0.68 in
Packing Material      :      RPTFE
Port Type      :      Regular
Pressure Rating      :      150 psig, 600 psig
Seat Material      :      RPTFE
Series      :      70LF-200 Series
Stem Material      :      Brass
Temperature Rating      :      350 deg F
Top to Inlet Center      :      2.12 in
  • EZ Solder™ lead-free brass and bronze materials
  • Distinctive white lead-free handle grip and blue lead-free hang tag
  • RPTFE seats and stuffing box ring
  • Chromium-plated ball
  • 100% factory tested
  • Made in USA
  • Hose cap and chain
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70LF_106_01_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70LF_106_01_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/APV-70LF-100_200HC_SS1275.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_70LF_204_01_Specification_Sheet.pdf
