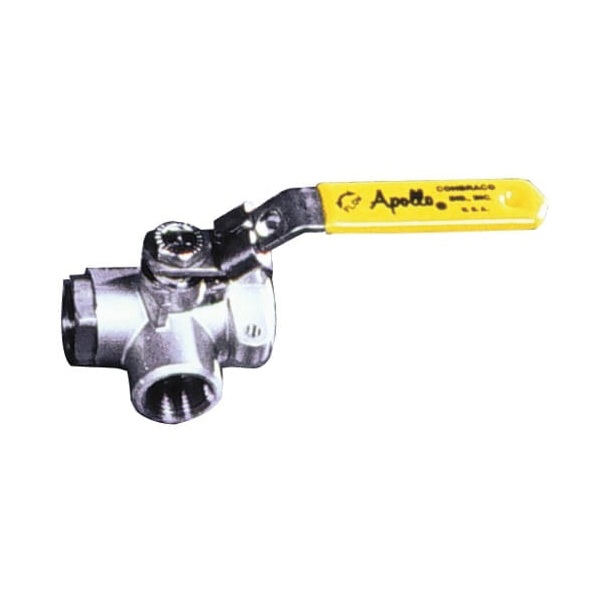

Apollo Valves 76-603-57A Ball Valve With Oxygen Cleaned
Apollo® Valves 76-600 Series 76-603-57A Ball Valve With Oxygen Cleaned, 1/2 in Nominal, FNPT Connection, 3-Way
Apollo® Valves 76-600 Series 76-603-57A Ball Valve With Oxygen Cleaned, 1/2 in Nominal, FNPT Connection, 3-Way 76-603-57A- Brand Name: Apollo® Valves
- Part Number: 76-603-57A
- UPC: 670750238840
- Check Stock
Add To Favorites ListApollo® Valves Ball Valve With Oxygen Cleaned, Series: 76-600 Series, 1/2 in Nominal, FNPT Connection, Standard Port, 800 psig, Lever Handle Actuator, 2.32 in Inlet to Outlet Length, 1.8 in Top to Inlet Center, 0.505 in Opening, 3-Way, 5.4 Cv Flow Coefficient (Cv), ASTM A276, ASTM A351 Grade CF8M Material Standard, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, MPTFE Packing, 304 Stainless Steel Handle, 316 Stainless Steel Ball, Lead-Free, Domestic/Import: Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Stainless Steel |
| Connection Type | : | FNPT |
| Domestic/Import | : | Domestic |
| Flow Coefficient (Cv) | : | 5.4 Cv |
| Handle Material | : | 304 Stainless Steel |
| Inlet to Outlet Length | : | 2.32 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM A276, ASTM A351 Grade CF8M |
| Nominal Size | : | 1/2 in |
| Number of Ports/Ways | : | 3-Way |
| Opening Size | : | 0.505 in |
| Packing Material | : | MPTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 800 psig |
| Seat Material | : | RPTFE |
| Series | : | 76-600 Series |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 1.8 in |
- Reinforced seats
- Blowout-proof stem
- Adjustable packing gland
- Investment cast body
Instruction/Installation Manual
