Apollo® Valves 7610101GSA 7610101GSA

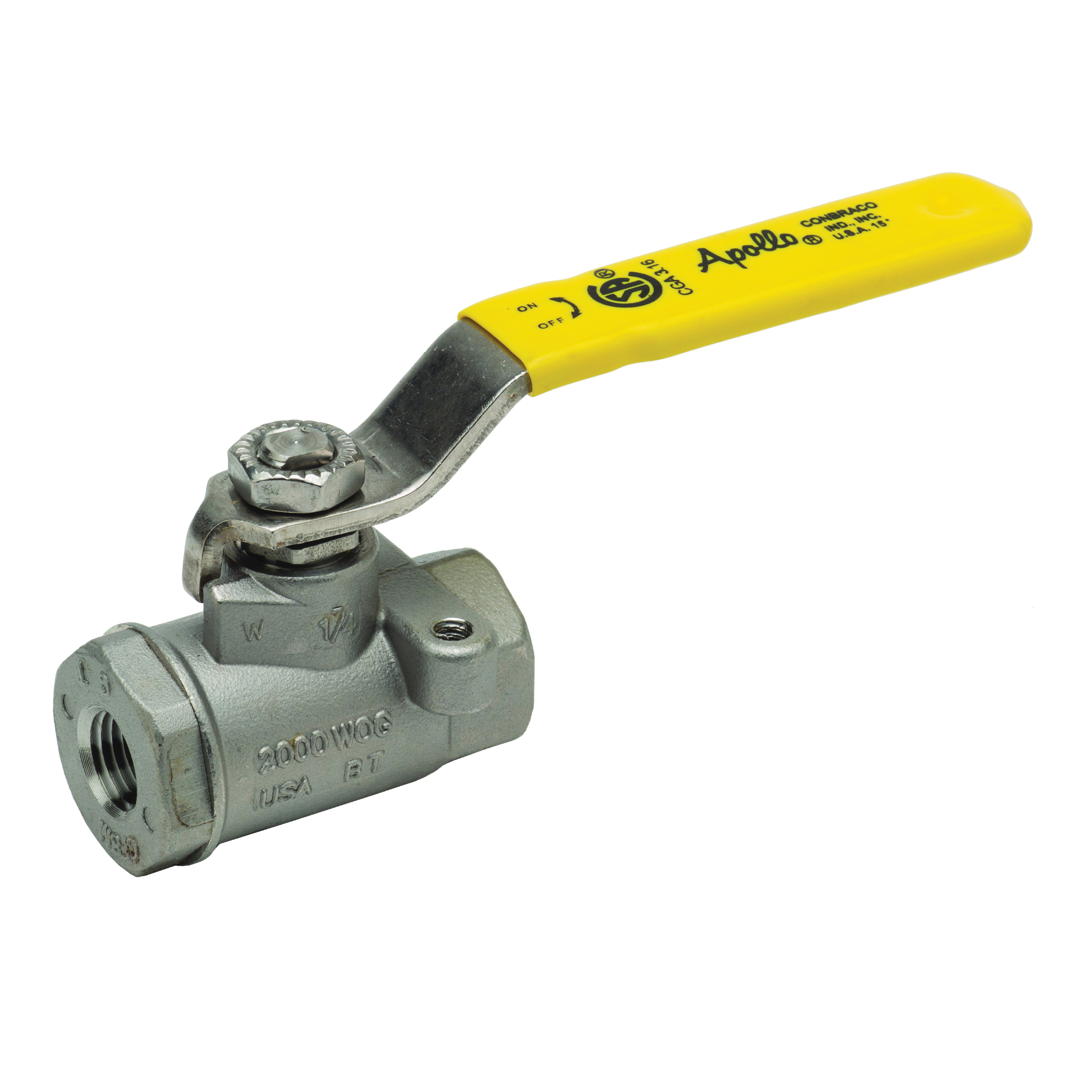

Apollo Valves 7610101GSA 2-Piece Straight Ball Valve With Mounting Pad

Apollo® Valves 76-100 Series 7610101GSA 2-Piece Straight Ball Valve With Mounting Pad, 1/4 in, FNPT, Stainless Steel

Apollo® Valves 76-100 Series 7610101GSA 2-Piece Straight Ball Valve With Mounting Pad, 1/4 in, FNPT, Stainless Steel 7610101GSA

Apollo® Valves 2-Piece Straight Ball Valve, Series: 76-100 Series, 1/4 in Nominal, FNPT Connection, Standard Port, Standard, 2000 psig, 2.05 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, 2-Way, Lever Handle Operator, 2.3 Cv Flow Coefficient (Cv), UNS A351-CF8M Material Standard, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Seal, MPTFE Packing, 316 Stainless Steel Handle, 316 Stainless Steel Ball, Silver, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
Color      :      Silver
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      2.3 Cv
Handle Material      :      316 Stainless Steel
Inlet to Outlet Length      :      2.05 in
Material Standard      :      UNS A351-CF8M
Nominal Size      :      1/4 in
Number of Ports/Ways      :      2-Way
Operator Type      :      Lever Handle
Packing Material      :      MPTFE
Port Type      :      Standard
Pressure Rating      :      2000 psig
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      76-100 Series
Stem Material      :      316 Stainless Steel
Top to Inlet Center      :      1.71 in
  • Investment cast components
  • Reinforced seats
  • Mounting pad for easy actuator mounting
  • Blowout-proof stem design
  • Adjustable packing gland
  • Stainless steel lever and nut
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_7610101GSA_Full_Engineering_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_7610101GSA_Specification_Sheet.pdf
