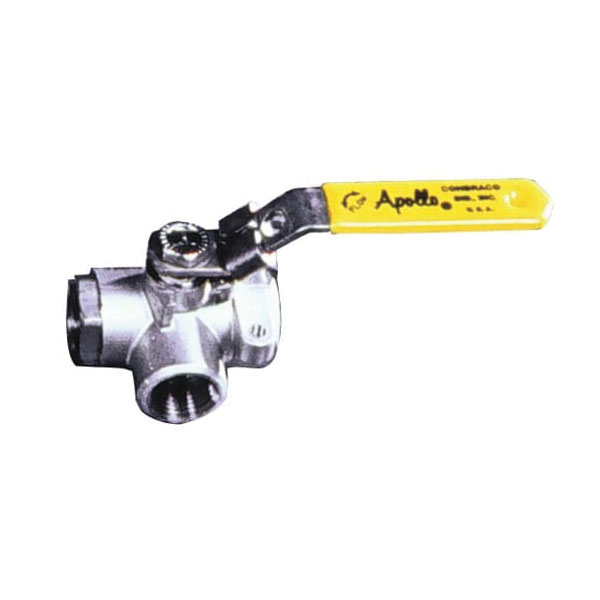

Apollo Valves 7660801A Diversion Ball Valve
Apollo® Valves 76-600 Series 7660801A Diversion Ball Valve, 2 in, FNPT x FNPT, Stainless Steel, 800 psig
Apollo® Valves 76-600 Series 7660801A Diversion Ball Valve, 2 in, FNPT x FNPT, Stainless Steel, 800 psig 7660801A- Brand Name: Apollo® Valves
- Part Number: 7660801A
- UPC: 670750854682
- Check Stock
Add To Favorites ListThe Apollo® Valves 76-600 Series is a standard port, threaded three way stainless steel ball valve.
Apollo® Valves Diversion Ball Valve, Series: 76-600 Series, 2 in Nominal, FNPT x FNPT Connection, Standard Port, Standard, 800 psig, Water Media, 5.43 in Inlet to Outlet Length, 3.22 in Top to Inlet Center, 1.515 in Opening, 3-Way, Lever Handle Operator, 47 Cv Flow Coefficient (Cv), ASTM A351-CF8M Material Standard, Stainless Steel Body, RPTFE Seat, Stainless Steel Stem, PTFE Seal, MPTFE Packing, Stainless Steel Handle, Stainless Steel Ball, Lead-Free, Silver, Domestic/Import: Domestic
| Ball Material | : | Stainless Steel |
| Body Material | : | Stainless Steel |
| Color | : | Silver |
| Configuration | : | Standard |
| Connection Type | : | FNPT x FNPT |
| Flow Coefficient (Cv) | : | 47 Cv |
| Handle Material | : | Stainless Steel |
| Inlet to Outlet Length | : | 5.43 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM A351-CF8M |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Number of Ports/Ways | : | 3-Way |
| Opening Size | : | 1.515 in |
| Operator Type | : | Lever Handle |
| Packing Material | : | MPTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 800 psig |
| Seal Material | : | PTFE |
| Seat Material | : | RPTFE |
| Series | : | 76-600 Series |
| Stem Material | : | Stainless Steel |
| Top to Inlet Center | : | 3.22 in |
- Reinforced seats
- Blowout-proof stem design
- Adjustable packing gland
