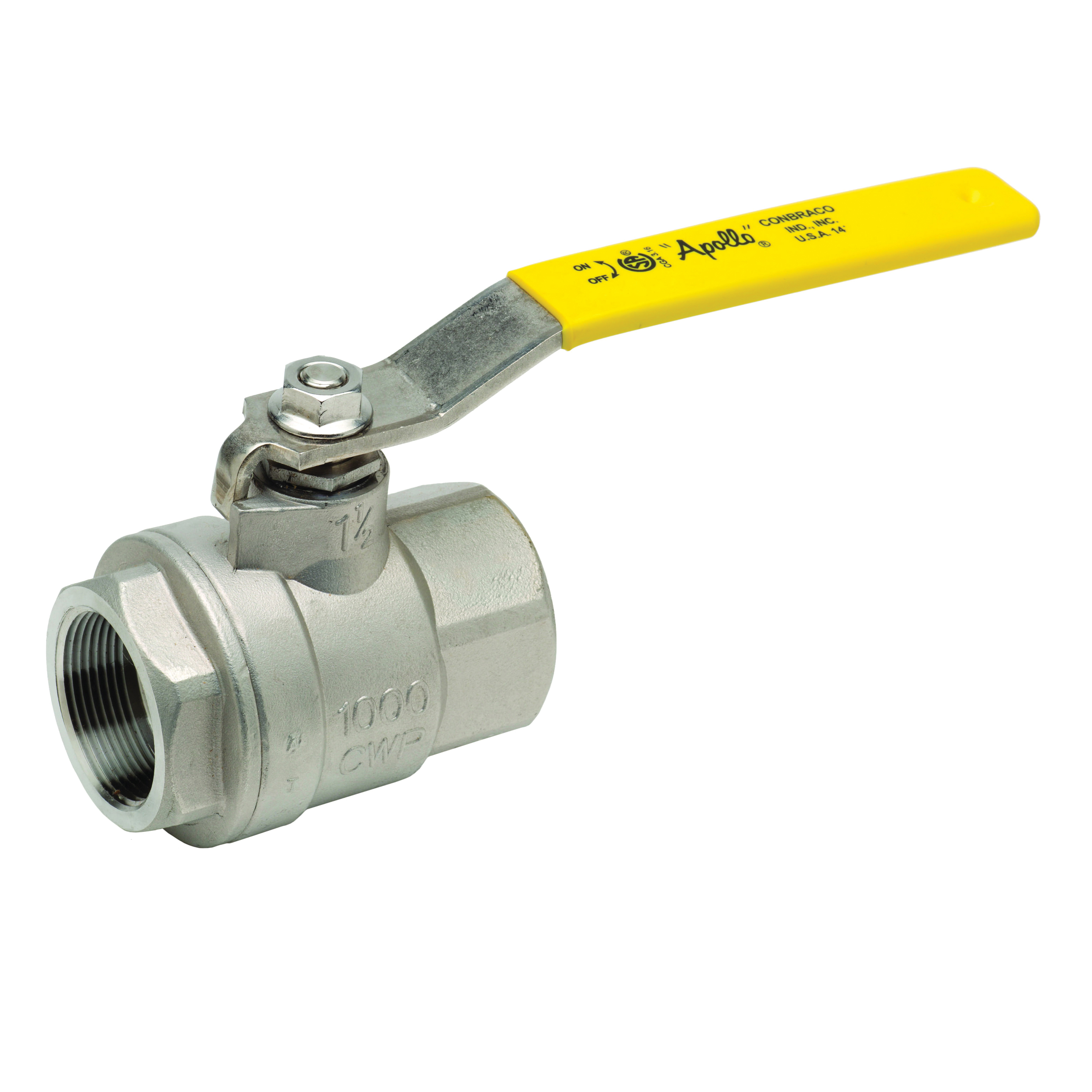

Apollo Valves 76F10327GS 2-Piece Ball Valve With Stainless Steel Latch Lock Lever and Nut

Apollo® Valves 76F-100 Series 76F10327GS 2-Piece Ball Valve With Stainless Steel Latch Lock Lever and Nut, 1/2 in, FNPT

Apollo® Valves 76F-100 Series 76F10327GS 2-Piece Ball Valve With Stainless Steel Latch Lock Lever and Nut, 1/2 in, FNPT 76F10327GS

Apollo® Valves 2-Piece Ball Valve, Series: 76F-100 Series, 1/2 in Nominal, FNPT Connection, Full Port, Standard, 1000 psig, Saturated Steam, Vacuum, Water Media, 2.35 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, 1/2 in Opening, Lever Handle Operator, 15 Cv Flow Coefficient (Cv), ASTM A351 CF8M, A276 Material Standard, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, MPTFE Packing, Stainless Steel/Vinyl Handle, 316 Stainless Steel Ball, Lead-Free, Silver, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
Color      :      Silver
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      15 Cv
Handle Material      :      Stainless Steel/Vinyl
Inlet to Outlet Length      :      2.35 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM A351 CF8M, A276
Media      :      Saturated Steam, Vacuum, Water
Nominal Size      :      1/2 in
Opening Size      :      1/2 in
Operator Type      :      Lever Handle
Packing Material      :      MPTFE
Port Type      :      Full
Pressure Rating      :      1000 psig
Seal Material      :      RPTFE
Seat Material      :      RPTFE
Series      :      76F-100 Series
Stem Material      :      316 Stainless Steel
Top to Inlet Center      :      1.73 in
  • The Apollo® Valves 76F series is a two-piece full port stainless steel ball valve
  • 316 stainless steel investment cast components
  • Blowout-proof stem design
  • Adjustable packing gland
  • Stainless steel lever and nut
  • Proudly made in USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_76F10127GS_Specification_Sheet.pdf
