Apollo® Valves 77C-108-01A 77C-108-01A

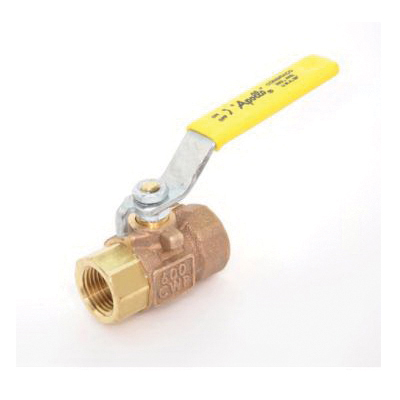

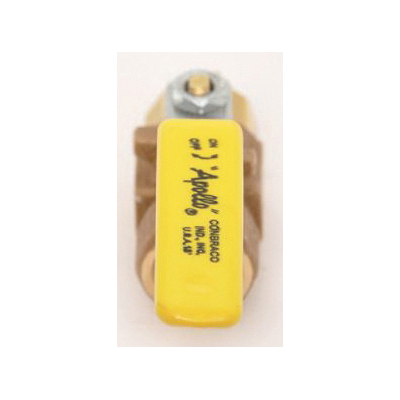

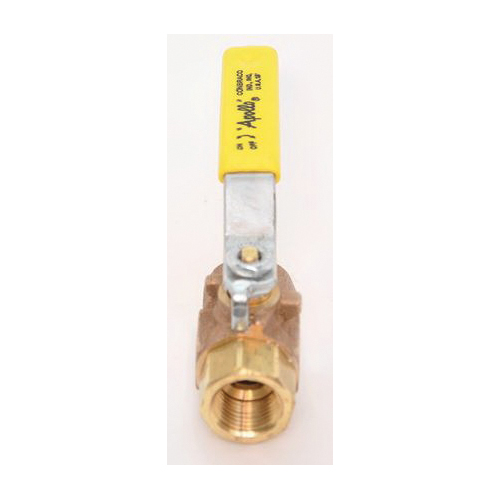

Apollo Valves 77C-108-01A 2-Piece Ball Valve

Apollo® Valves 77C-A Series 77C-108-01A 2-Piece Ball Valve, 2 in Nominal, NPT Connection, 150 psi, 600 psi Pressure

Apollo® Valves 77C-A Series 77C-108-01A 2-Piece Ball Valve, 2 in Nominal, NPT Connection, 150 psi, 600 psi Pressure 77C-108-01A

The Apollo® 77C-A "contractor Series" ball valve features a dezincification-resistant bronze body, premium RPTFE seats and stem packing and a "solid ball" design that delivers true full port flow performance. Cast and machined in Apollo® South Carolina manufacturing plants using proven ASTM materials. Not for use with potable water systems in USA.
Apollo® Valves 2-Piece Ball Valve, Series: 77C-A Series, 2 in Nominal, NPT Connection, Full Port, 150 psi, 600 psi, Lever Handle Actuator, 4.85 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, 2 in Opening, ASTM B584 Grade C84400, ASTM B16 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, RPTFE Seal, RPTFE Packing, Steel Handle, Brass Ball, Lead-Free, 450 deg F, Domestic/Import: Domestic

Actuator Type      :      Lever Handle
Ball Material      :      Brass
Body Material      :      Bronze
Connection Type      :      NPT
Domestic/Import      :      Domestic
Handle Material      :      Steel
Inlet to Outlet Length      :      4.85 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B584 Grade C84400, ASTM B16
Nominal Size      :      2 in
Opening Size      :      2 in
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      150 psi, 600 psi
Seal Material      :      RPTFE
Seat Material      :      RPTFE
Series      :      77C-A Series
Stem Material      :      Brass
Temperature Rating      :      450 deg F
Top to Inlet Center      :      3.68 in
  • Blowout-proof stem
  • Adjustable stem packing
  • Full port solid ball design
  • 100% factory tested
  • Vacuum service to 29 inHg
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_77C_108_01A_Specification_Sheet.pdf
