Apollo® Valves 77C10601A 77C10601A

Apollo Valves 77C10601A Ball Valve

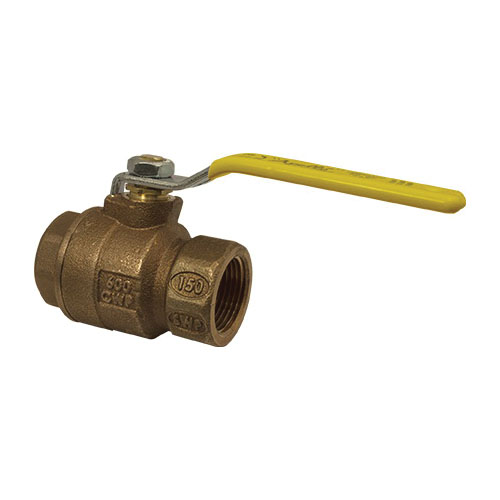

Apollo® Valves 77C-A Contractor Series 77C10601A Ball Valve, 1-1/4 in, FNPT x FNPT, Bronze, 600 psi

Apollo® Valves 77C-A Contractor Series 77C10601A Ball Valve, 1-1/4 in, FNPT x FNPT, Bronze, 600 psi 77C10601A

The Apollo® Valves 77C-A Contractor Series ball valve features a dezincification-resistant bronze body, premium RPTFE seats and stem packing and a solid ball design that delivers true full port flow performance. Cast and machined in Apollo® Valves South Carolina manufacturing plants using proven ASTM materials. Not for use with potable water systems in USA.
Apollo® Valves Ball Valve, Series: 77C-A Contractor Series, 1-1/4 in Nominal, FNPT x FNPT Connection, Full Port, Standard, 600 psi, 3-3/4 in Inlet to Outlet Length, 2.46 in Top to Inlet Center, 1-1/4 in Opening, Lever Handle Operator, 125 Cv Flow Coefficient (Cv), ASTM B584 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, RPTFE Packing, Steel/Vinyl Handle, Brass Ball, Lead-Free, Yellow, 450 deg F, Domestic/Import: Domestic

Ball Material      :      Brass
Body Material      :      Bronze
Color      :      Yellow
Configuration      :      Standard
Connection Type      :      FNPT x FNPT
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      125 Cv
Handle Material      :      Steel/Vinyl
Inlet to Outlet Length      :      3-3/4 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B584
Nominal Size      :      1-1/4 in
Opening Size      :      1-1/4 in
Operator Type      :      Lever Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      600 psi
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      77C-A Contractor Series
Stem Material      :      Brass
Temperature Rating      :      450 deg F
Top to Inlet Center      :      2.46 in
  • Blowout-proof stem design
  • 100% factory tested
  • Adjustable stem packing
