Apollo Valves 77CLF10427A Ball Valve

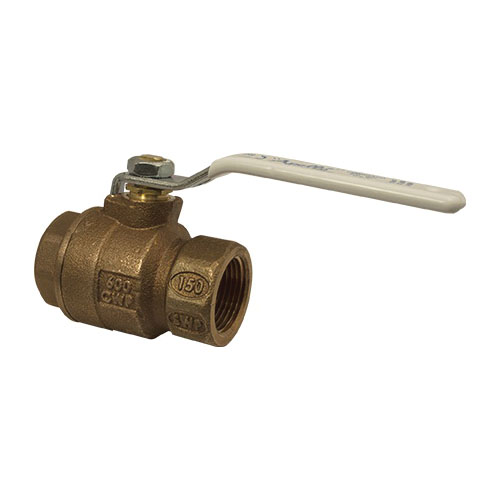

Apollo® Valves 77CLF-A Contractor Series 77CLF10427A Ball Valve, 3/4 in, FNPT x FNPT, Bronze, 600 psi

Apollo® Valves 77CLF-A Contractor Series 77CLF10427A Ball Valve, 3/4 in, FNPT x FNPT, Bronze, 600 psi 77CLF10427A

The Apollo® Valves 77CLF-A Contractor Series lead-free ball valve features a dezincification-resistant bronze body, premium RPTFE seats and stem packing and a solid ball design that delivers true full port flow performance. Cast and machined in Apollo® Valves South Carolina manufacturing plants using proven EZ-Solder™ lead-free materials.
Apollo® Valves Ball Valve, Series: 77CLF-A Contractor Series, 3/4 in Nominal, FNPT x FNPT Connection, Full Port, Standard, 600 psi, 2.67 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, 3/4 in Opening, Locking Handle Operator, 36 Cv Flow Coefficient (Cv), ASTM B584 Material Standard, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, RPTFE Packing, Steel/Vinyl Handle, Brass Ball, Lead-Free, Yellow, 450 deg F, Domestic/Import: Domestic

Ball Material      :      Brass
Body Material      :      Bronze
Color      :      Yellow
Configuration      :      Standard
Connection Type      :      FNPT x FNPT
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      36 Cv
Handle Material      :      Steel/Vinyl
Inlet to Outlet Length      :      2.67 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B584
Nominal Size      :      3/4 in
Opening Size      :      3/4 in
Operator Type      :      Locking Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      600 psi
Seal Material      :      PTFE
Seat Material      :      RPTFE
Series      :      77CLF-A Contractor Series
Stem Material      :      Brass
Temperature Rating      :      450 deg F
Top to Inlet Center      :      1.91 in
  • Easily identifiable white handle and blue lead-free hang tag
  • Blowout-proof stem design
