Apollo® Valves 77F10827 77F10827

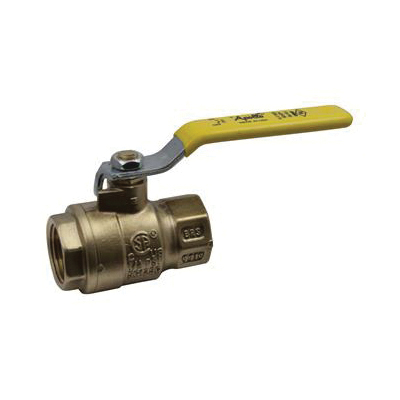

Apollo Valves 77F10827 2-Piece Ball Valve

Apollo® Valves 77F-100 Series 77F10827 2-Piece Ball Valve, 2 in, FNPT, Brass, 600 psi

Apollo® Valves 77F-100 Series 77F10827 2-Piece Ball Valve, 2 in, FNPT, Brass, 600 psi 77F10827

The Apollo® Valves 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control application including HVAC, fuel gas, fire protection, irrigation and more. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
Apollo® Valves 2-Piece Ball Valve, Series: 77F-100 Series, 2 in Nominal, FNPT Connection, Full Port, Standard, 600 psi, Steam, Vacuum Media, 4.74 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, 2 in Opening, Locking Handle Operator, ASTM B283 Grade C37700, B16 Grade C36000 Material Standard, Brass Body, RPTFE Seat, Brass Stem, RPTFE Packing, Polyvinyl/Steel Handle, Brass Ball, Bronze/Yellow, 0 to 400 deg F, Domestic/Import: Domestic

Ball Material      :      Brass
Body Material      :      Brass
Color      :      Bronze/Yellow
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Handle Material      :      Polyvinyl/Steel
Inlet to Outlet Length      :      4.74 in
Material Standard      :      ASTM B283 Grade C37700, B16 Grade C36000
Media      :      Steam, Vacuum
Nominal Size      :      2 in
Opening Size      :      2 in
Operator Type      :      Locking Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      600 psi
Seat Material      :      RPTFE
Series      :      77F-100 Series
Stem Material      :      Brass
Temperature Rating      :      0 to 400 deg F
Top to Inlet Center      :      3.69 in
  • Heavy pattern forged design
  • Corrosion-resistant materials
  • Premium RPTFE seats and packing
  • Adjustable stem packing
  • Blowout-proof stem
  • Silicone-free assembly
  • 100% factory tested
  • Made in the USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_77F10727_Specification_Sheet.pdf
