Apollo Valves 77FLF10127 2-Piece Ball Valve

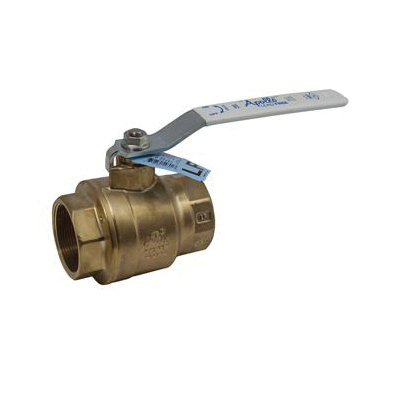

Apollo® Valves 77FLF-100 Series 77FLF10127 2-Piece Ball Valve, 1/4 in, FNPT, Brass, 600 psi

Apollo® Valves 77FLF-100 Series 77FLF10127 2-Piece Ball Valve, 1/4 in, FNPT, Brass, 600 psi 77FLF10127

The Apollo® Valves 77FLF-100 series is a lead-free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
Apollo® Valves 2-Piece Ball Valve, Series: 77FLF-100 Series, 1/4 in Nominal, FNPT Connection, Full Port, Standard, 600 psi, Steam, Vacuum Media, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, 0.38 in Opening, Locking Handle Operator, UNS C27451 Material Standard, Brass Body, RPTFE Seat, Brass Stem, RPTFE Packing, Polyvinyl/Steel Handle, Brass Ball, Lead-Free, Bronze/Yellow, 0 to 400 deg F, Domestic/Import: Domestic

Ball Material      :      Brass
Body Material      :      Brass
Color      :      Bronze/Yellow
Configuration      :      Standard
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Handle Material      :      Polyvinyl/Steel
Inlet to Outlet Length      :      1.62 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      UNS C27451
Media      :      Steam, Vacuum
Nominal Size      :      1/4 in
Opening Size      :      0.38 in
Operator Type      :      Locking Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      600 psi
Seat Material      :      RPTFE
Series      :      77FLF-100 Series
Stem Material      :      Brass
Temperature Rating      :      0 to 400 deg F
Top to Inlet Center      :      1.61 in
  • Lead-free materials and approval
  • Heavy pattern forged design
  • Full port flow
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blowout-proof stem
  • Dezincification-resistant materials
  • 100% factory tested
  • Silicone-free assembly
  • Made in the USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_77FLF10127_Specification_Sheet.pdf
