Apollo® Valves 77FLF14901 77FLF14901

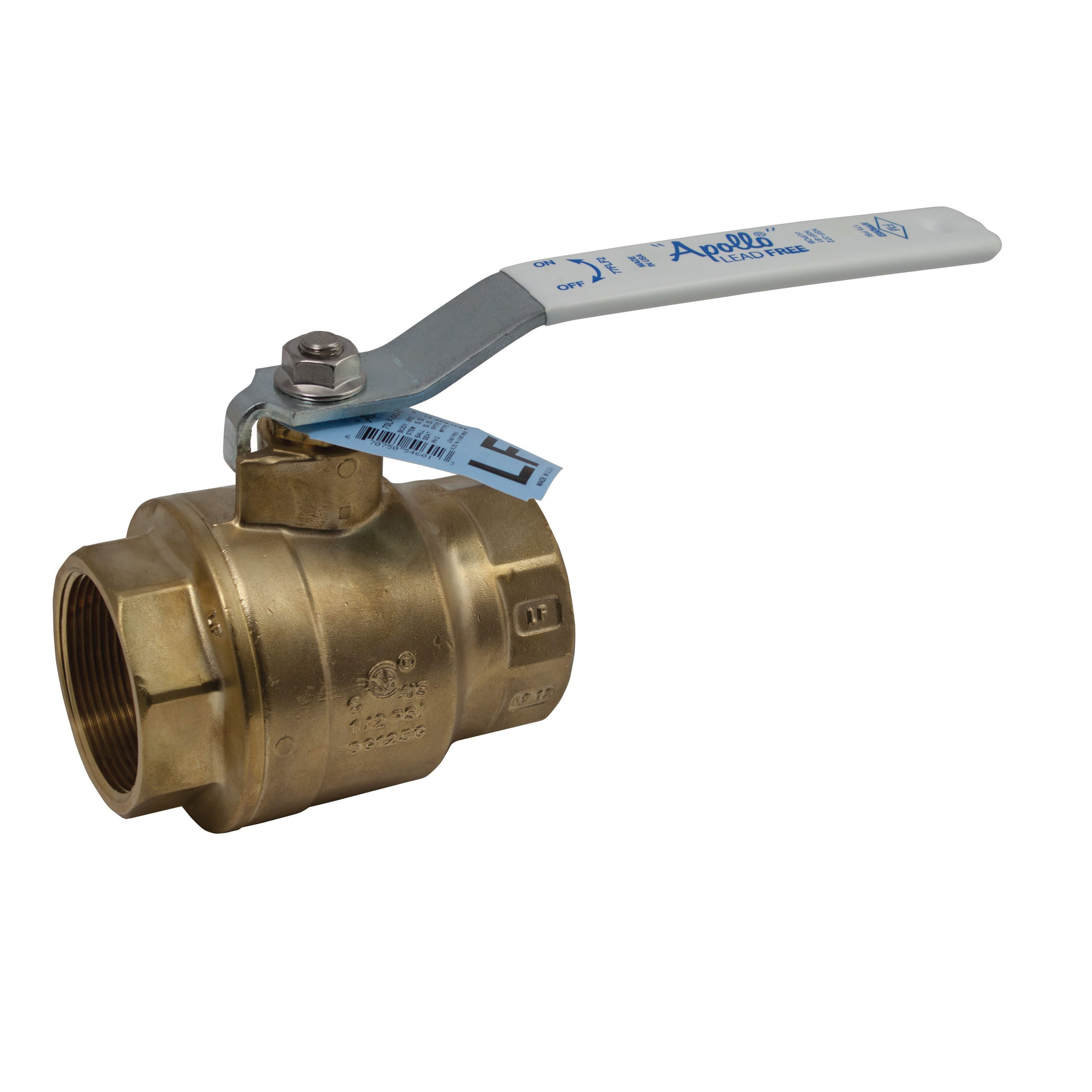

Apollo Valves 77FLF14901 Ball Valve

Apollo® Valves 77FLF-100 Series 77FLF14901 Ball Valve, 2-1/2 in, FNPT x FNPT, Brass, 400 psi

Apollo® Valves 77FLF-100 Series 77FLF14901 Ball Valve, 2-1/2 in, FNPT x FNPT, Brass, 400 psi 77FLF14901

The Apollo® Valves 77FLF-100 Series is a lead-free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
Apollo® Valves Ball Valve, Series: 77FLF-100 Series, 2-1/2 in Nominal, FNPT x FNPT Connection, Full Port, Standard, 400 psi, Water Media, 5.98 in Inlet to Outlet Length, 4.14 in Top to Inlet Center, 2-1/2 in Opening, Lever Handle Operator, UNS C27451 Material Standard, Brass Body, RPTFE Seat, Stainless Steel Stem, RPTFE Packing, Polyvinyl/Steel Handle, Stainless Steel Ball, Lead-Free, Bronze/Yellow, 0 to 400 deg F, 5 x 2 x 3 in, Domestic/Import: Domestic

Ball Material      :      Stainless Steel
Body Material      :      Brass
Color      :      Bronze/Yellow
Configuration      :      Standard
Connection Type      :      FNPT x FNPT
Dimensions      :      5 x 2 x 3 in
Domestic/Import      :      Domestic
Handle Material      :      Polyvinyl/Steel
Inlet to Outlet Length      :      5.98 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      UNS C27451
Media      :      Water
Nominal Size      :      2-1/2 in
Opening Size      :      2-1/2 in
Operator Type      :      Lever Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      400 psi
Seat Material      :      RPTFE
Series      :      77FLF-100 Series
Stem Material      :      Stainless Steel
Temperature Rating      :      0 to 400 deg F
Top to Inlet Center      :      4.14 in
  • Heavy pattern forged design
  • Adjustable stem packing
  • Blowout-proof stem design
  • Dezincification-resistant materials
  • 100% factory tested
  • Silicone-free assembly
