Apollo® Valves 77VLF-100-01 77VLF-100-01

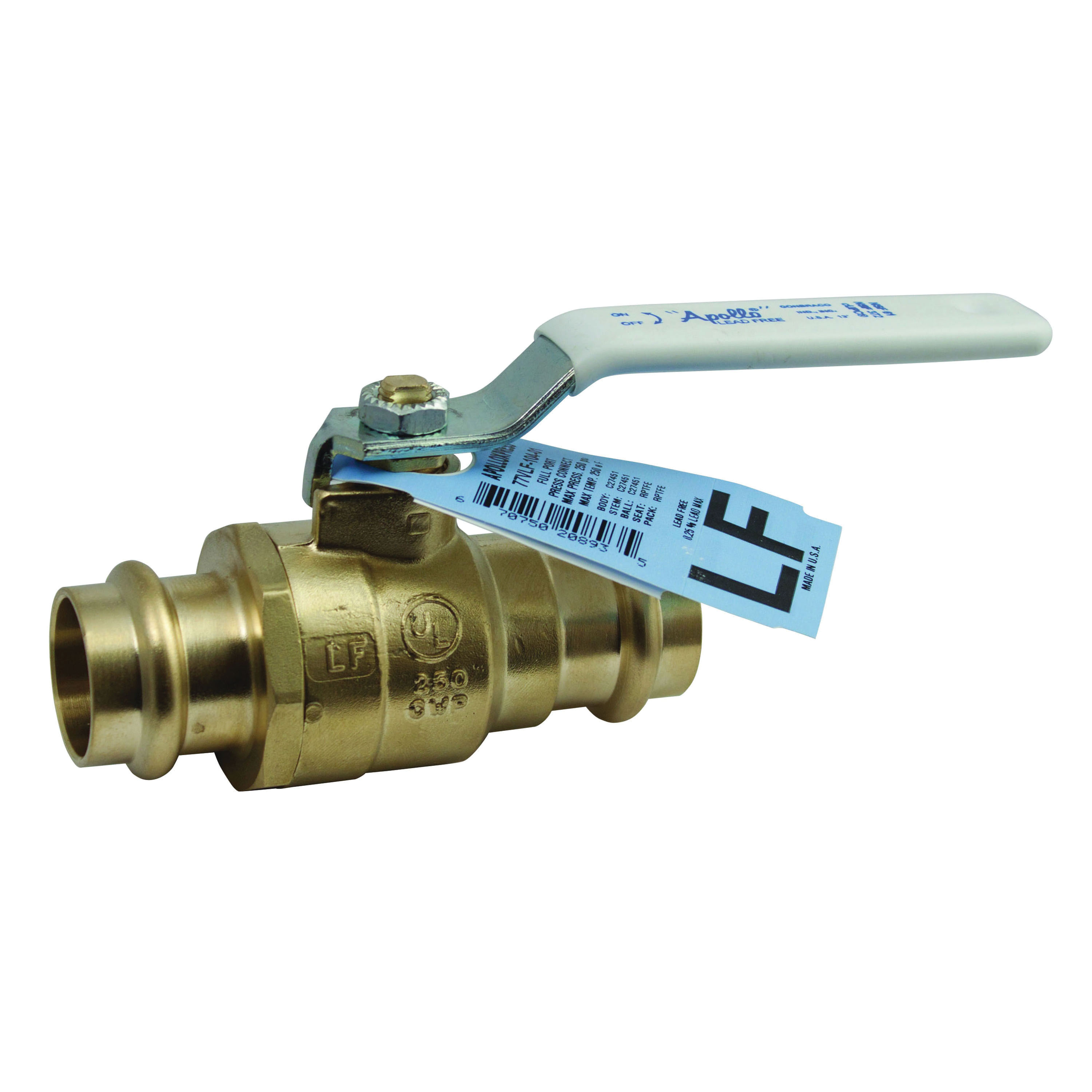

Apollo Valves 77VLF-100-01 2-Piece Ball Valve

Apollo® Valves APOLLOPRESS® 77VLF-100-01 2-Piece Ball Valve, 3 in Nominal, EzPress Connection, 300 psi Pressure

Apollo® Valves APOLLOPRESS® 77VLF-100-01 2-Piece Ball Valve, 3 in Nominal, EzPress Connection, 300 psi Pressure 77VLF-100-01

The APOLLOPRESS® 77VLF series lead-free ball valve is ideal for installation in most plumbing and heating systems including potable water. Features leak before Press® technology and 300 psig maximum working pressure. Proudly made in the USA.
Apollo® Valves 2-Piece Ball Valve, 3 in Nominal, Connection Type: EzPress, Full Port, 300 psi, Chilled, Hot Water Media, 9.45 in L Inlet to Outlet, 5.03 in Top to Inlet Center, Standard Lever Handle Operator, Material Standard: ASTM B16-C36000, Brass Body, RPTFE Seat, 316 Stainless Steel Stem, EPDM Seal, RPTFE Packing, Polyvinyl/Steel Handle, 316 Stainless Steel Ball, Nylon Softgoods, Lead-Free/Contains Lead: Lead-Free, 0 to 250 deg F

Ball Material      :      316 Stainless Steel
Body Material      :      Brass
Connection Type      :      EzPress
Handle Material      :      Polyvinyl/Steel
Inlet to Outlet Length      :      9.45 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B16-C36000
Media      :      Chilled, Hot Water
Nominal Size      :      3 in
Operator Type      :      Standard Lever Handle
Packing Material      :      RPTFE
Port Type      :      Full
Pressure Rating      :      300 psi
Seal Material      :      EPDM
Seat Material      :      RPTFE
Series      :      77VLF
Softgoods Material      :      Nylon
Stem Material      :      316 Stainless Steel
Temperature Rating      :      0 to 250 deg F
Top to Inlet Center      :      5.03 in
  • Lead-free, ANSI 3rd party certified and listed
  • Heavy pattern forged design
  • Adjustable stem packing
  • Fast, reliable, economical press installation
  • Ridgid® XLC Press® tool compatible
  • Leak before Press® technology
  • Blow-out-proof stem design
  • Dezincification-resistant
  • Silicone-free assembly
  • 100% factory tested
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_77VLF_100_01_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_77VLF_100_01_Specification_Sheet.pdf
