Apollo Valves 78-668-02 Purge and Drain Ball Valve

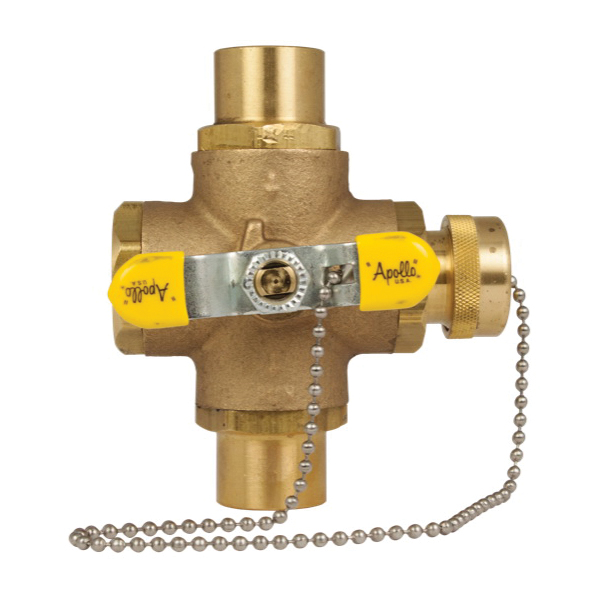

Apollo® Valves 78-668-02 Purge and Drain Ball Valve, 1 in Nominal, Solder x Hose Connection, Bronze Body

Apollo® Valves 78-668-02 Purge and Drain Ball Valve, 1 in Nominal, Solder x Hose Connection, Bronze Body 78-668-02

Apollo® Valves Purge and Drain Ball Valve, 1 in Nominal, Solder x Hose, 600 psi WOG Non-Shock, Lever Handle Operator, ASTM B-16 Material, Bronze Body, RPTFE Seat, 316 Stainless Steel Seal, Chrome-Plated Trim, RPTFE Packing, Zinc-Plated Steel, Vinyl Handle, 4.82 in L x 5.33 in H

Body Material      :      Bronze
Connection Type      :      Solder x Hose
Dimensions      :      4.82 in L x 5.33 in H
Handle Material      :      Zinc-Plated Steel, Vinyl
Material Standard      :      ASTM B-16
Nominal Size      :      1 in
Operator Type      :      Lever Handle
Packing Material      :      RPTFE
Pressure Rating      :      600 psi WOG Non-Shock
Seal Material      :      316 Stainless Steel
Seat Material      :      RPTFE
Trim Material      :      Chrome-Plated
  • Solder end flow port, hose connection drain port
  • Reinforced seats
  • Hose thread connection for disposal of drained media
  • Blow-out-proof stem design
  • Adjustable packing gland
  • Furnished with dust cover and chain
  • Zinc-plated steel with vinyl lever and grip, RPTFE steam packing and bearing, Zinc-plated steel lever nut, 316 stainless steel washer, B16 solder retainer, hose retainer, port cap, stem, gland screw and dust cover
