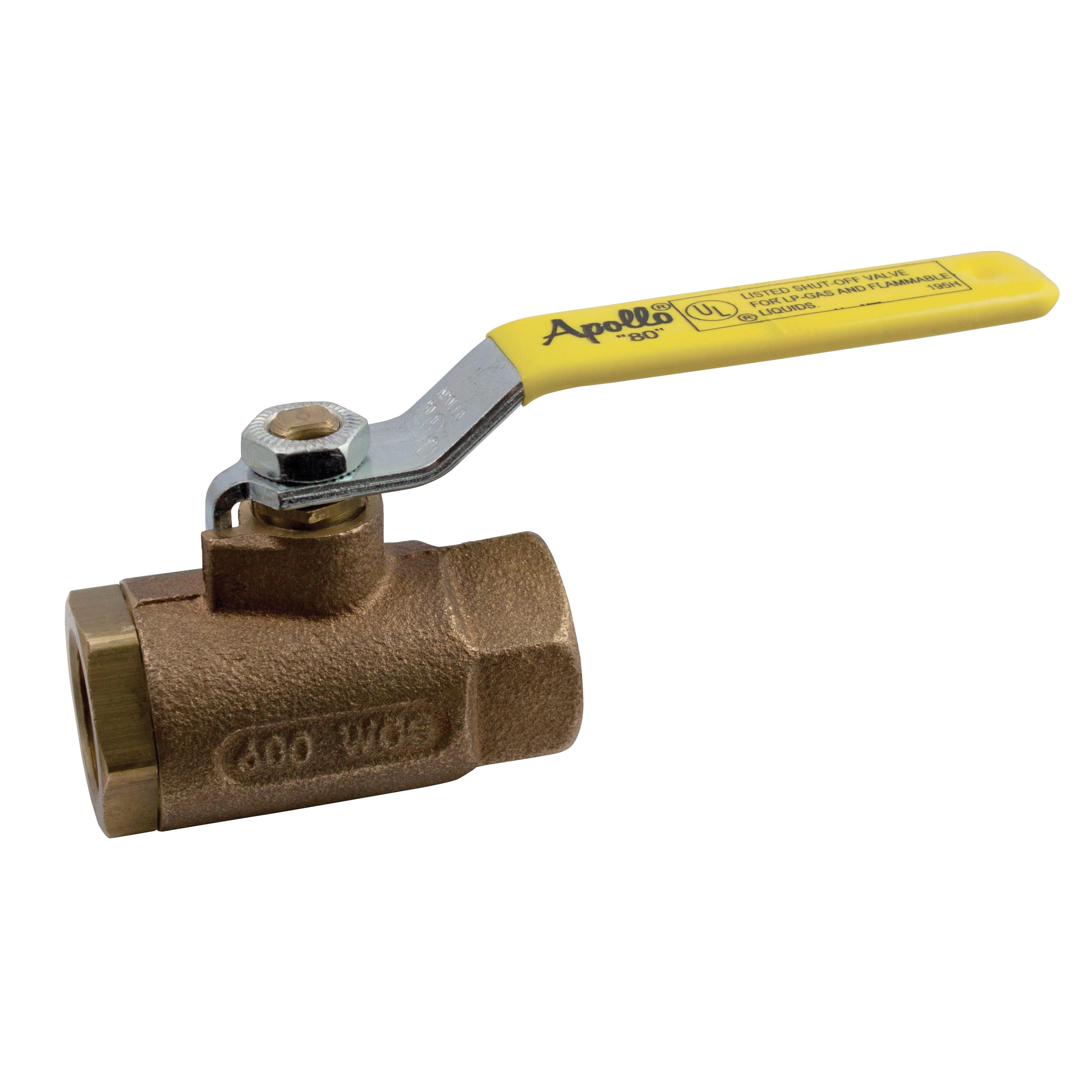

Apollo Valves 80-103 Shut-Off Ball Valve
Apollo® Valves 80-103 Shut-Off Ball Valve, 1/2 in Nominal, FNPT Connection, Bronze Body
Apollo® Valves 80-103 Shut-Off Ball Valve, 1/2 in Nominal, FNPT Connection, Bronze Body 80-103- Brand Name: Apollo® Valves
- Part Number: 80-103
- Check Stock
Add To Favorites ListApollo® Valves Shut-Off Ball Valve, 1/2 in Nominal, FNPT, 600 psi CWP, 150 psi SWP, 250 psi LP Gas, 1/2 in Opening, Handle Operator, ASTM B-16, ASTM B-584 C84400 Material, Bronze Body, RPTFE Seat, Brass Stem, RPTFE Seal, Chrome-Plated Brass Trim, RPTFE Packing, Zinc-Plated Steel, Vinyl Handle, 2-1/4 in L
| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| Dimensions | : | 2-1/4 in L |
| Handle Material | : | Zinc-Plated Steel, Vinyl |
| Material Standard | : | ASTM B-16, ASTM B-584 C84400 |
| Nominal Size | : | 1/2 in |
| Opening Size | : | 1/2 in |
| Operator Type | : | Handle |
| Packing Material | : | RPTFE |
| Pressure Rating | : | 600 psi CWP, 150 psi SWP, 250 psi LP Gas |
| Seal Material | : | RPTFE |
| Seat Material | : | RPTFE |
| Stem Material | : | Brass |
| Trim Material | : | Chrome-Plated Brass |
- Adjustable packing gland
- Blow-out proof stem
- Chromium-plated ball
- Vacuum service to 29 in Hg
- RPTFE stem bearing, brass retainer, gland nut, Zinc-plated steel lever nut
Instruction/Installation Manual
