Apollo® Valves 83L14363UL 83L14363UL

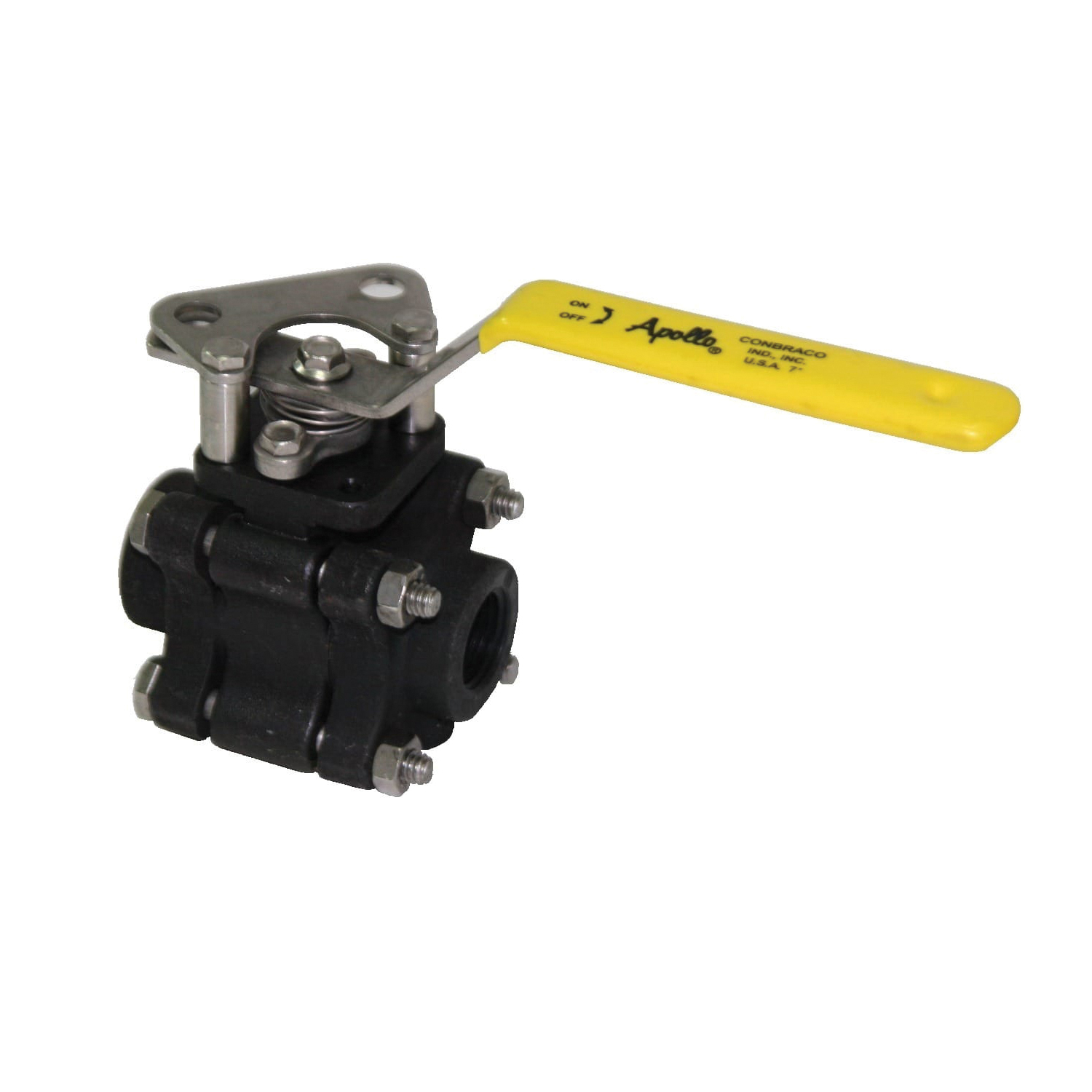

Apollo Valves 83L14363UL 3-Piece Low Temperature Ball Valve

Apollo® Valves 83L-140 Series 83L14363UL 3-Piece Low Temperature Ball Valve, 1/2 in, FNPT x Socket Weld, Carbon Steel

Apollo® Valves 83L-140 Series 83L14363UL 3-Piece Low Temperature Ball Valve, 1/2 in, FNPT x Socket Weld, Carbon Steel 83L14363UL

Apollo® Valves 3-Piece Low Temperature Ball Valve, Series: 83L-140 Series, 1/2 in Nominal, FNPT x Socket Weld Connection, Full Port, Standard, 250 psig, 600 lb Pressure Class, Compressed Air, Saturated Steam, Vacuum, Water Media, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 1/2 in Opening, 2 Positions, Lever Handle Operator, ASTM A352-LCC, A276 Material Standard, Carbon Steel Body, 316 Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, 300 Stainless Steel Handle, 316 Stainless Steel Ball, Black, -50 deg F, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Carbon Steel
Color      :      Black
Configuration      :      Standard
Connection Type      :      FNPT x Socket Weld
Domestic/Import      :      Domestic
Handle Material      :      300 Stainless Steel
Inlet to Outlet Length      :      2.8 in
Material Standard      :      ASTM A352-LCC, A276
Media      :      Compressed Air, Saturated Steam, Vacuum, Water
Nominal Size      :      1/2 in
Number of Positions      :      2
Opening Size      :      1/2 in
Operator Type      :      Lever Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Class      :      600 lb
Pressure Rating      :      250 psig
Series      :      83L-140 Series
Stem Material      :      316 Stainless Steel
Temperature Rating      :      -50 deg F
Top to Inlet Center      :      3.02 in
Trim Material      :      Stainless Steel
  • Stainless steel trim and hardware
  • Swing out center section
  • Pressure balanced solid ball
  • Compression controlled spiral wound gaskets
  • Anti-blowout one-piece bottom entry stem
  • Statically grounded ball, stem and body
  • Two-position locking device
  • Adjustable multi-piece PTFE V-style packing
  • Fully machined ISO 5211 mounting
  • Cast bosses on the center section and end caps for bleed and drain ports
  • Vacuum service to 29 inHg
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_83L143UL_Specification_Sheet.pdf
