Apollo® Valves 83L143UL 83L143UL

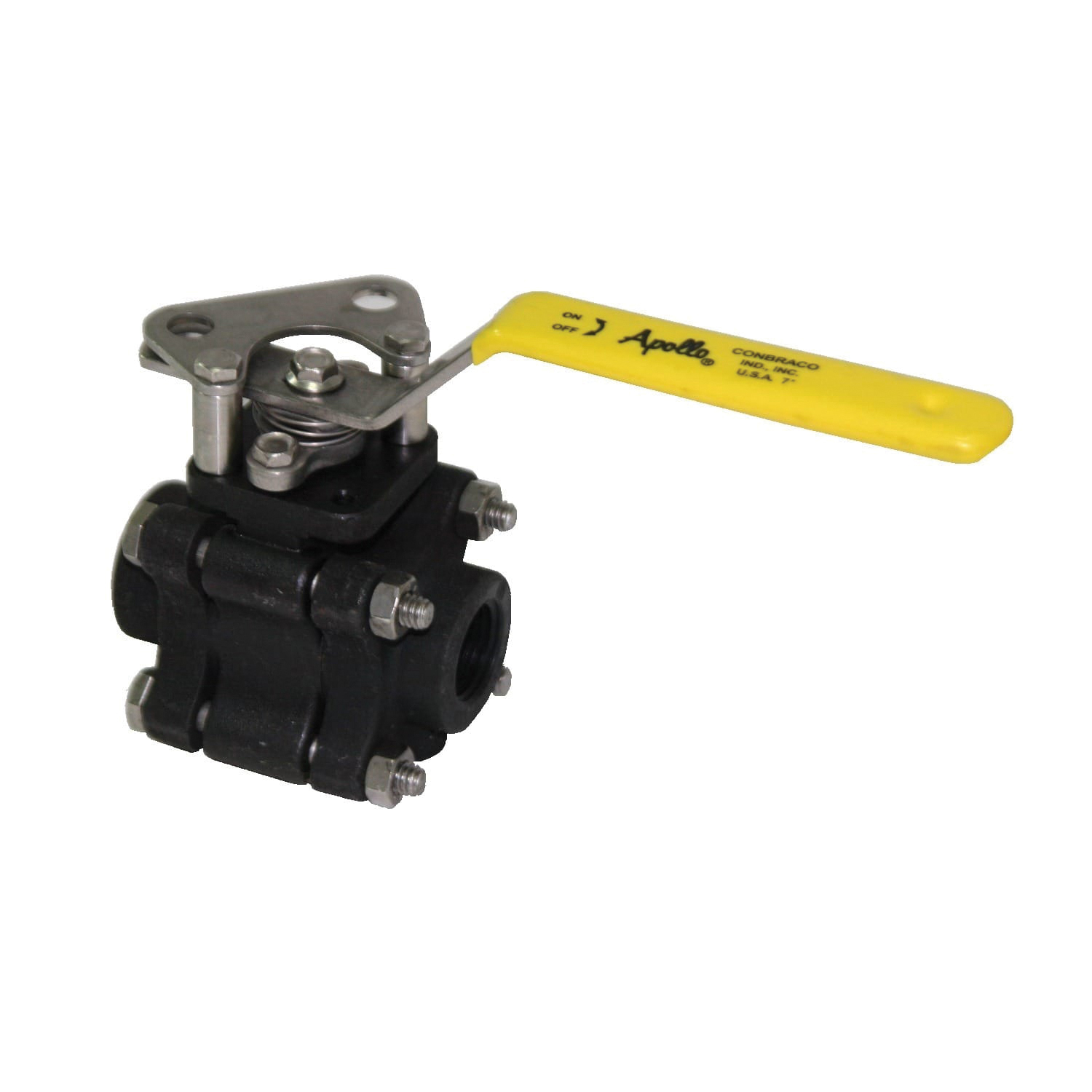

Apollo Valves 83L143UL 3-Piece Low Temperature Ball Valve

Apollo® Valves 83L-140 Series 83L143UL 3-Piece Low Temperature Ball Valve, 1/2 in, FNPT, Carbon Steel, 250 psig

Apollo® Valves 83L-140 Series 83L143UL 3-Piece Low Temperature Ball Valve, 1/2 in, FNPT, Carbon Steel, 250 psig 83L143UL

Apollo® Valves 3-Piece Low Temperature Ball Valve, Series: 83L-140 Series, 1/2 in Nominal, FNPT Connection, Full Port, 250 psig, 600 lb Pressure Class, Compressed Air, Saturated Steam, Vacuum, Water Media, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 1/2 in Opening, 2 Positions, Lever Handle Operator, ASTM A352-LCC, A276 Material Standard, Carbon Steel Body, 316 Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, 300 Stainless Steel Handle, 316 Stainless Steel Ball, Black, -50 deg F, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Carbon Steel
Color      :      Black
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Handle Material      :      300 Stainless Steel
Inlet to Outlet Length      :      2.8 in
Material Standard      :      ASTM A352-LCC, A276
Media      :      Compressed Air, Saturated Steam, Vacuum, Water
Nominal Size      :      1/2 in
Number of Positions      :      2
Opening Size      :      1/2 in
Operator Type      :      Lever Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Class      :      600 lb
Pressure Rating      :      250 psig
Series      :      83L-140 Series
Stem Material      :      316 Stainless Steel
Temperature Rating      :      -50 deg F
Top to Inlet Center      :      3.02 in
Trim Material      :      Stainless Steel
  • Stainless steel trim and hardware
  • Swing out center section
  • Pressure balanced solid ball
  • Compression controlled spiral wound gaskets
  • Anti-blowout one-piece bottom entry stem
  • Statically grounded ball, stem and body
  • Two-position locking device
  • Adjustable multi-piece PTFE V-style packing
  • Fully machined ISO 5211 mounting
  • Cast bosses on the center section and end caps for bleed and drain ports
  • Vacuum service to 29 inHg
