Apollo® Valves 86A-406-01 86A-406-01

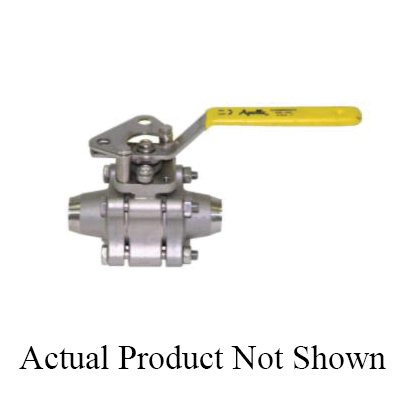

Apollo Valves 86A-406-01 3-Piece Ball Valve

Apollo® Valves 86A-400 Series 86A-406-01 3-Piece Ball Valve, 1-1/4 in Nominal, Butt Weld Connection

Apollo® Valves 86A-400 Series 86A-406-01 3-Piece Ball Valve, 1-1/4 in Nominal, Butt Weld Connection 86A-406-01

Apollo® Valves 3-Piece Ball Valve, Series: 86A-400 Series, 1-1/4 in Nominal, Butt Weld Connection, Full Port, Standard, 150 psig, 1500 psig, Gas, Water Media, Lever Actuator, 1-1/2 in Orifice, 5.48 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, 120 Cv Flow Coefficient (Cv), ASTM A276, ASTM A351-CF3M, ASTM A351-CF8M Material Standard, Stainless Steel Body, 316 Stainless Steel Stem, PTFE Packing, 300 Series Stainless Steel Handle, 316 Stainless Steel Ball, Domestic/Import: Domestic

Actuator Type      :      Lever
Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
Configuration      :      Standard
Connection Type      :      Butt Weld
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      120 Cv
Handle Material      :      300 Series Stainless Steel
Inlet to Outlet Length      :      5.48 in
Material Standard      :      ASTM A276, ASTM A351-CF3M, ASTM A351-CF8M
Media      :      Gas, Water
Nominal Size      :      1-1/4 in
Orifice Size      :      1-1/2 in
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      150 psig, 1500 psig
Series      :      86A-400 Series
Stem Material      :      316 Stainless Steel
Top to Inlet Center      :      4.7 in
  • Three-piece construction with enclosed fasteners
  • Stainless steel trim and hardware
  • Swing-out center section
  • Pressure balanced solid ball
  • Compression controlled spiral wound gaskets
  • Anti-blowout one-piece bottom entry stem
  • Two-position locking
  • Adjustable multi-piece PTFE "V" style packing
  • Fully machined ISO 5211 mounting
  • Cast bosses on the center section and end caps for bleed and drain ports
  • SCH 10
