Apollo® Valves 86B10170UL 86B10170UL

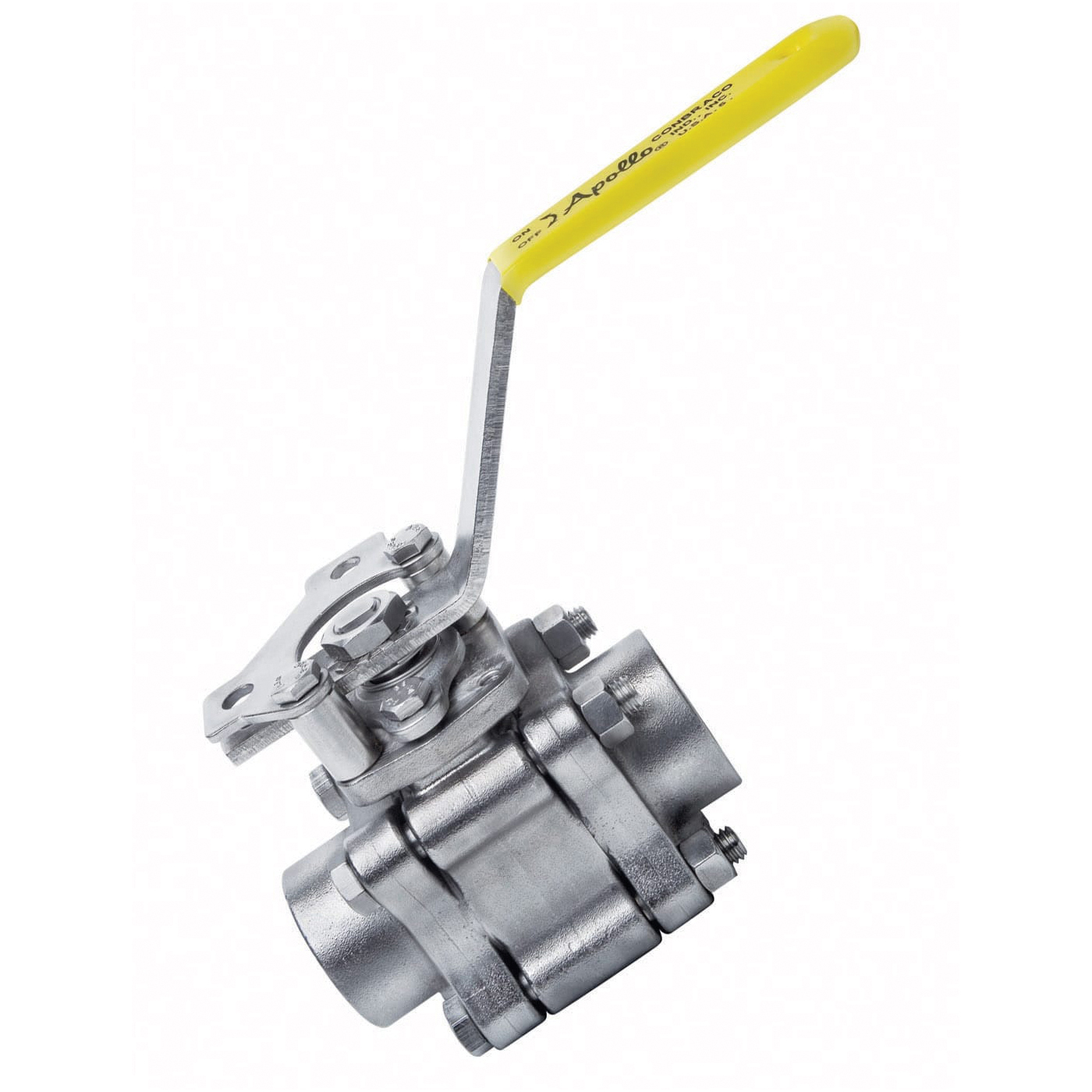

Apollo Valves 86B10170UL 3-Piece Ball Valve With 4 in Extended Bonnet

Apollo® Valves 86B-100 Series 86B10170UL 3-Piece Ball Valve With 4 in Extended Bonnet, 1/4 in, FNPT, Stainless Steel

Apollo® Valves 86B-100 Series 86B10170UL 3-Piece Ball Valve With 4 in Extended Bonnet, 1/4 in, FNPT, Stainless Steel 86B10170UL

Apollo® Valves 3-Piece Ball Valve, Series: 86B-100 Series, 1/4 in Nominal, FNPT Connection, Full Port, 250 psig, 600 lb Pressure Class, Compressed Air, Natural Gas, Saturated Steam, Vacuum, Water Media, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 0.37 in Opening, 2 Positions, Lever Handle Operator, 8.1 Cv Flow Coefficient (Cv), ASTM A351 CF8M, A276 Material Standard, Stainless Steel Body, 316 Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, 300 Stainless Steel Handle, 316 Stainless Steel Ball, PTFE Softgoods, Silver/Yellow, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
Color      :      Silver/Yellow
Connection Type      :      FNPT
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      8.1 Cv
Handle Material      :      300 Stainless Steel
Inlet to Outlet Length      :      2.8 in
Material Standard      :      ASTM A351 CF8M, A276
Media      :      Compressed Air, Natural Gas, Saturated Steam, Vacuum, Water
Nominal Size      :      1/4 in
Number of Positions      :      2
Opening Size      :      0.37 in
Operator Type      :      Lever Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Class      :      600 lb
Pressure Rating      :      250 psig
Series      :      86B-100 Series
Softgoods Material      :      PTFE
Stem Material      :      316 Stainless Steel
Top to Inlet Center      :      3.02 in
Trim Material      :      Stainless Steel
  • Stainless steel trim and hardware
  • Swing out center section
  • Pressure balanced solid ball
  • Compression controlled spiral wound gaskets
  • Anti-blowout one-piece bottom entry stem
  • Statically grounded ball, stem and body
  • Two-position locking device
  • Adjustable multi-piece PTFE V-style packing
  • Fully machined ISO 5211 mounting
  • Cast bosses on the center section and end caps for bleed and drain ports
  • Vacuum service to 29 inHg
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_86B10363UL_Specification_Sheet.pdf
