Apollo® Valves 87A-385-A0 87A-385-A0

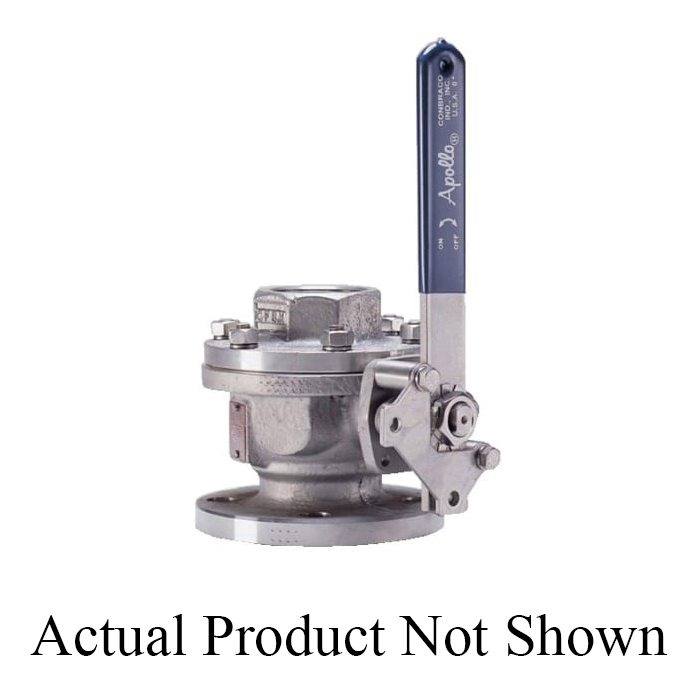

Apollo Valves 87A-385-A0 Ball Valve

Apollo® Valves 87A-380 Series 87A-385-A0 Ball Valve, 1 in Nominal, Flange x NPT Connection, 150 psig Pressure

Apollo® Valves 87A-380 Series 87A-385-A0 Ball Valve, 1 in Nominal, Flange x NPT Connection, 150 psig Pressure 87A-385-A0

Apollo® Valves Ball Valve, Series: 87A-380 Series, 1 in Nominal, Flange x NPT Connection, Full Port, 150 psig, 150 lb Pressure Class, Gas, Water Media, Lever Actuator, ASTM A351-CF8M, ASTM A276 CF8M Material Standard, 316 Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, Graphoil Seal, 316 Stainless Steel Handle, 316 Stainless Steel Ball, PTFE Softgoods, Lead-Free, Domestic/Import: Domestic

Actuator Type      :      Lever
Ball Material      :      316 Stainless Steel
Body Material      :      316 Stainless Steel
Connection Type      :      Flange x NPT
Domestic/Import      :      Domestic
Handle Material      :      316 Stainless Steel
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM A351-CF8M, ASTM A276 CF8M
Media      :      Gas, Water
Nominal Size      :      1 in
Port Type      :      Full
Pressure Class      :      150 lb
Pressure Rating      :      150 psig
Seal Material      :      Graphoil
Seat Material      :      RPTFE
Series      :      87A-380 Series
Softgoods Material      :      PTFE
Stem Material      :      316 Stainless Steel
  • Two-position locking device (valves 6 in FP, 8 in SP and smaller)
  • CHV style adjustable stem seals
  • Four-point ISO 5211 mounting pad bolt pattern
  • Slot vented ball for thermal expansion
  • Anti-static grounded ball and stem
  • Blowout-proof stem design
  • Cast boss for bleed/drain port
  • Made in USA
