Apollo® Valves 87A20001UL 87A20001UL

Apollo Valves 87A20001UL Ball Valve

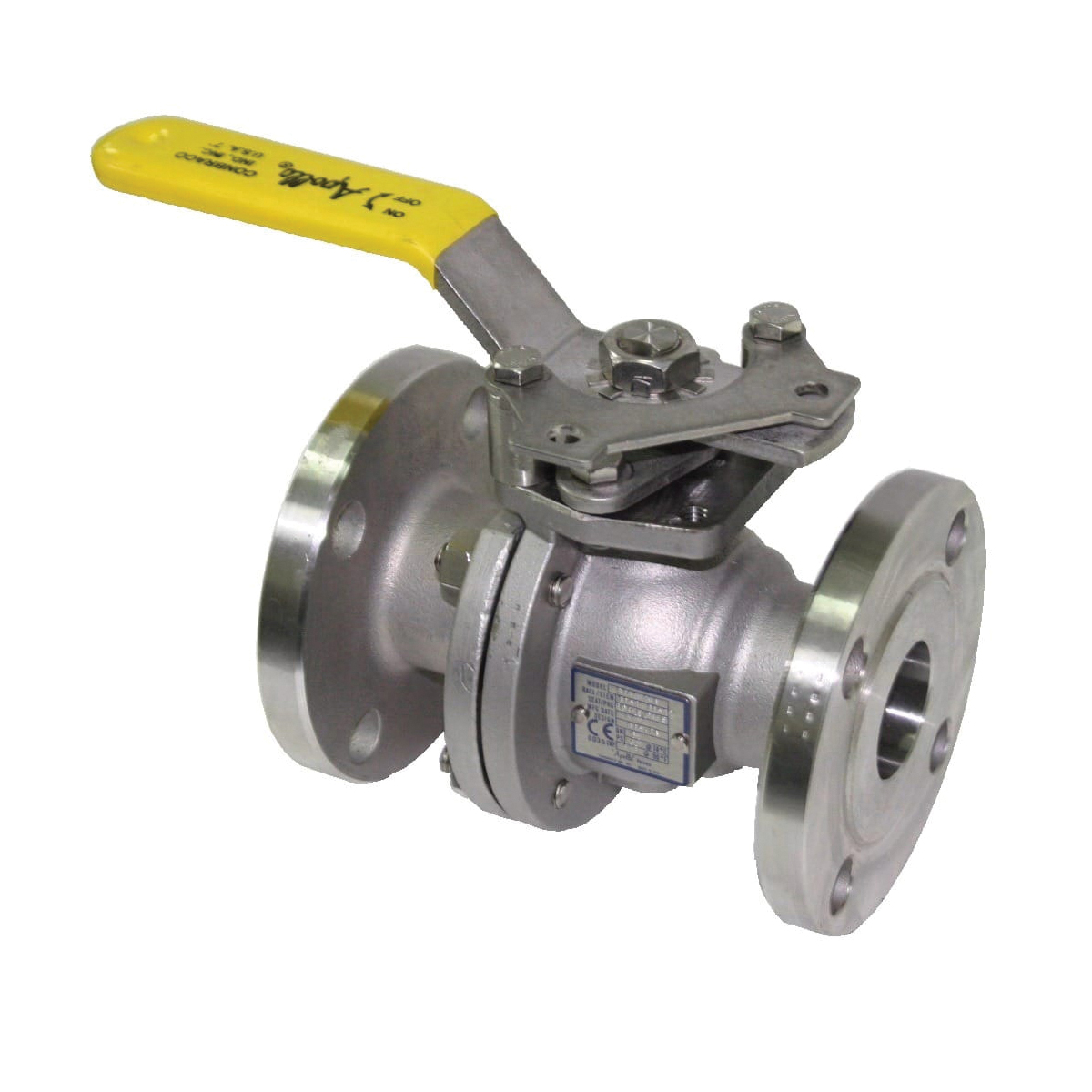

Apollo® Valves 87A-200 Series 87A20001UL Ball Valve, 3 in, Flanged, Stainless Steel, 150 psig

Apollo® Valves 87A-200 Series 87A20001UL Ball Valve, 3 in, Flanged, Stainless Steel, 150 psig 87A20001UL

Apollo® Valves Ball Valve, Series: 87A-200 Series, 3 in Nominal, Flanged Connection, Full Port, Standard, 150 psig, 150 lb Pressure Class, Compressed Air, Natural Gas, Saturated Steam, Vacuum, Water Media, 8 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, 3 in Opening, 2 Positions, Pipe Handle Operator, 1021 Cv Flow Coefficient (Cv), ASTM A351 CF8M, A276 Material Standard, Stainless Steel Body, TFM1700 Seat, 316 Stainless Steel Stem, RPTFE Seal, Stainless Steel Trim, Steel Handle, 316 Stainless Steel Ball, Silver/Yellow, Domestic/Import: Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
Color      :      Silver/Yellow
Configuration      :      Standard
Connection Type      :      Flanged
Domestic/Import      :      Domestic
Flow Coefficient (Cv)      :      1021 Cv
Handle Material      :      Steel
Inlet to Outlet Length      :      8 in
Material Standard      :      ASTM A351 CF8M, A276
Media      :      Compressed Air, Natural Gas, Saturated Steam, Vacuum, Water
Nominal Size      :      3 in
Number of Positions      :      2
Opening Size      :      3 in
Operator Type      :      Pipe Handle
Port Type      :      Full
Pressure Class      :      150 lb
Pressure Rating      :      150 psig
Seal Material      :      RPTFE
Seat Material      :      TFM1700
Series      :      87A-200 Series
Stem Material      :      316 Stainless Steel
Top to Inlet Center      :      8.8 in
Trim Material      :      Stainless Steel
  • Two-position locking device
  • Chevron-style adjustable stem seals
  • ISO 5211 mounting pad bolt pattern
  • Slot vented ball for thermal expansion
  • Anti-static grounded ball and stem
  • Blowout-proof stem design
  • Cast boss for bleed/drain port
  • Vacuum service to 29 inHg
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_87A20001UL_Specification_Sheet.pdf
