Apollo® Valves 89FVE4301 89FVE4301

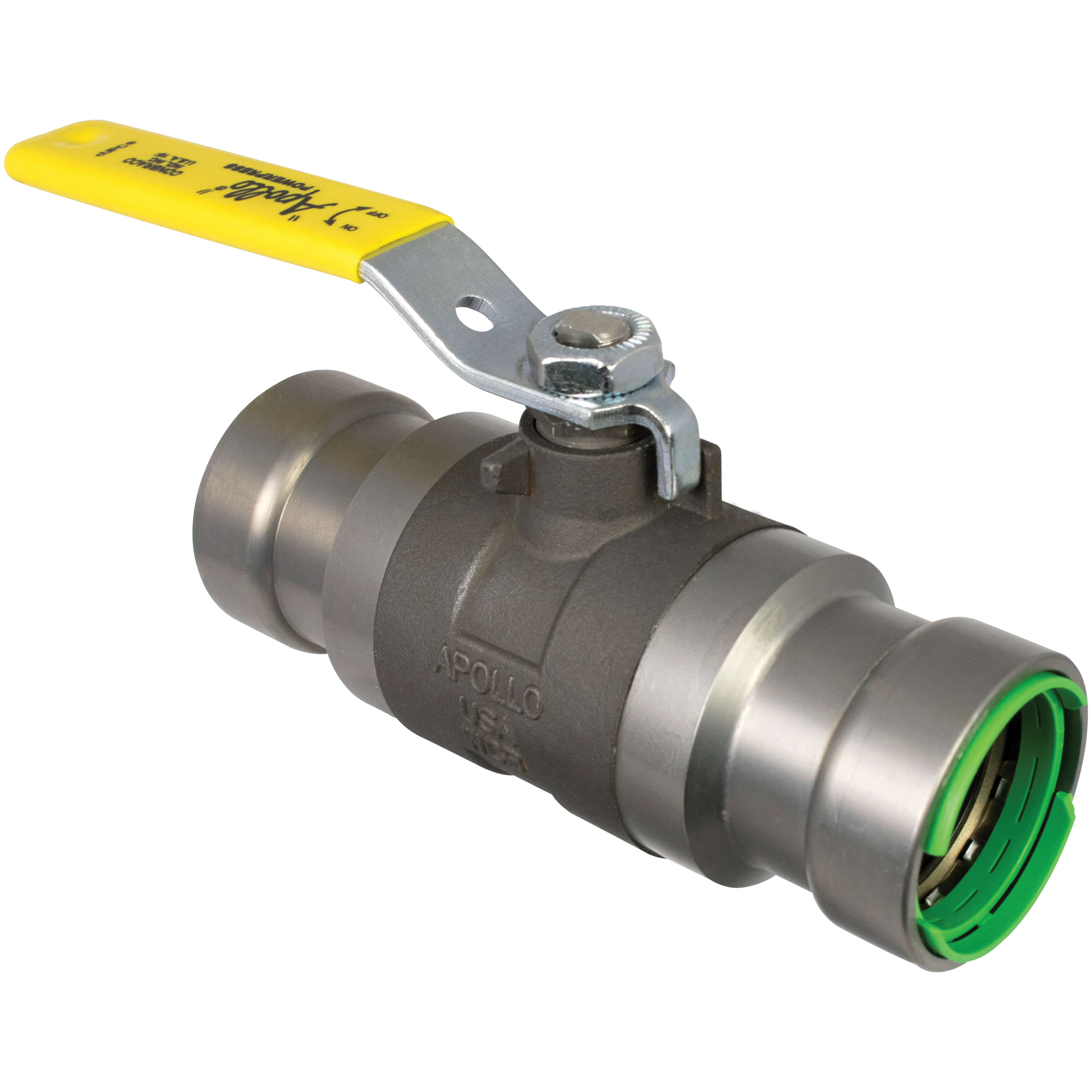

Apollo Valves 89FVE 89FVE4301 Standard Non-Gas Ball Valve

Apollo® Valves 89FVE 89FVE4301 Standard Non-Gas Ball Valve, 1/2 in Nominal, Press Connection, 200 psi Pressure

Apollo® Valves 89FVE 89FVE4301 Standard Non-Gas Ball Valve, 1/2 in Nominal, Press Connection, 200 psi Pressure 89FVE4301

The Apollo POWERPRESS® 89FV Ball valve is ideal for installation in chilled water, compressed air, hydronic heating and fire sprinkler applications. This valve design significantly reduces installation time and helps maintain a clean working environment. The Apollo POWERPRESS® is designed for steel pipe, SCH 10 to 40, as defined by ASTM A53, A106, A135 and A795 standards.
Apollo® Valves Standard Non-Gas Ball Valve, Series: 89FVE, 1/2 in Nominal, Connection Type: Press, Full-Port Port, 200 psi, Lever Handle Actuator, 4.16 in L Inlet to Outlet, 1.74 in Top to Inlet Center, Material Standard: ASTM A216-WCB, ASTM A276-316, ASTM A108-12L14, ASTM A108-1215, Carbon Steel Body, PTFE Seat, Stainless Steel Stem, PTFE Seal, PTFE Packing, Insulated Polyvinyl/Plated Steel Handle, Stainless Steel Ball, Zinc Nickel-Coated, -40 to 302 deg F, Domestic

Actuator Type      :      Lever Handle
Ball Material      :      Stainless Steel
Body Material      :      Carbon Steel
Connection Type      :      Press
Dimensions      :      0.5 in L
Domestic/Import      :      Domestic
Finish      :      Zinc Nickel-Coated
Handle Material      :      Insulated Polyvinyl/Plated Steel
Inlet to Outlet Length      :      4.16 in
Material Standard      :      ASTM A216-WCB, ASTM A276-316, ASTM A108-12L14, ASTM A108-1215
Nominal Size      :      1/2 in
Packing Material      :      PTFE
Port Type      :      Full-Port
Pressure Rating      :      200 psi
Seal Material      :      PTFE
Seat Material      :      PTFE
Series      :      89FVE
Softgoods Material      :      EPDM
Stem Material      :      Stainless Steel
Temperature Rating      :      -40 to 302 deg F
Top to Inlet Center      :      1.74 in
  • Patented visual control ring (green)
  • EPDM sealing element
  • Full-port flow
  • Adjustable stem packing
  • Fast, reliable, economical press installation
  • RIDGID® and Milwaukee press tool compatible
  • Leak Before Press® technology
  • Blowout-proof stem
  • Corrosion-resistant materials
  • 100% factory tested
  • Silicone-free assembly
