Apollo® Valves 94VLF-109-01A 94VLF-109-01A

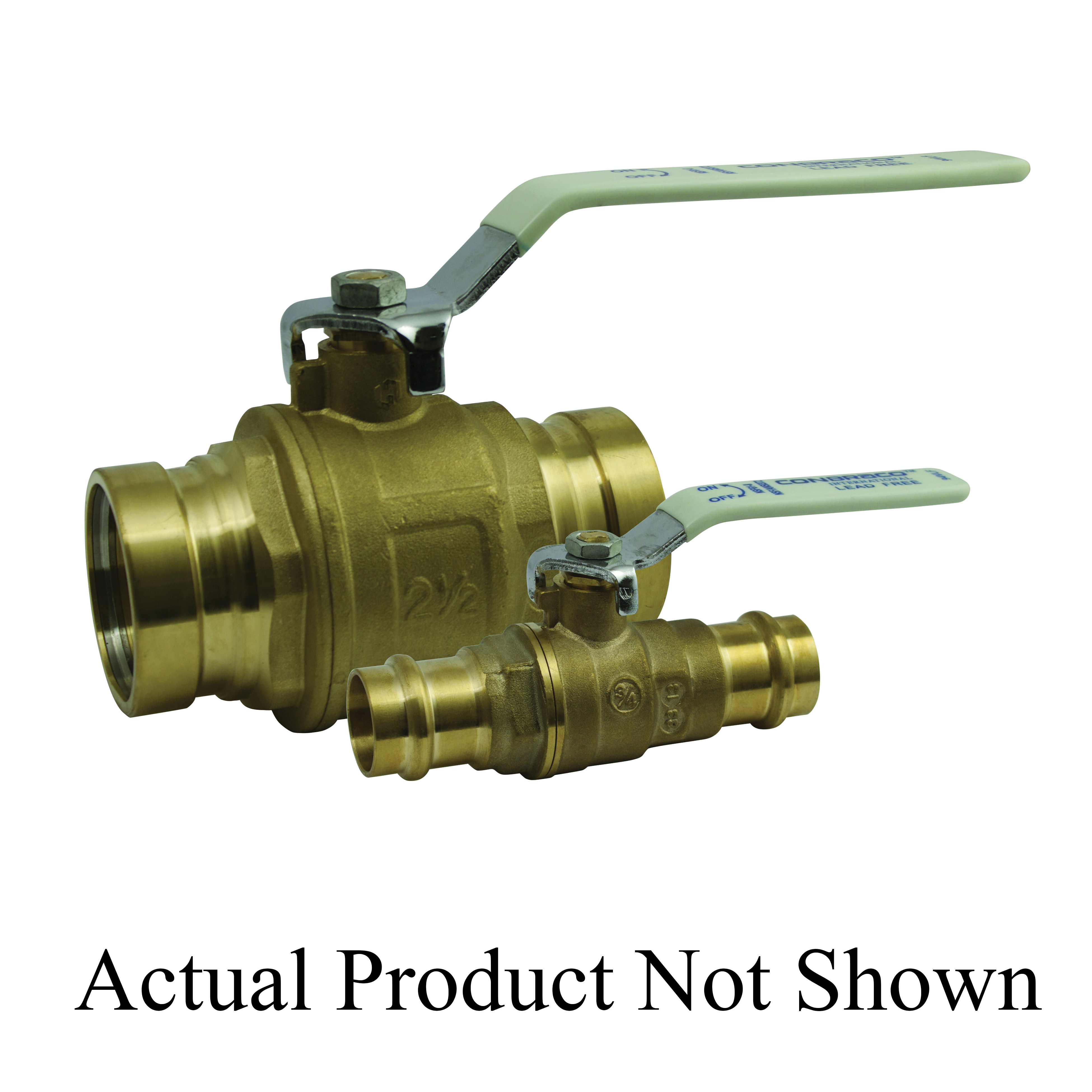

Apollo Valves 94VLF-109-01A 2-Piece Ball Valve

Apollo® Valves 94VLF-A Series 94VLF-109-01A 2-Piece Ball Valve, 2-1/2 in Nominal, Press Connection, 250 psig Pressure

Apollo® Valves 94VLF-A Series 94VLF-109-01A 2-Piece Ball Valve, 2-1/2 in Nominal, Press Connection, 250 psig Pressure 94VLF-109-01A

The AALBERTS IPS International™ 94VLF-A Series lead-free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water.
Apollo® Valves 2-Piece Ball Valve, Series: 94VLF-A Series, 2-1/2 in Nominal, Press Connection, Full Port, 250 psig, Water Media, 2.64 in Orifice, 6-1/2 in Inlet to Outlet Length, 4.61 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, EPDM Seal, PTFE Packing, Insulated Polyvinyl/Steel Handle, Brass Ball, Lead-Free, 0 to 250 deg F

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      Press
Handle Material      :      Insulated Polyvinyl/Steel
Inlet to Outlet Length      :      6-1/2 in
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      2-1/2 in
Orifice Size      :      2.64 in
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      250 psig
Seal Material      :      EPDM
Seat Material      :      PTFE
Series      :      94VLF-A Series
Stem Material      :      Brass
Temperature Rating      :      0 to 250 deg F
Top to Inlet Center      :      4.61 in
  • Adjustable stem packing
  • Leak Before Press® technology
  • Corrosion-resistant materials
  • 100% factory tested
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_94VLF_109_01A_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_94VLF_109_01A_Specification_Sheet.pdf
