ASCO 8264G009 8264G009

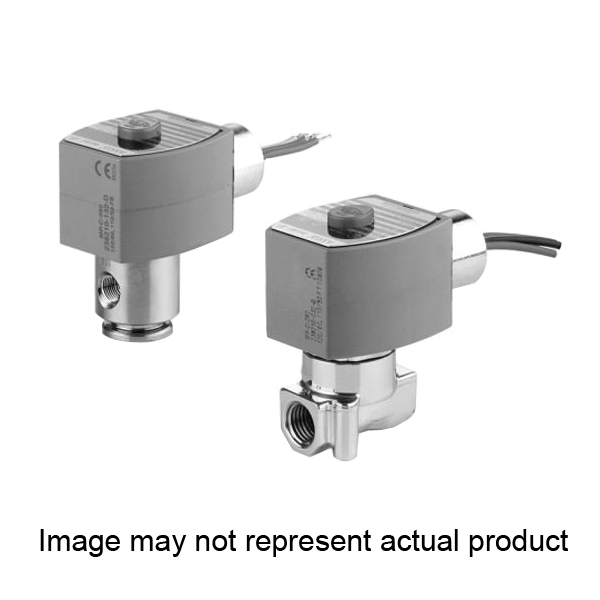

ASCO 264-S 8264G009 Pilot Solenoid Valve

Asco 264-S 8264G009 Pilot Solenoid Valve, 1/8 in Nominal, NPT Connection, 2-Ports/Ways, 0.05 cu-m/hr, Brass Body

Asco 264-S 8264G009 Pilot Solenoid Valve, 1/8 in Nominal, NPT Connection, 2-Ports/Ways, 0.05 cu-m/hr, Brass Body 8264G009

The ASCO 264-S Series are direct acting, pilot operated solenoid valves designed to control liquid CO2 fluids. The valves are ideal for cryogenic applications in analytical and diagnostic instruments.
ASCO Pilot Solenoid Valve, Series: 264-S, Nominal Size: 1/8 in, NPT Connection, Configuration: NC, 1000 psi Pressure, 0.05 cu-m/hr Flow Rate, Orifice Size: 3/64 in, Top to Inlet Center: 2.13 in, 120/110 VAC, Amperage Rating: 27 VA, 13.8 W Power, 50/60 Hz Frequency, Coil Insulation Class: FB, 2 Positions, Number of Ports/Ways: 2, Brass Body, Urethane Seat, Disc Material: Urethane, Softgoods Material: Copper/Stainless Steel, -75 to 120 deg F, 2.82 in H x 1.69 in W Dimensions

Amperage Rating      :      27 VA
Body Material      :      Brass
Coil Insulation Class      :      FB
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2.82 in H x 1.69 in W
Disc Material      :      Urethane
Flow Rate      :      0.05 cu-m/hr
Frequency Rating      :      50/60 Hz
Nominal Size      :      1/8 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      3/64 in
Power Rating      :      13.8 W
Pressure Rating      :      1000 psi
Seat Material      :      Urethane
Series      :      264-S
Softgoods Material      :      Copper/Stainless Steel
Temperature Rating      :      -75 to 120 deg F
Top to Inlet Center      :      2.13 in
Voltage Rating      :      120/110 VAC
  • Suitable for remount mounting or direct mounting to the refrigerated component by using the provided 4-hole bracket
  • Fluid temperature range from -75 to 120 deg F
  • Ambient temperature range AC construction -40 to 125 deg F, DC construction -40 to 104 deg F
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8264G009_Catalog.pdf
