ASCO 8030G083 8030G083

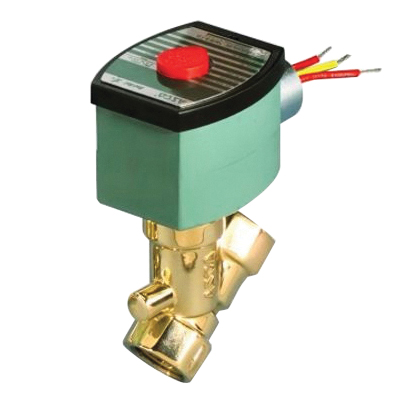

ASCO 8030G083 Low Pressure Direct Acting Solenoid Valve

Asco 8030 8030G083 Low Pressure Direct Acting Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Ports/Ways, 180 deg F

Asco 8030 8030G083 Low Pressure Direct Acting Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Ports/Ways, 180 deg F 8030G083

The ASCO 8030 Series is a direct acting low pressure solenoid valve with up to 15 psi (1 bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8 in thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shut-off applications. The normally open version is well suited for gas venting.
ASCO Low Pressure Direct Acting Solenoid Valve, Series: 8030, Nominal Size: 3/4 in, NPT Connection, Configuration: NO, 2 psi Pressure, 4.7 cu-m/hr Flow Rate, Media: Air, Fuel Gas, Inert Gas, Water, Orifice Size: 3/4 in, Inlet to Outlet Length: 2.81 in, Top to Inlet Center: 2.85 in, Coil Insulation Class: F, 2 Positions, Number of Ports/Ways: 2, Enclosure Type: NEMA 1/2/3/3S/4/4X, Brass Body, Stem Material: Polyamide, Seal Material: NBR, Disc Material: NBR, Softgoods Material: Copper/Stainless Steel, 180 deg F, 3.97 in H Dimensions

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      3.97 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1/2/3/3S/4/4X
Flow Rate      :      4.7 cu-m/hr
Inlet to Outlet Length      :      2.81 in
Media      :      Air, Fuel Gas, Inert Gas, Water
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      3/4 in
Pressure Rating      :      2 psi
Seal Material      :      NBR
Series      :      8030
Softgoods Material      :      Copper/Stainless Steel
Stem Material      :      Polyamide
Temperature Rating      :      180 deg F
Top to Inlet Center      :      2.85 in
  • Gas vent model has two way normally open operation
  • Most constructions mountable in any position for convenient installation
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8030G071_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8030G071_Instruction_Installation_Manual.pdf
