ASCO 8030G13-120V 8030G13-120V

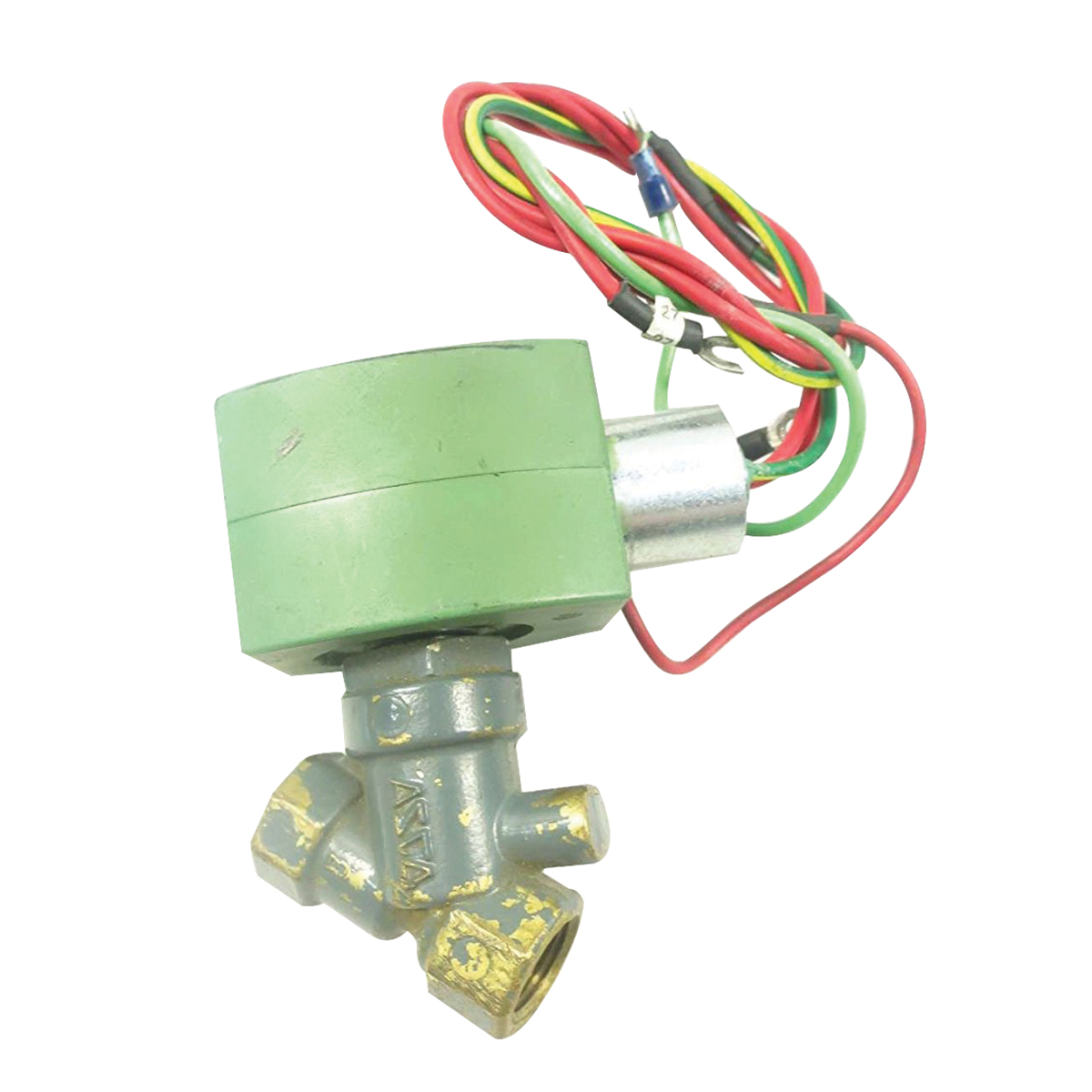

ASCO 8030G13-120V Solenoid Valve

Asco RedHat 8030G13-120V Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8030G13-120V Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8030G13-120V

Asco RedHat Solenoid Valve, 3/8 in Nominal, NPT, NC, AC: 0-15 psi Air-Inert Gas and Water Differential, DC: 0-3.5 psi Air-Inert Gas and Water Differential, 3/8 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR Seal, NBR Disc, 180 deg F AC, 150 deg F DC Fluid, 1.91 in L x 1.95 in W x 4 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      1.91 in L x 1.95 in W x 4 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      3/8 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      3/8 in
Pressure Rating      :      AC: 0-15 psi Air-Inert Gas and Water Differential, DC: 0-3.5 psi Air-Inert Gas and Water Differential
Seal Material      :      NBR
Temperature Rating      :      180 deg F AC, 150 deg F DC Fluid
  • Operate at low pressures no minimum required, up to 15 psi maximum differential
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 70 V-A inrush power rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8030G13_120V_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8030G13_120V_Specification_Sheet.pdf
