ASCO 8040H8 8040H8

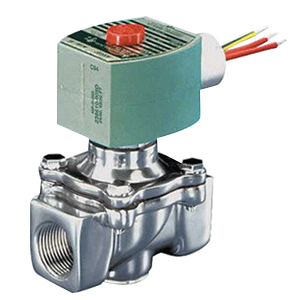

ASCO 8040H8 Solenoid Valve

Asco 8040H8 Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 125 deg F AC Fluid

Asco 8040H8 Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 125 deg F AC Fluid 8040H8

Asco Solenoid Valve, 3/8 in Nominal, NPT, NC, 0 to 15 psi Air to Fuel Gas AC Differential, 5/16 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Aluminum Body, NBR Seal, NBR Disc, 125 deg F AC Fluid, 2 in L x 1.69 in W

Body Material      :      Aluminum
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2 in L x 1.69 in W
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      3/8 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      5/16 in
Pressure Rating      :      0 to 15 psi Air to Fuel Gas AC Differential
Seal Material      :      NBR
Temperature Rating      :      125 deg F AC Fluid
  • Lightweight, low-cost valves for air service
  • Provides high-flow, Cv up to 138
  • NBR diaphragm
  • CA core guide
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel spring
  • PTFE rider rings
  • Copper shading coil
  • Fluid is shut-off when the coil is de-energized, flows through the valve when the coil is energized
  • Valves may be mounted in any position
  • 6.1 W, 16 V-A holding, 40 V-A inrush power rating
  • 115 V voltage rating
